2835 SMD LED with 440-445nm Wavelength 0.5W
11 month agoWhat is the wavelength of blue light from LED lights?
It's a wide wavelength range for blue light, which is from 420 nanometers to 495 nanometers. That means every LED light that have wavelength in this range can all be name as blue SMD LED or blue through-hole LED. But if we just got single name, that will not be easy to pick the color as what we need. Wide range of blue LED will have different lighting color of blue, such as ice blue, deep blue, royal blue, water blue ect. 2016UVC44D6L30 is a royal blue that we wavelength 440 nanometer to 445 nanometer. Compare with 0.5W 460nm Blue LED, this 440nm LED might not as bright as 460nm LED. But the brightness can also reach 6lm when it's working on 150mA current.
Electrical Parameters:
Parameter |
Symbol |
Min |
Type |
Max |
Unit |
Test Condition |
Forward Voltage |
VF |
2.8 |
- |
3.4 |
V |
IF=150mA |
Luminous Flux |
IV |
5 |
- |
6 |
LM |
IF=150mA |
Dominant Wavelength |
DW |
440 445 |
nm |
IF=150mA |
||
Viewing Half Angle |
2θ1/2 |
|
120 |
|
deg |
IF=150mA |
Reverse Current |
IR |
|
|
5 |
uA |
VR=5V |
*Luminous intensity is measured by ZWL600.
*λD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

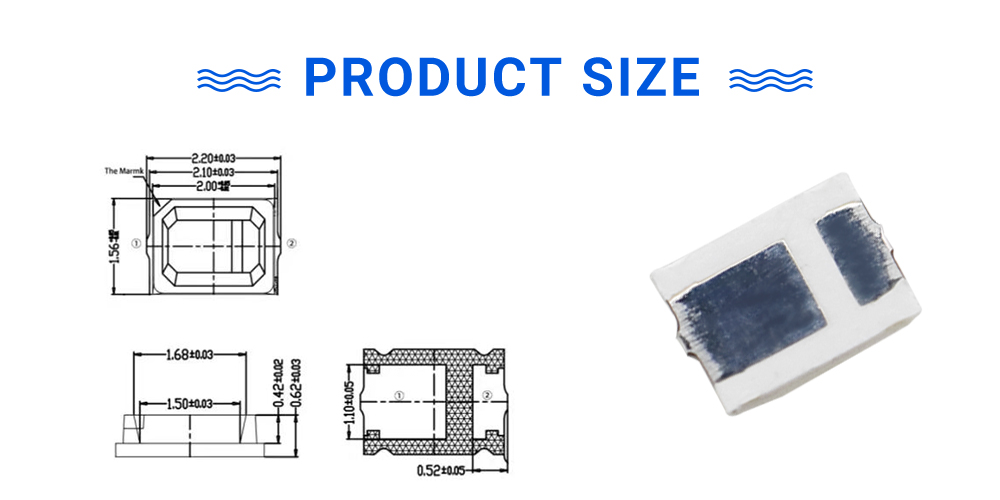

Demension of SMD LED 2016;
*UV LED, Red SMD LED, Yellow LED, Blue SMD LED are all available in this 2016 SMD LED size.*
Product Details:
99.99% purity gold wire;
Silver plated LED frame;
Famous branded chips;
High quality epoxy;
