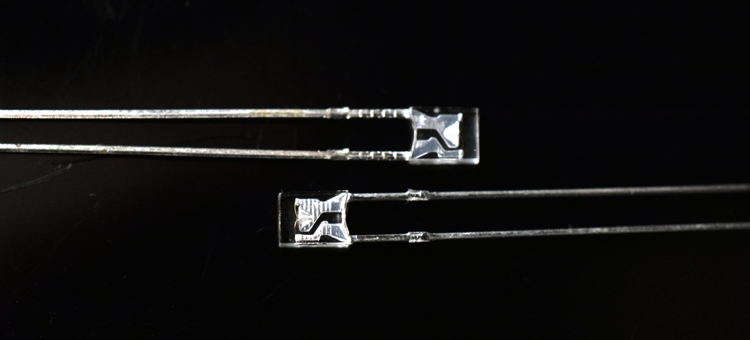

2x3x4 rectangle 590nm LED Amber LED Clear Lens

3 year ago

52 0 

Shenzhen Best LED Opto-electronic Co.,Ltd / BESTSMD CO LIMITED(HK)

8 year

Product details

For the yellow LED(with SMD LED yellow LED type or yellow through-hole LED type), normally, we packaged it with the LED bare die that wavelength at range of 587-595nm. But sometime we just need some special LED color such as: green-yellow LED, ultra bright 570nm LED, lemon color LED ect. Our engineer found inspiration in the white LED --- phosphor powder. As we know, most of white LED was package with blue LED b..are die and emitted by refraction of phosphor power. Engineer can control the color by control how many phosphor to cover the bare die, so that we can also use the blue chip to produce the yellow LED, which can make the yellow LED got a brighter brightness and make the color more special. Do you need some special color yellow LED for your project? Contact us now!

Yellow LED - 234 LED

-Dimension Parameters -

234 leD

*1. All dimensions are in millimeters ; 2. Tolerance is ± 0.20 mm unless otherwise noted.

These case are also available for Blue Through-hole LED, Red Through-hole LED, UV LED, IR LED, Amber LED, Yellow LED etc.

- Emitting Color -

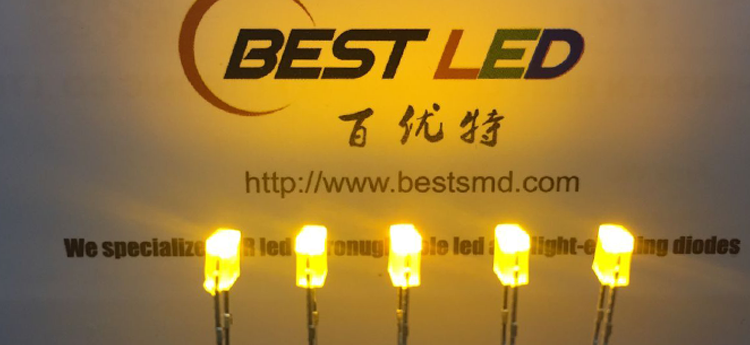

*Colors in the photo was took by camera, please take actual emitting color as standard.

- Electrical Parameters -

Absolute Maximum Ratings At Ta=25℃

Parameter

Symbol

Rating

Power Dissipation	Pd	100mW
Pulse Forward Current	IFP	100mA
Forward Current	IF	60mA
Reverse Voltage	VR	5V
Junction Temperature	Tj	100°C
Operating Tempertature	Topr	-40 - +80°C
Storage Tempertature	Tstg	-40 - +100°C
Soldering Temperature	Tsol	260°C
Electro-Static-Discharge(HBM)	ESD	2000v
Warranty	Time	5Years
Antistatic bag	Piece	1000pcs

*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.

*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Optical and Electrical Characteristics( Tc=25℃)

Parameter

Symbol

Min

Typ

Max

Unit

Test Condition

Forward Voltage	VF	1.8	2.1	2.4	V	IF=20mA
Luminous Intensity	IV	800		1100	mcd	IF=20mA
Peak Wavelength	λP		592		nm	IF=20mA
Dominant Wavelength	λD	587	590	594	nm	IF=20mA
Half Width	Dl		18		nm	IF=20mA
Viewing Half Angle	2q1/2		±60		deg	IF=20mA
Reverse Current	IR			5	uA	VR=5V
Rise Time	Tr		10		ns	IF=20mA
Fall Time	Tf		10		ns	IF=20mA

*Luminous Intensity is measured by ZWL600.

*q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.

*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

- Golden Wire Connection -

*In order to keep every one of LED's long lifespan, BestLED factory use high pure gold wire for inside circuit connection

- Packing -

*We package this LED with 1000pcs in a bag Normally. We also can package it as your requirement.
