5-60W Emergency Drive For Panel Lights
3 year ago

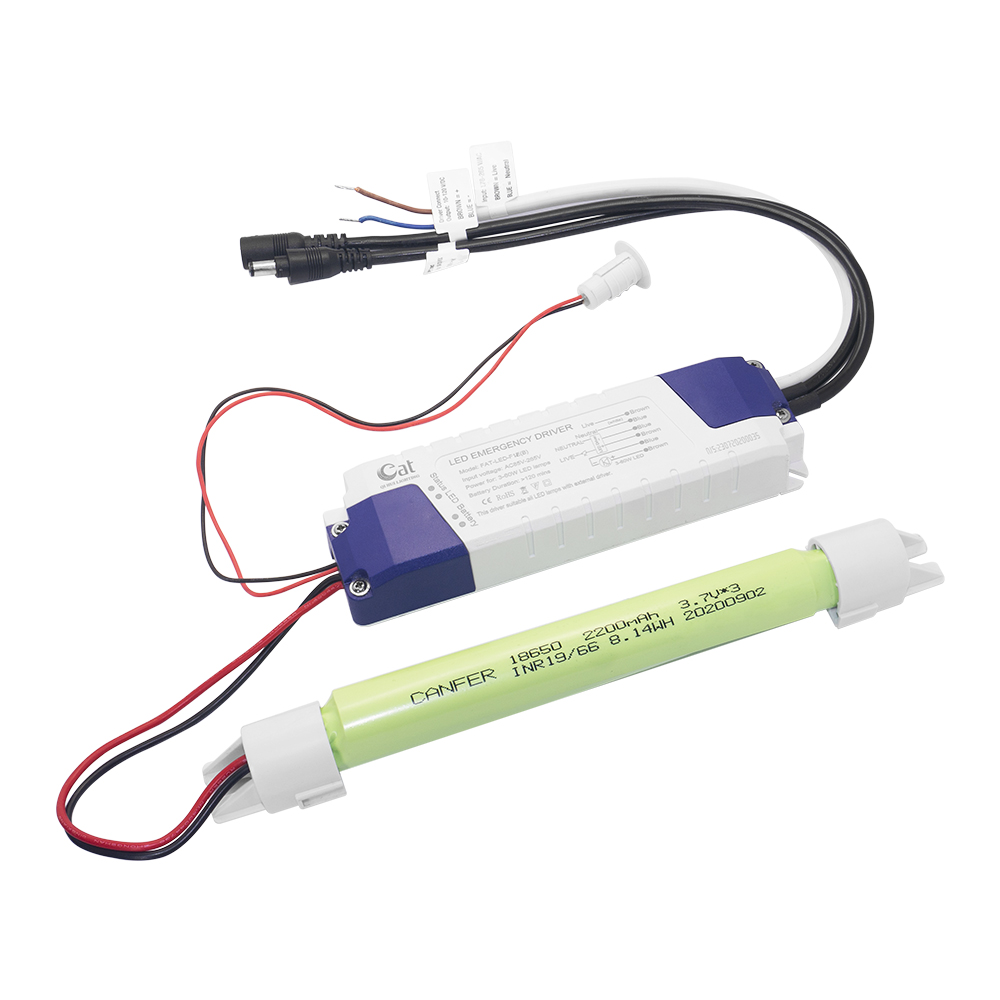

5-60W LED Emergency Lighting Power with Self Test for LED panel light, down light Emergency Light Conversion Kit
|
Model |
FAT-LED-F1E B |
Material |
ABS+PCB+Battery pack |
|
Power |
5-60W, 80W max. |
Emergency Power |
6-10W |
|
Charge Time |
24 Hours |
Emergency Time |
180mins (Can be custom-made) |
|
Battery |
Lithium battery 11.1V 2000mAh |
Input Voltage |
AC85V-265V 50/60Hz |
|
AC Protection |
1A 250V |
DC Protection |
5A 250V |
|
Battery cycle time |
>500 times |
Working Temperature |
0℃—55℃ |
|
IP Rank |
IP30 |
Luminous Flux |
>1000lm |
|
Certification |
CB |
Dimension |
Housing: 160 x 42 x 22 mm Battery: L200 x φ18 mm |
|
Type of Lamp |
all 5-60W LED light with internal or external Led Inverter |
||
LED Panel emergency driver with external test button and led indicator.
- Monthly self-testing and annual self-testing.
- Can customize different emergency time.
LED Panel emergency driver with external test button and led indicator.
- Integrated type.
- Standard 90mins Led Power Converter.
LED Panel emergency driver with integrated test button and led indicator.
- Integrated type.
- Standard 90mins Led Emergency Battery Driver.
Wiring Diagram
Emergency Power Supply for 5-30W LED light with internal or external driver: FAT-LED-F1E A
Our Services:
● Free design, free sample.
● 2-5 days delivery for urgent orders.
● Custom logo, custom color box.
Battery and light source Emergency Pack Module
Note: The positive and negative of battery should not be connected reverse, and we should avoid directly short-circuit the battery. Explosion will be caused if using unmatched battery. Please abide by local rules when discarding old battery.
Warning: As the inner PCB includes 220V/50HZ high voltage, so it must be unloaded/opened ONLY by professional technician.
Test button
- Can test if emergency driver working properly during regualar inspection.
Indicator Light
- Red indicator: charging status
- Blue indicator: emergency status
- Green indicator: main power status
|
Problems |
Analysis |
Solution |
|
Green Light not working
|
Something wrong with the led driver |
Checking the led driver |
|
Green light is broken or the circuit is disconnected |
Checking circuit or changing green light |
|
|
Red light is off
|
Not being charged |
Checking the charging circuit or battery |
|
Red light is broken or the circuit is disconnected |
Checking circuit or changing red light |
|
|
Battery is full charged |
Disconnecting the main power supply, make the led lights work in emergency status for 30 minutes, make the led light return to work in main power status again |
|
|
Blue light is off
|
The battery is open circuit |
Checking the battery |
|
Light source is open circuit or short circuit |
Ensuring light source is connected correctly |
|
|
PCB is broken |
Checking the Maintaining the circuit board |
Certification
With Certificate of design patent and utility model patent. CE RoHS CB approved.
