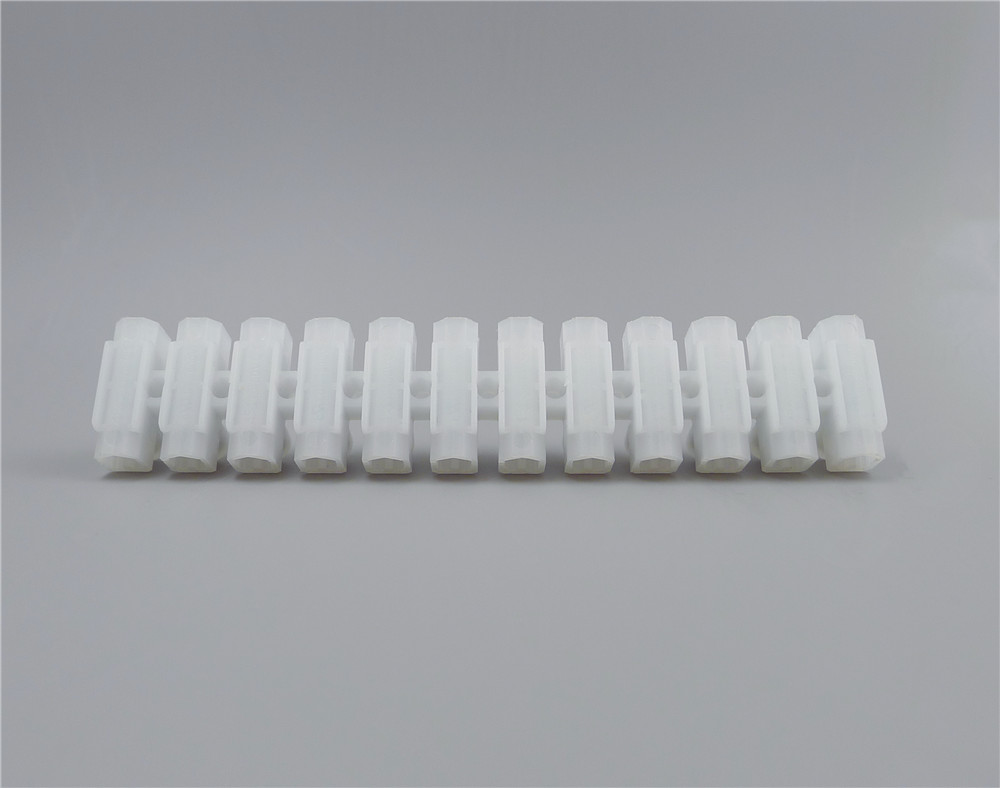

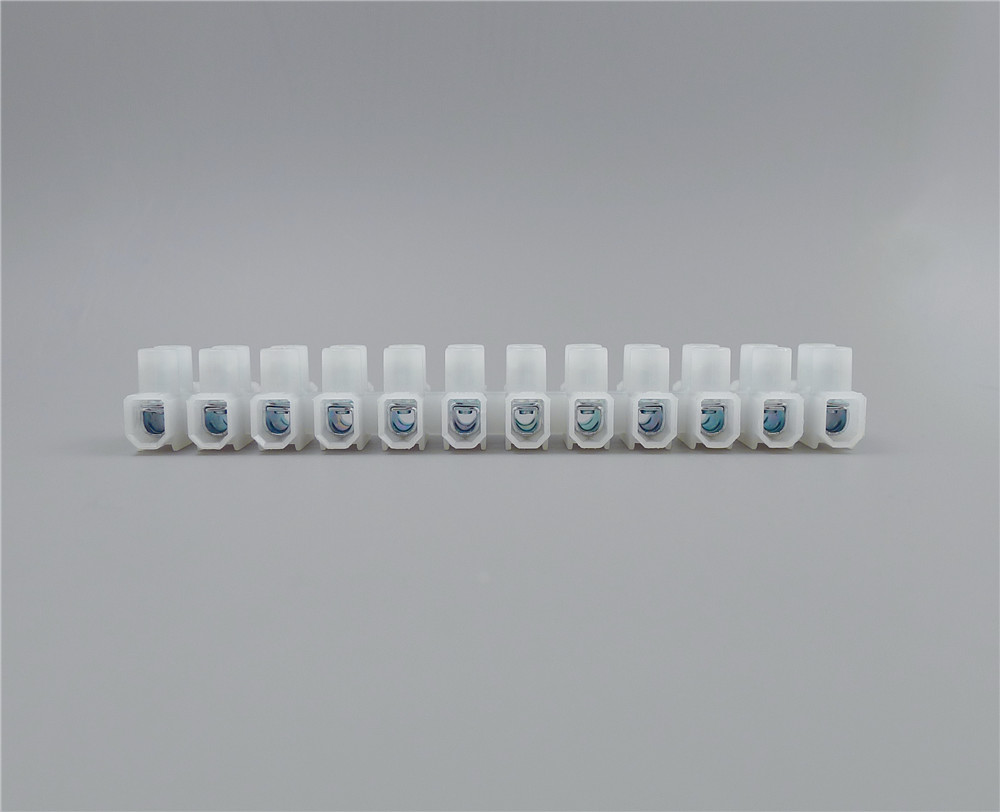

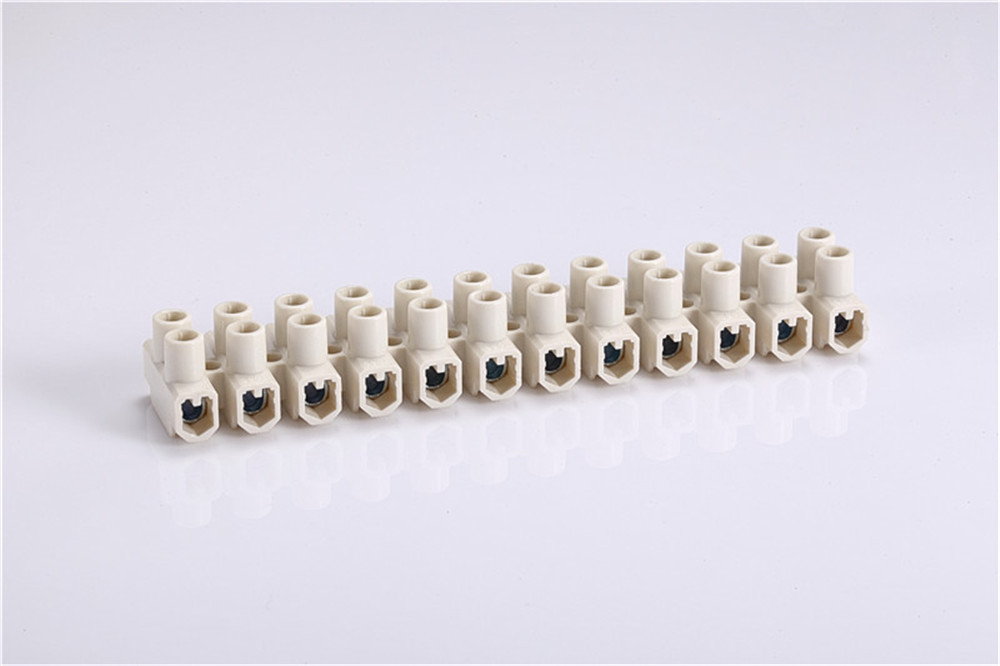

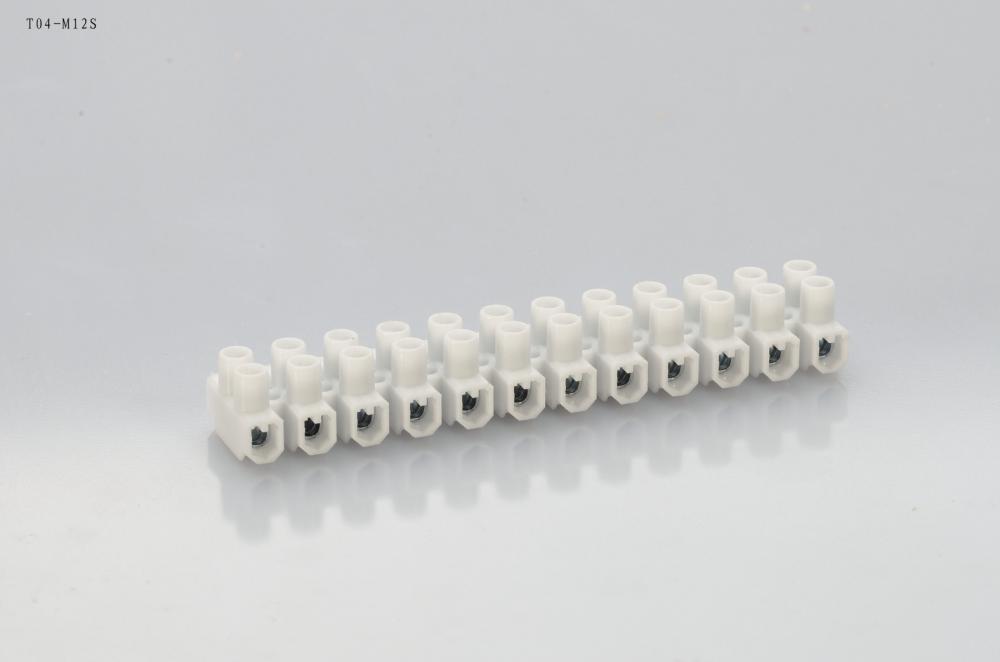

BELEKS T04 series terminal connectors are 12 position terminal blocks made of PA66 material. The terminal is an important accessory product for electrical connection, from the system, subsystem, cabinet, combination to each of the individual units that can be replaced, it's responsible for power transmission and signal control and transmission. So it determines the application of the terminal everywhere, as long as the need for wiring where there will be terminals. Because of the importance of terminals, they must meet the relevant safety and environmental standards.

Product Parameters

Item No.		T04-M12
Electrical Data
		IEC/EN	UL
Rated Voltage (V)		450	300
Rated Current (A)		24	FW1: 20
			FW2: 15
Ambient Temperature	Polyamide 66	T110	105℃

Connection Data
		IEC/EN	UL
Cross Section	Solid conductor	0.5-2.5mm²	AWG 14-20
	Stranded conductor	0.5-2.5mm²	AWG 14-20
	Flexible conductor	0.5-2.5mm²	-
Strip length (mm)		7
Means of connection		screw fixed
Screw		M2.6
Rewirable		√
Number of terminals		multiway
Number of connection points		1-12
Means of Fixing
screw fixed
Materials
Insulation Materials	Designation	Polyamide 66
	Flammability class	UL 94V-2	UL 94V-0
Clamping Unit		brass, stainless steel (wire protector)
Compatible Products
Junction boxes		405, TB-01
Packing Quantity (pcs/carton)
500

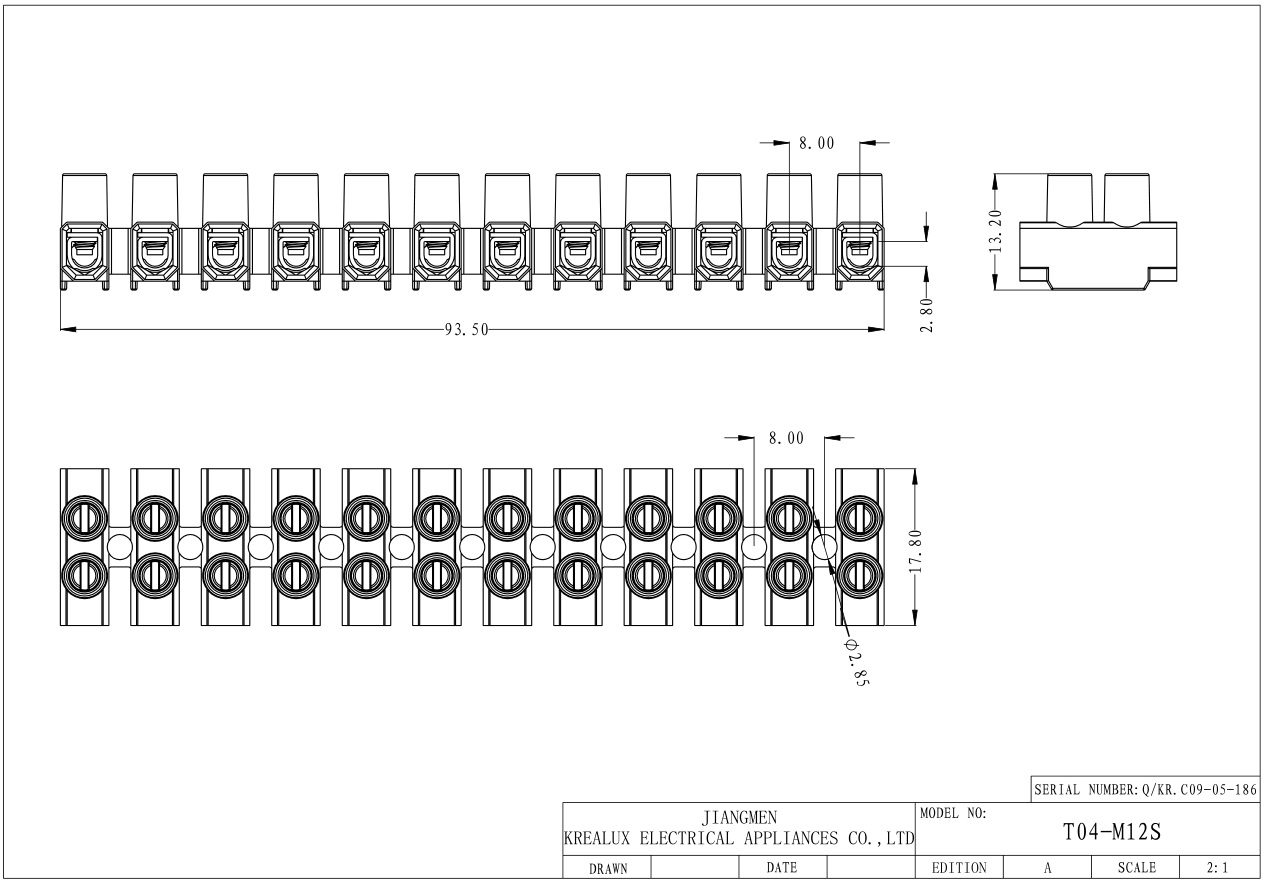

Drawing Beleks UL94V-2 Terminal Blocks
