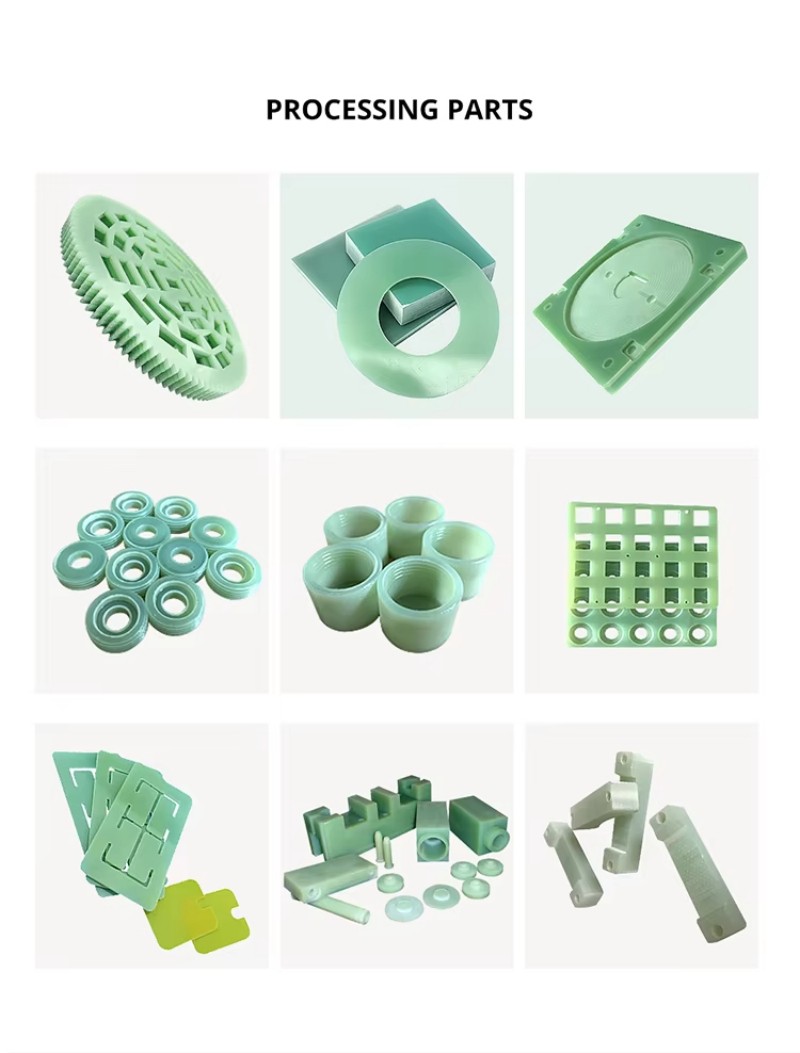

FR4 processing parts

2 week ago

0 0 

5 year

Product details

G-11 High Temperature Epoxy Glass Cloth Sheet is a high performance insulating material that excels in standard test conditions at 150 degrees Celsius with good insulation resistance properties. The material maintains excellent electrical and mechanical properties at room temperature of 180 degrees Celsius, demonstrating a high degree of stability.

In contrast, ordinary insulating materials tend to deteriorate significantly when exposed to high temperatures for extended periods of time. High temperatures cause the electrical properties of ordinary insulating materials to decay, mechanical strength to weaken, and even aging, cracking or decomposition may occur, thus losing their insulating function. G-11 high-temperature resistant epoxy glass cloth board effectively avoids these problems, and is able to maintain stable performance over a wider temperature range, providing reliable protection for electrical equipment in various high-temperature environments.

This feature makes G-11 high-temperature resistant epoxy glass fabric sheet widely used in many industrial applications, including but not limited to power transmission systems, aerospace equipment, automotive electronics systems, and industrial control devices in high-temperature environments. In these areas, G-11 has become an indispensable key material with its excellent heat resistance and stable electrical properties.

In addition, G-11 high-temperature resistant epoxy glass cloth sheet has excellent chemical resistance and is able to remain stable in a variety of corrosive environments, further enhancing its applicability in complex industrial environments. The superior performance of this material makes it ideal for industrial applications that seek reliability and stability.

Comparative analysis of epoxy board G10 and G11

1.Comparison of composition

The composition of G10 epoxy board: It is made of imported electronic grade alkali-free glass fiber cloth impregnated with imported epoxy resin and added with corresponding imported flame retardant, adhesive and other additives, and processed by hot pressing.

G11 epoxy board composition: by imported electronic grade alkali-free glass fiber cloth impregnated with imported epoxy resin, and add the corresponding imported flame retardants, adhesives and other additives, by hot pressing and processing of cardboard-like insulating materials.

2.Comparison of performance

Performance of G10 epoxy board: flame retardant grade UL94-VO level, good mechanical properties at high temperature, good processing performance and insulation properties.

Performance of G11 epoxy board: same as G10 epoxy board.

3. Comparison of applications

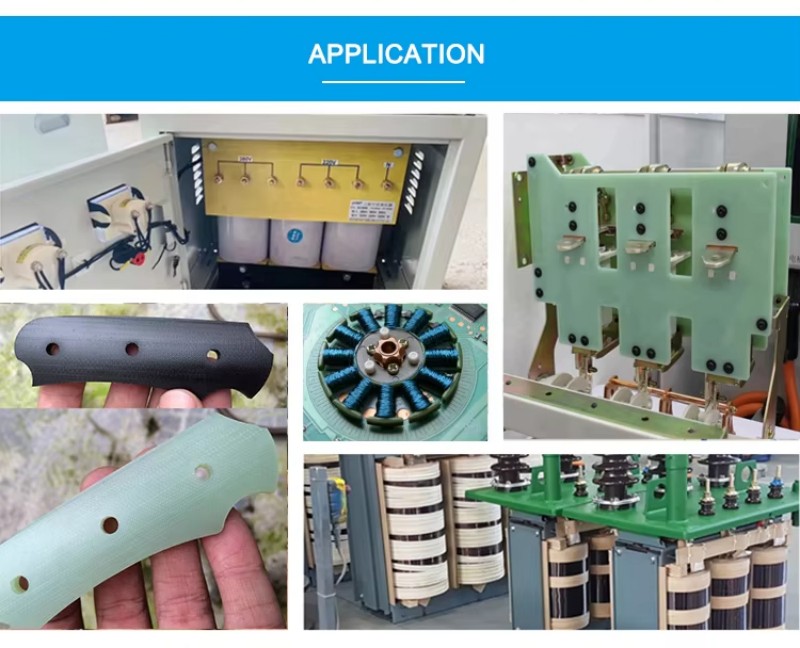

G10 epoxy board application: motor, electrical equipment for insulation structure, such as circuit breakers, switchgear, transformers, DC motors, AC contactors, explosion-proof appliances and other electrical appliances.

G11 epoxy board application: motor, electrical equipment for insulation structure parts, can be used in humid environment and transformer oil, high-voltage switchgear, high-voltage switches and so on.
