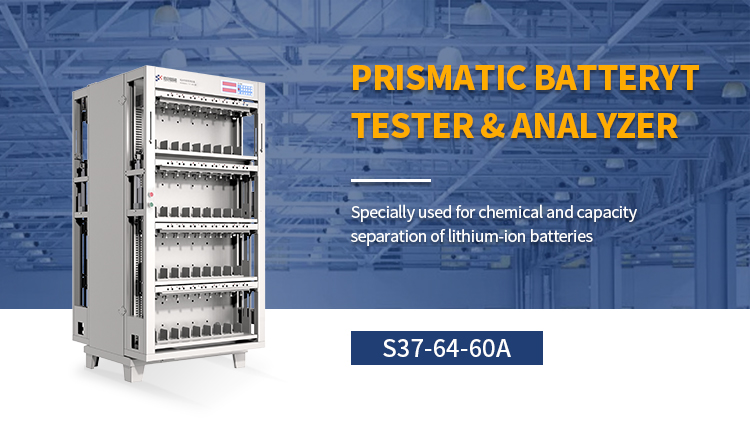

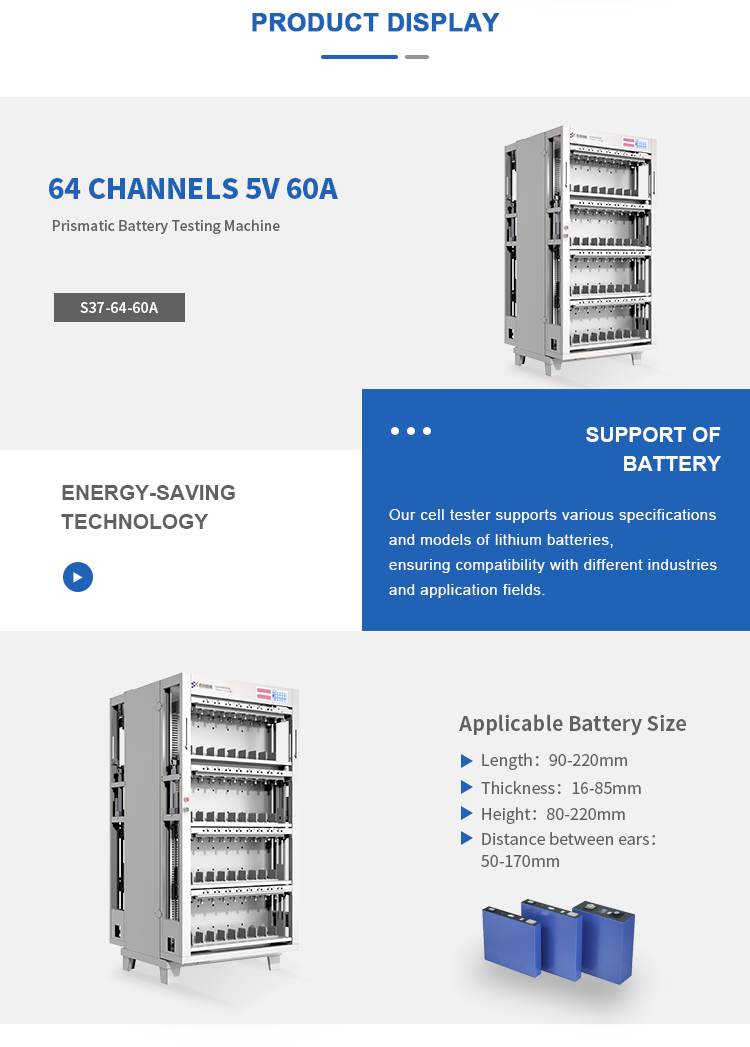

S37-64-60A Energy-Saving and Regeneration Testing Equipment

Highlighted Core Technology

60A High Current Testing: This device has a full range of charging and discharging of 120mA - 60A and is suitable for verifying the power batteries fast-charging criteria.

Contact Impedance Detection: Yes, batteries may be charged and discharged at high rates, but in order to get a measurement of the contact impedance the equipment provides four-wire monitoring of contact resistance in real-time while at the same time incredibly compensates for errors at low levels allowing the battery being tested to be low internal resistance, giving much more accurate the tests and providing an ability to provide this function is also a unique aspect that was beneficial to the item, the Lithium Cell Grading Machine, in which very accurate impedance detection of the internal resistance contributions (responsibilities) of lithium cells are criteria for grading the lithium cells using it.

Bidirectional Energy Recovery: The battery charge discharge test equipment performance is at least 70% for discharging and probably 80% for charging efficency which theoretically could save a huge amount of money, heck maybe $30% plus over the year from what the electricity should cost if used the Copper Swaine (or another type of off-the-shelf) unit. It is also believed that the Lithium Cell Grading Machine will be used to do grading of lithium cell batteries in an energy efficient means using the battery charge discharge test equipment while testing the lithium cells with good high-quality tests.

Performance Advantages

Intelligent Control System

13 Levels of Safety Protection: Reverse connection protection, short-circuit protection, over-temperature protection, etc.

Intelligent sorting system: Automatic grading based on 12 parameters (capacitance, voltage, platform, etc.).

Software functions:

32 steps/256 cycles for →complex step programming

Real-time data curves to offline analytical capabilities

Basic integration into MES (manufacturing execution systems)

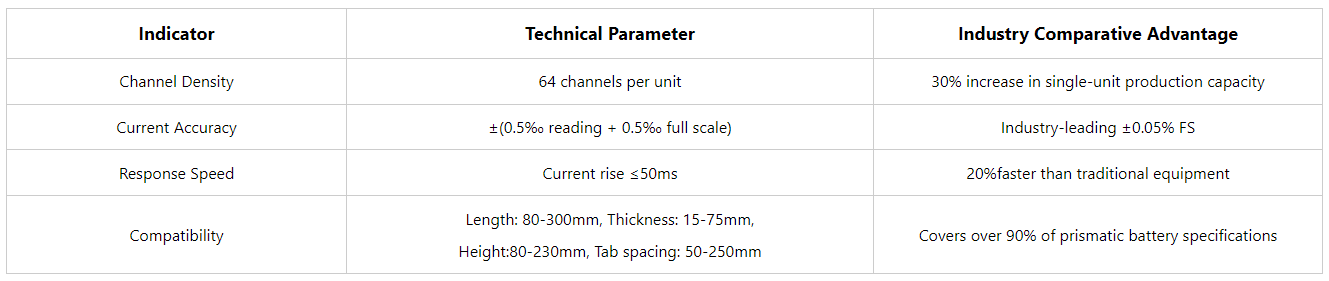

Technical Specifics

Applications Scenarios

Power Battery Production: Most importantly, fast-charging performance verification of type of batteries mostly based on fast-charging - current testing with perhaps feedback of their capabilities to do so.

Energy Storage System Integration: Consistency for 100Ah and above batteries.

Battery R&D Laboratory: For high precision data acquisition and complex step programming.

Battery Recycling and testing: For quicker assessment of remaining capacity and health status of ending life battery or use for second or third life assessments.

The Lithium Ion Battery Tester for high - precision processing of prismatic batteries will be obtained using to testing using high current testing, impedance compensation, and intelligent energy management functions. Also goes beyonds for service of testing to ensure you have good service response with 72 - hour service from the time the service, so guarantees good service for their lifetime of your lithium battery cell use in the production bottling testing operation(s) and it also maintains an optional service for updates which guarantees your software upgrades/integration are up-date' for life.
