Pad printing machines with shuttle tables can only print one product at a time, and the printing efficiency is low. The initial shuttle table was controlled by the cylinder , switching back and forth between different printing positions, and the accuracy was not high. As users have higher requirements for product printing quality, shuttle tables are increasingly controlled by servo motors. The shuttle controlled by servo motors The docking position can also be set at will.

Many products have complex shapes and require different graphics and text to be printed on different parts. Some require the same color, and some require different colors. If servo fixture is installed on the workbench that can perform three-dimensional movements - (left and right, up and down, rotation movements), a shuttle pad printing machine will be able to meet the requirements and minimize the purchase cost.

Shuttle pad printing machines with this structure usually execute instructions by a variable program controller, and set different parameters according to the printing requirements of the product, so that 6 prints of the same color or different colors can be printed on different parts of a product.

311

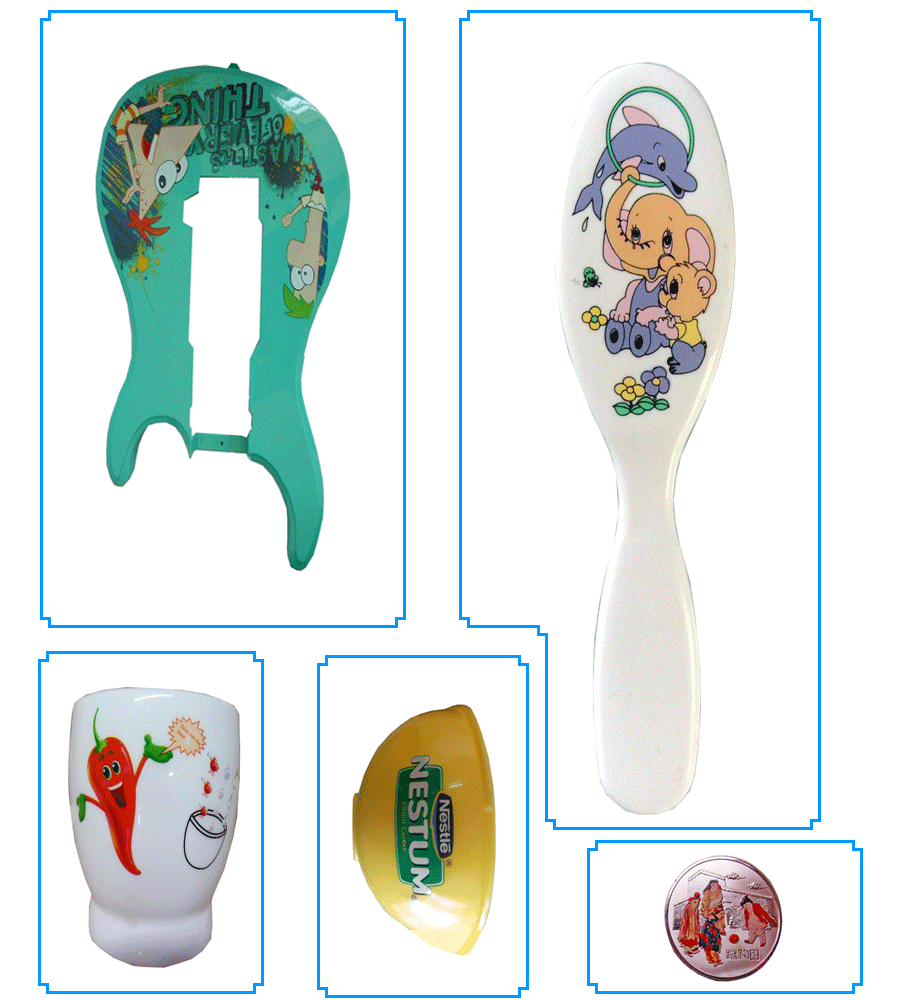

Application Fields

Electronic product industry: In the manufacturing process of electronic products, servo rotary table transfer printers can be used to print identification and warning information on components such as circuit boards and casings. Its high precision and stability ensure the accuracy and consistency of the printing effect.

Automotive parts industry: In the manufacturing process of automotive parts, this equipment can be used to print identification, numbering, barcodes and other information on the parts. This helps to achieve traceability and management of components, improve production efficiency and product quality.

Daily necessities industry: In the manufacturing process of daily necessities, servo rotary worktable transfer printers can be used to print patterns and text on various packaging materials, containers, labels, and other items. Its strong adaptability and ease of operation have made this device widely used in the daily necessities industry.

Other fields: In addition, servo rotary worktable transfer printing machines can also be applied to toys, stationery, household items, and other fields, providing personalized identification and decoration for various products.

Technical parameters

Six colors pad printer with Servo shuttle//Parameter
Technical parameters	SP6-410CSR Max. plate size: 100×250mm. Max. worktable area: 125×200mm. Sealed cup diameter: Φ90mm. Max. printing speed: 550pcs/h. Printable color:6 Shuttle stroke:125mm. Max print area: 80×130mm.	SP6-412CSR Max. plate size: 100×300mm. Max. worktable area: 125×200mm. Sealed cup diameter: Φ90mm Max. printing speed: 550pcs/h. Printable color: 6 Shuttle stroke:125mm. Max print area: 80×170mm.
Works supply	110V-220VPower supply; 5-7Bar Compress air;
Package list	Package dimension: 1470×1280×1530mm Gross weight: 255kg CBM: 2.878848
H.S.Code	8443198000
Certicate	CE

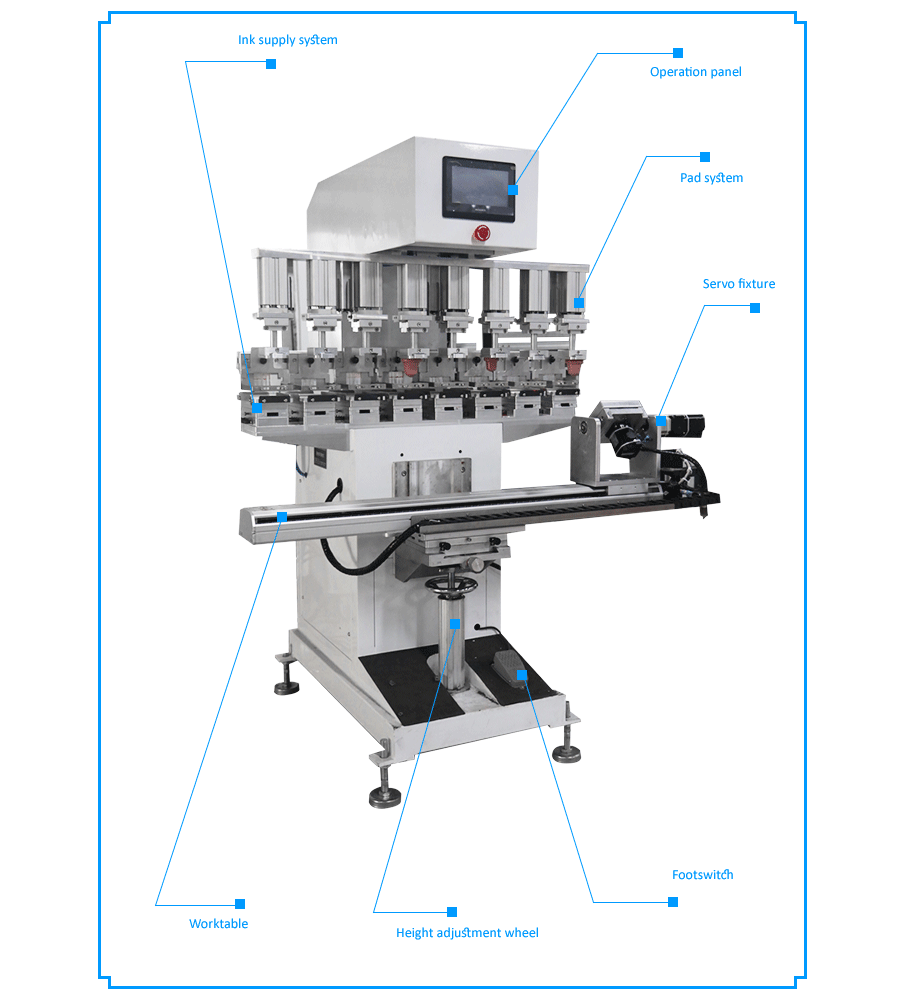

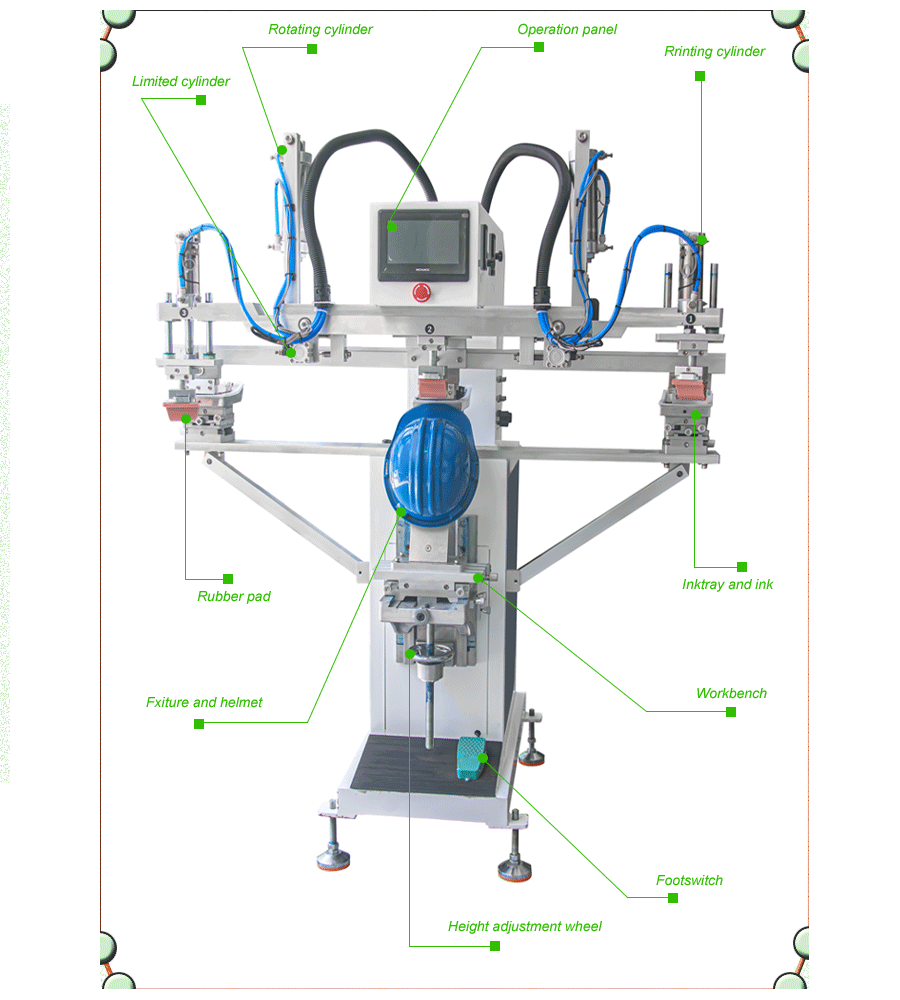

Machine details- Characteristics

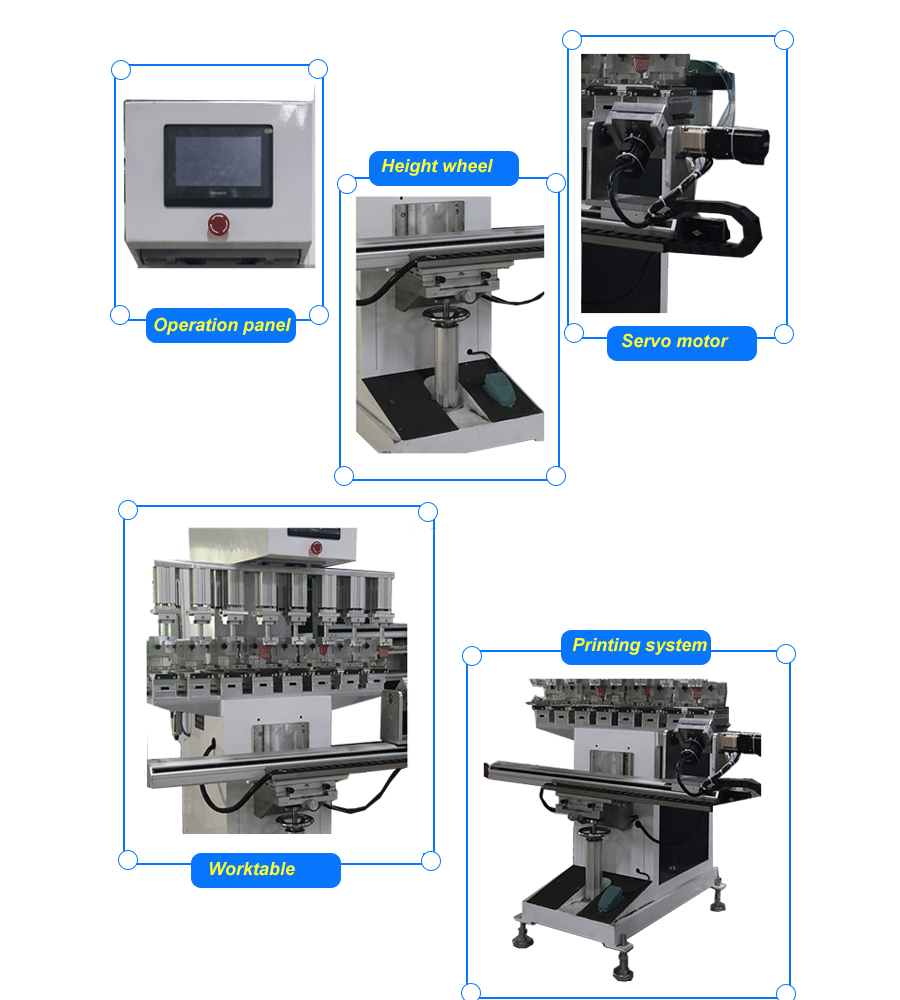

Servo drive: The servo rotary worktable pad printer uses servo motors as power sources, which have the characteristics of high precision, high response speed, and high stability. Servo motors can accurately control the speed and position of the rotating worktable, ensuring the accuracy and consistency of patterns or text during the printing process.

Rotating worktable: This device is equipped with a rotating worktable that can accommodate multiple items to be printed, enabling batch printing. The design of the rotating worktable allows operators to print multiple items at one workstation, improving production efficiency.

Easy to operate: Servo rotary table transfer printers are usually equipped with intuitive operating interfaces and simple operating steps, making it easy for operators to get started. At the same time, the device also has multiple security measures to ensure safety during operation.

Strong adaptability: This device is suitable for printing items of various materials and shapes, such as plastic, metal, glass, etc. Meanwhile, by replacing different transfer heads and inks, it is possible to adapt to different printing needs.

Machine structure

Pad printers target a wide variety of products, with differences in shape and material. Different products have different printing positions and printing effects. Printing engineers must design different printing processes and select different printing consumables according to user needs.
1) Pad printing plates: The plates are made of thick steel plates, thin steel sheets, resin plates, etc. They are used on oil cup pad printers or open pad printers. The printed pattern needs to be etched on the plates. Generally, a single-color pad printer is equipped with one plate, a two-color pad printer is equipped with two plates, and so on.
2) Fixture: The printed product must be fixed on the workbench with a fixture to ensure that the printing position meets the requirements. The fixture can be made of metal or non-metal materials. A single-color pad printer and a shuttle pad printer require a fixture, while a turntable pad printer needs to be equipped with a number of fixtures equal to the number of workstations.
3) Ink: The ink type is selected according to the material of the product, and the ink color is selected according to the printed pattern. Different types of inks should match different pad printing processes. After the ink dries, it should be able to firmly adhere to the product surface. A single-color pad printer uses one color of ink at a time, a four-color pad printer uses four colors of ink, and so on.
4) Pad printing rubber head: Different product shapes and different pad printing patterns require pad printing rubber heads of different shapes. The pad printing rubber head should be able to perfectly achieve the pad printing task and maintain the stability of the properties.
5) Blade or oil cup: Blades are used on open pad printing machines, and oil cups are used on closed pad printing machines. Blades and oil cups should be able to scrape off the ink on the steel plate and should be replaced in time when damaged.
