Tank Mounted Return Line Oil Filter (SDRFM)

---up to 850 l/min

---up to 10 bar

---material: aluminum/ steel/ engineering plastics

1.    Introduction:

Tank mounted return line oil filter (SDRFM type) is mainly installed on the top of oil tank, to remove the impurities like abrasives from the pipeline, in that way, to protect the oil tank, and prolong the life time.

It consists of a filter housing with inlet and housing.

2.    Filter Element

• Max. Allowable DP:

BN/ HC – 20 bar         P/HC – 10 bar           W/HC – 20 bar

3.    Description

Mounting         As tank-top filter

Temperature range        -30℃~ +100℃ (short term -40℃)

Pressure setting of clogging indicator △Pa= 2 bar – 0.2bar (others on request)

Bypass cracking pressure △Po= 3 bar ＋0.5 bar (others on request)

 4. Application

It can be used for mineral oils, lubrication oils, non-flam fluids, synthetic and rapidly biodegradable fluids.

5. Photos：

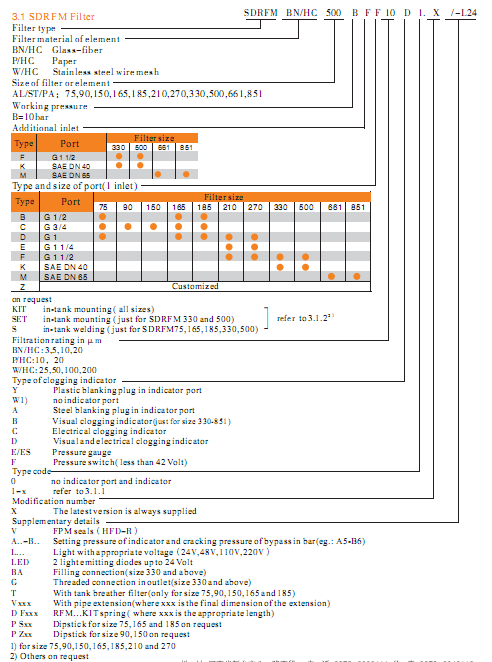

6. Model Selection
