High Pressure Inline Filter （SDDFF）

1.    Construction

The oil filter housings are designed in accordance with international regulations. They consist of a filter head and a screw-in filter bowl.

Standard equipment:

*  connection for a clogging indicator in filter head

*  drain screw with pressure relief (for size SDDFF 330 and above)

*   2-piece filter bowl standard for size SDDFF 990 and above

Filter Element

Max. Allowable D.P.:

BN/HC：20bar；   BH/HC: 210bar    W/HC：20bar      V: 210bar

2.    Description

Mounting                As inline oil filter

Temperature range    - 30 ℃ ~ + 100 ℃

Pressure setting of clogging indicator △ Pa=8 bar (others on request)

Special Models

*  Seals in FPM, EPDM

*  Oil drain screw, up to SDDF/SDDFF 280

3.    Application

It can be used for mineral oils, lubrication oils, non-flam fluids, synthetic and rapidly biodegradable fluids.

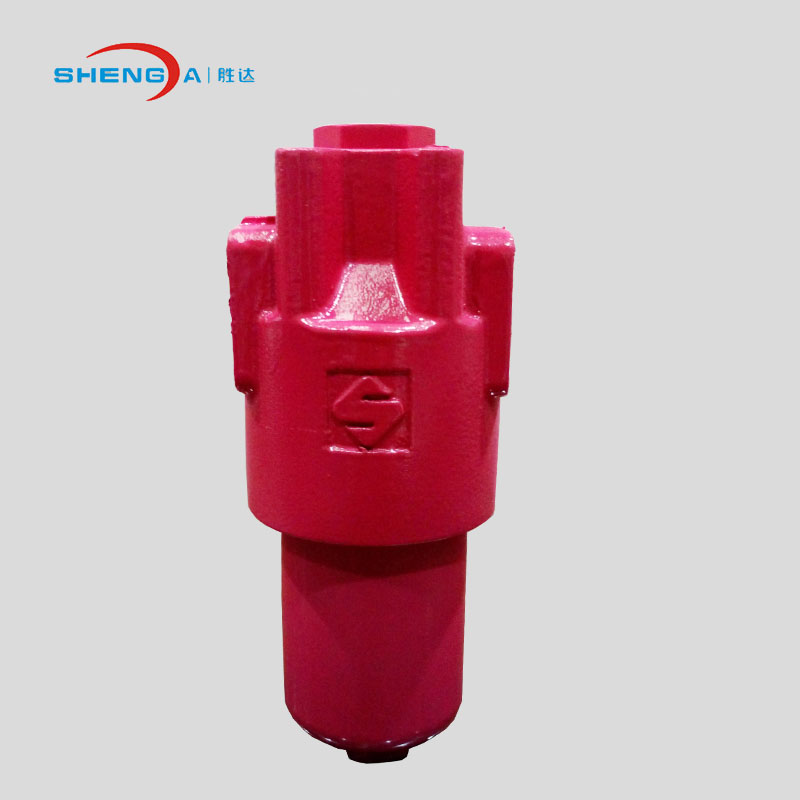

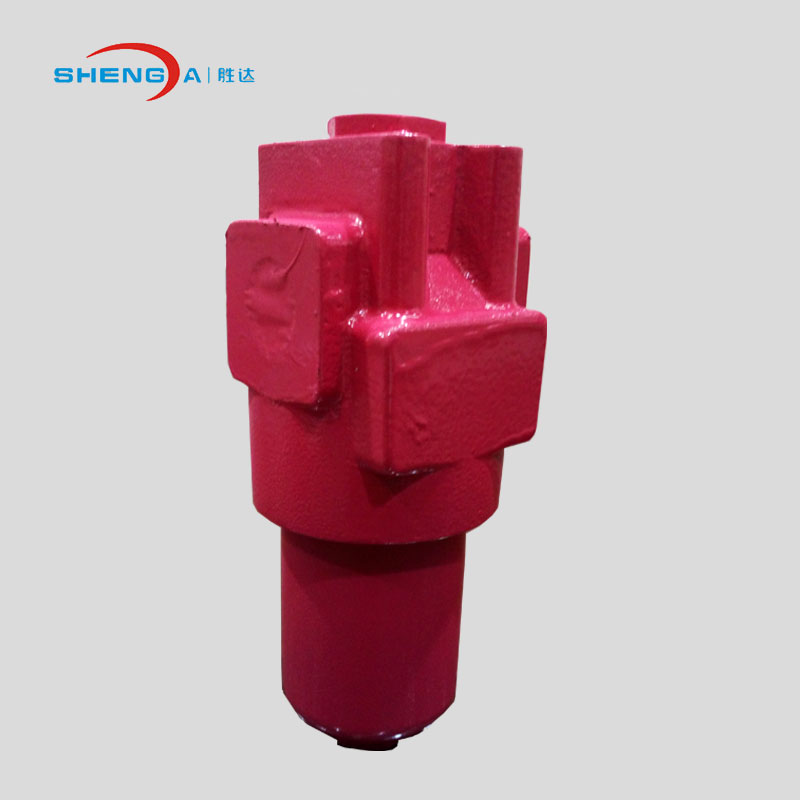

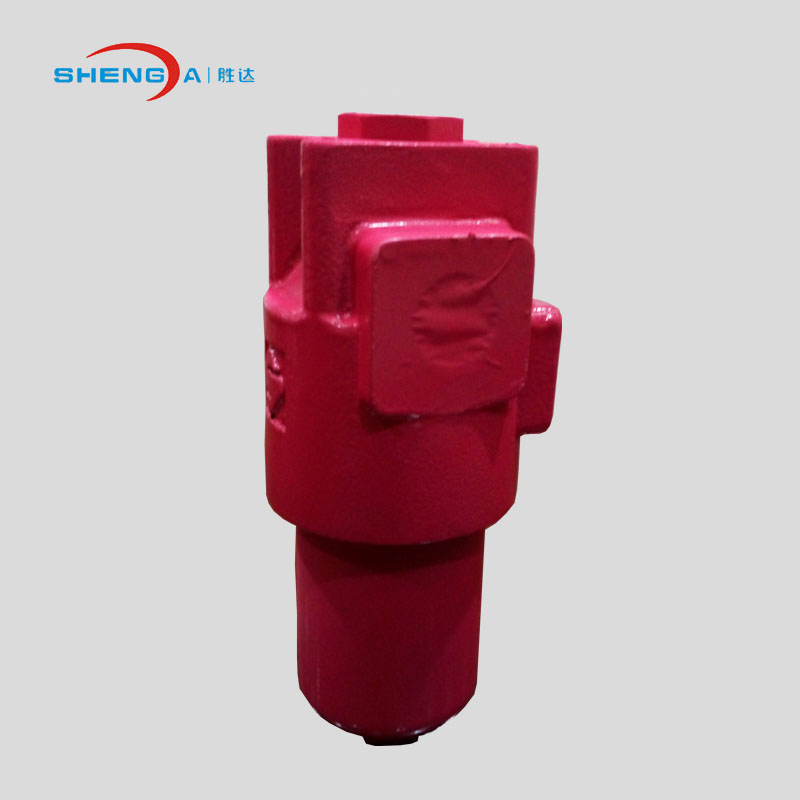

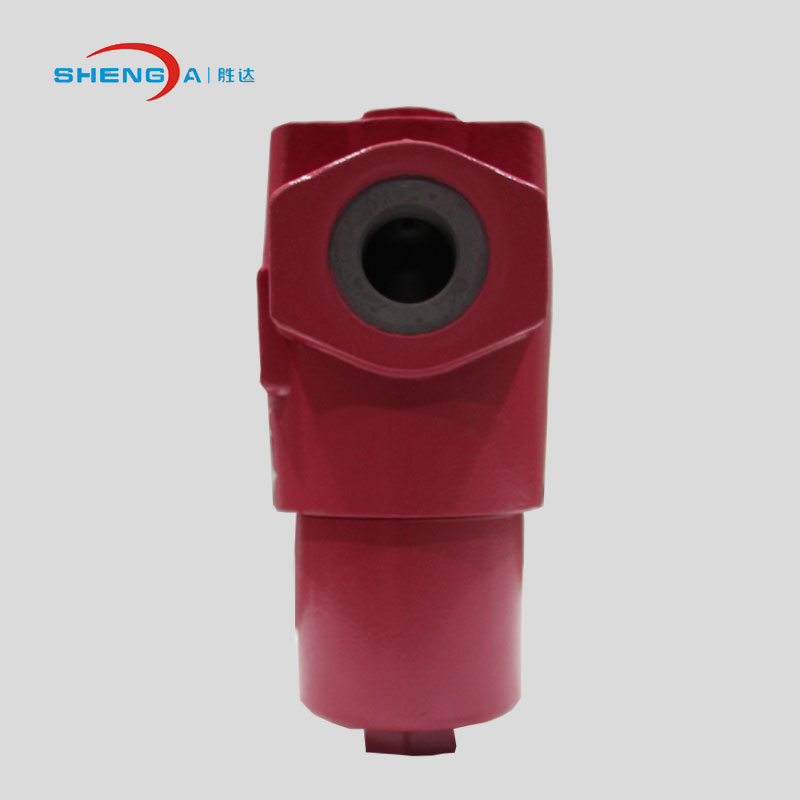

4. Photos

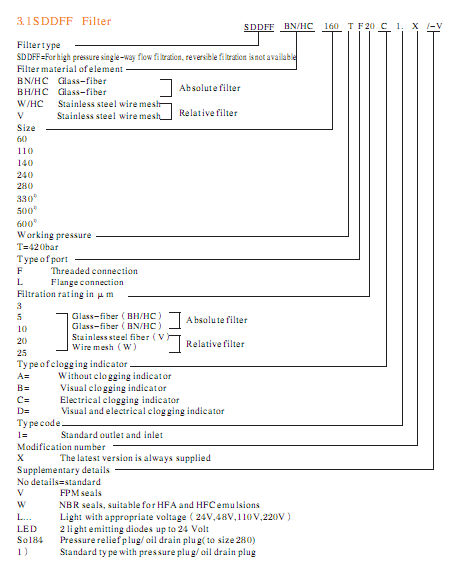

5. Model Selection
