6 colors T shirt screen printing machine.mp4

6-color Garment screen printing machine//Usage and characters

          The automation of garment cutting screen printing machines is also a market trend. In terms of overprinting accuracy and ease of operation, the oval automatic screen printing machine has certain advantages, but it occupies a large area and costs high. For small and medium garment printing factories , The octopus-style multi-color screen printing machine still has a large market space. The multi-color octopus screen printing machine adopts manual loading, that is, the materials and clothing are placed on the workbench by hand. The workbench can have 8-10-12-14 or more according to the number of colors of the machine, and some stations are used for For silk screen printing, some stations are used for drying. In principle, the stations need to be installed with a swing oven to ensure that the surface of the ink is dry and avoid the phenomenon of sticking between colors. The workbench of the screen printing machine can automatically rotate to the next screen printing position to print the next color. In order to improve the accuracy, the screen printing machine adopts a certain mechanical positioning device. At the same time, the upper and lower sides of the screen are controlled by servo motors.        The automatic rotary cutting screen printing machine is another representative of the forward and backward movement of the scraper in the type of screen printing machine. We know that the oblique arm screen printing machine is such a structure, which makes it easier to place and remove products. If you are tired of the hard work of manual screen printing machines and do not plan to buy oval screen printing machines, then you can consider disc screen printing machines.

Catalogue

• Full automatically operation process ;
• Total-steel rotating-axis system ensure whirling free and Adaptability.
• High-strength support pole make the machine structure rigidity.
• 4-color screen printing one time, overprint is precision .
• Screen frame can be adjustable according to different objects to be printed.
• Screen frame can be rise up after printing so that printing quality.
• High-stabilization working table ensure non-shaking when printing;
• IR Dryer with machine make the clothes drying fast
• PLC controlling ensure operation more easier

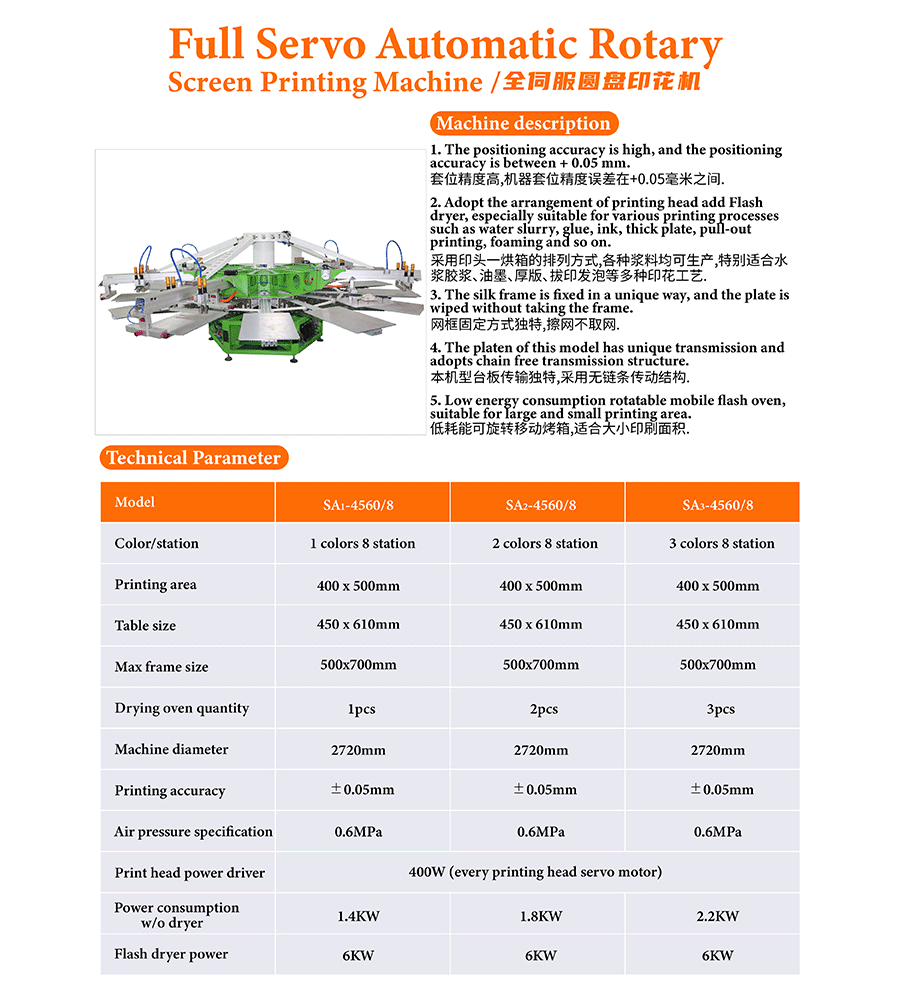

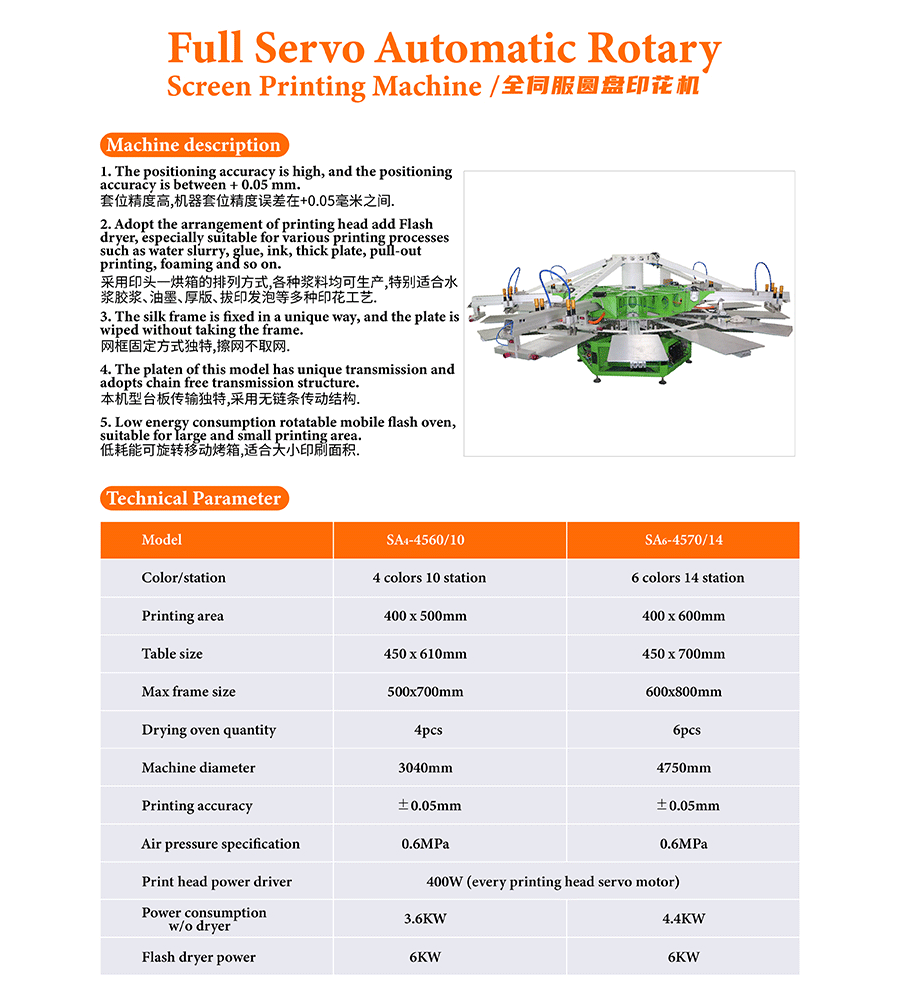

Data

        There are many structures of screen printers, but you will find that the structure of screen printers for printing clothing pieces is very different from that of screen printers for printing plastic, paper, glass and other products. Screen printers for fabric pieces are usually designed in a form where the screen and printing head rotate around the central axis, similar to an octopus. We call this type of screen printer an octopus screen printer.

1) The workbench generally uses a flat aluminum plate, on which glue can be applied during printing. The glue can bond the clothing pieces to the workbench to prevent movement;

2) The screen and workbench of a manual screen printer will rotate around the central axis to achieve multi-color screen printing. The automatic screen printing machine table keeps rotating to achieve multi-color screen printing;

3) The printing device generally adopts front and back scraping printing, which makes it easier to place products, check products, and achieve multi-color accurate overprinting;

4) A swing drying device is usually set between printing stations to facilitate the drying of the ink layer and prevent the next color printing from causing ink color bleeding;

5) The drying device on the screen printing machine often only dries the ink layer on the surface and dries it thoroughly. A separate tunnel drying furnace can be used for drying, which can improve production efficiency.

Screen printing machines face fierce competition from printers. Printers have developed rapidly due to the lack of complex processes such as plate making and color matching, but they are still difficult to compare with screen printing machines in terms of three-dimensional patterns and bright colors with very strong surface power. They play a powerful role in clothing printing in the market.
