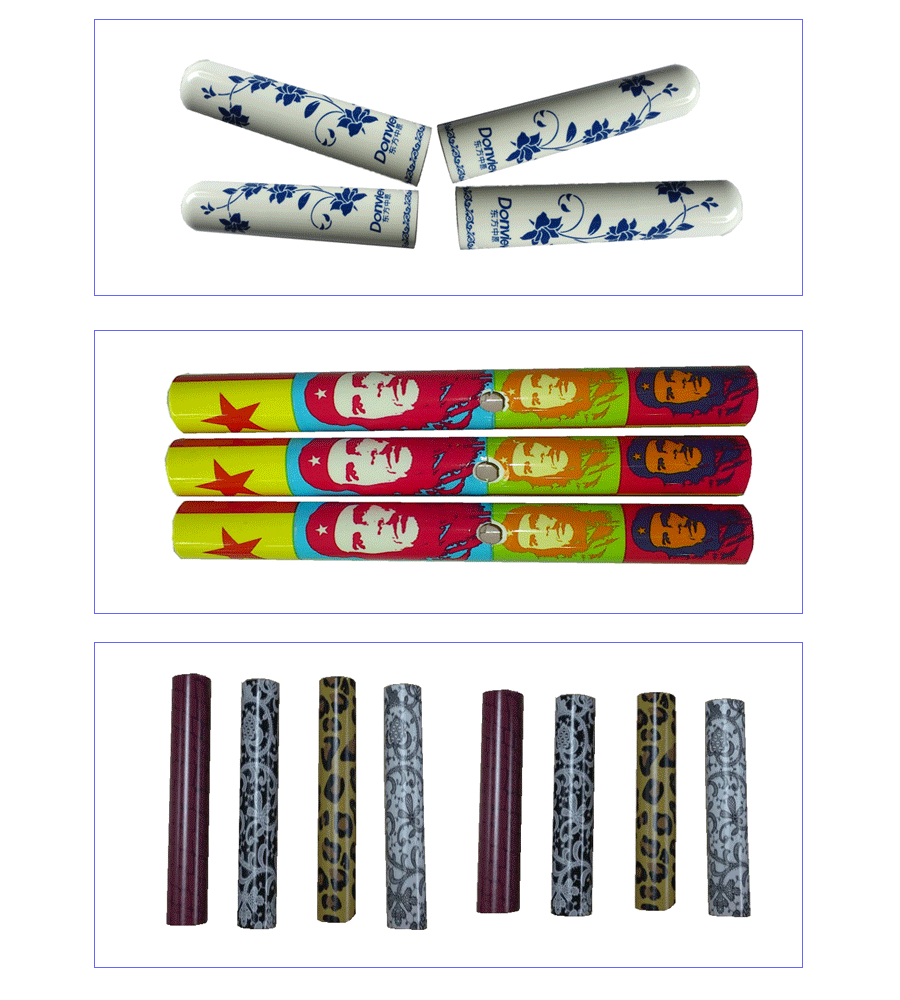

Application-printed Samples

      Plastic products with a diameter of less than 20mm, such as pen holders, cosmetic pencils, and lipstick tubes, can use semi-automatic hot stamping and heat transfer printing, or full-automatic hot stamping and automatic heat transfer printing machines. Most users will use automatic hot stamping machines and automatic heat transfer machines to decorate their products.
    There are various structures of automatic hot stamping machines and automatic heat transfer machines on the market, among which the hot stamping machines with vertical turntable are mostly, because the vertical turntable can transport products continuously, which is more efficient. It uses a feeding trough to store products, and then the products are arranged in a certain order and transported to the hot stamping position. Some products need to be adjusted in direction, and an automatic U-turn device can also be installed. The product is conveyed to the hot stamping station or heat transfer station. Hot stamping generally uses hot stamping paper and anodized aluminum, and thermal transfer generally uses thermal transfer film. Products that have completed hot stamping and thermal transfer printing will continue to run to the unloading position.
    The automatic bronzing machine and heat transfer machine for pen holder, makeup pen, lipstick tube are small-sized machine types, in fact, it is a miniature automatic hot stamping machine and heat transfer machine specially designed for small diameter products in order to reduce costs machine, if your product diameter is larger, then you need a bigger machine, but they are similar in structure and have the same function.

Details-structure of fully automatic pen heat transfer machine:

1. Pen conveying and positioning system  Automatic feeding mechanism  Feed hopper/conveyor belt: The products will be neatly placed in the feed hopper, and the conveyor belt will drive the products to be arranged in order. Some machines will be equipped with an automatic U-turn device to transport the products in the same direction.

2. Heat transfer system

a. Heating device

The main body of the heat transfer system is driven by a motor to rotate the silicone rubber roller. Infrared heating tubes are distributed around the silicone rubber roller. After being heated, the heating tube radiates heat to the surface of the silicone rubber roller. The heating temperature is monitored in real time by a temperature sensor, and the temperature closed-loop control is achieved with a temperature control module (such as a PLC or PID controller). Stable temperature is an important indicator to ensure the stability of the transfer process.

b. Transfer film supply mechanism

 The heat transfer film is printed with a gravure printer, and is cut into different widths and installed on the heat transfer machine when in use. The transportation of the heat transfer film ensures that the position of the pattern and product meets the needs of the user. Therefore, the conveying device of the thermal transfer film usually includes a photoelectric switch, tension control, and traction motor.

3. Pressure device

The silicone roller presses the thermal transfer film onto the product by pressure. In most cases, an electric device is used. In order to precisely adjust the pressure, some machines also use servo motor control.

4. Discharging system

The discharging system includes a feeding device and a small conveyor belt. The feeding device will remove the product and place it on the conveyor belt according to the external characteristics of the product.

5. Control system

The structure and technology of the thermal transfer machine are relatively mature, and its operation is generally controlled by a microcomputer operation panel.

Description

• Usage︰

    In diameter, 20mm large and multi-color printed pen products, such as a ballpoint pen, pencil, marker, whiteboard pen, gel pen, pen, pencil, lipstick, medical syringes, bamboo chopsticks and other small-diameterheat transfer decoration of objects designed for fully automatic surface heat transfer machine. The high printing speed, print quality and stability. Automatic loading and unloading, saving labor intensity, and rocker transport mechanism running smoothly.
