Automatically label screen printing machine

For the silk screen printing of roll materials such as paper, film, and metal, a roll-to-roll automatic screen printing machine is required. It adopts the design of gradually unfolding the roll material into the screen printing program. For the accuracy of the printing process, roll-to-roll screen printing machines usually set Deviation correction device and tension control device; Most of the roll materials are relatively light and thin. The workbench of the screen printing machine adopts an aluminum alloy platform and an air suction device, and the screen printing of a higher-precision membrane switch can also be installed with a CCD vision system; Unit, IR drying system and UVLED system are available.
The roll-to-roll screen printing machine can be composed of a single machine, or multiple units can be connected to form a multi-color automatic screen printing machine. More and more roll materials require multi-color silk screen printing. Users can either purchase multi-color automatic screen printing machines for one-time printing, or purchase single-color automatic screen printing machines for multiple color printing.

187

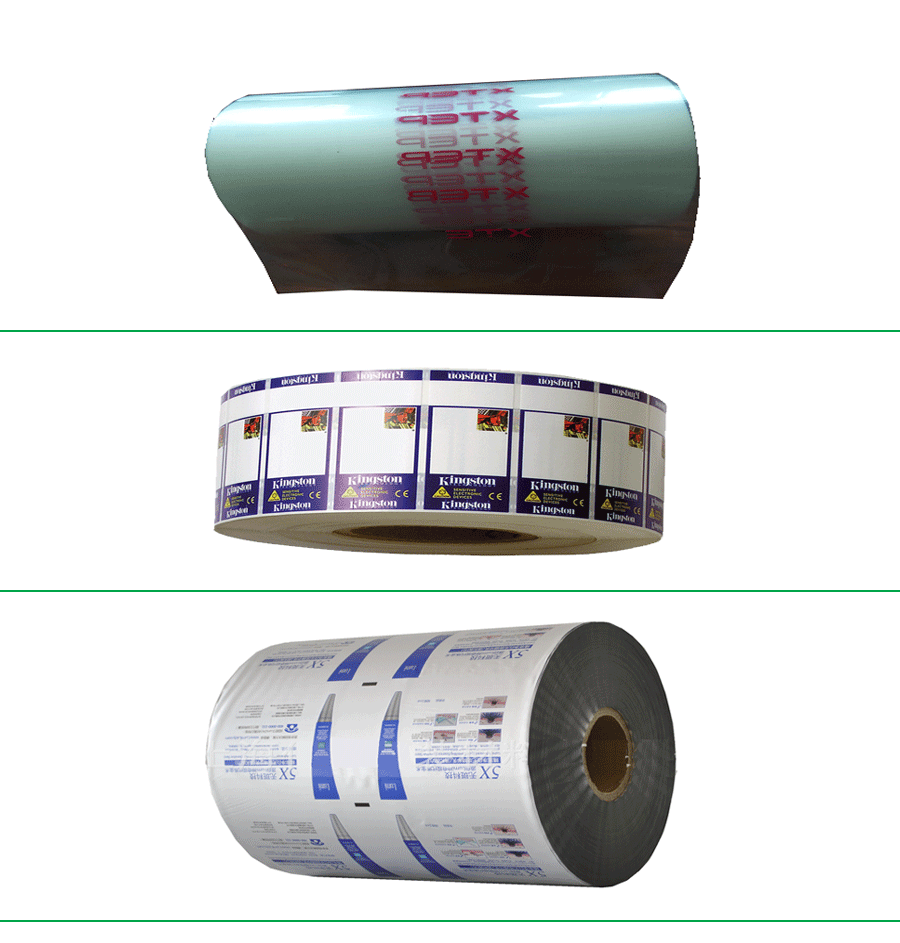

This screen printing machine is mainly used for PET, PVC, PC, B0PP film and other packaging materials of the screen printing. Applicable to stickers, transfer paper, special multi-dragon, self-adhesive trademark paper, label nameplate, film switch and surface light color, IMD, IML, and other packaging materials. It can only print one color, so it is widly used in printing lable.

Automatically label screen printing machine//Character

Roller materials generally elongated sub merchandise for indicating the specified position in product features an accessory. Using loose knit nylon, polyvinyl alcohol, polyester, polypropylene, spandex, rayon and other raw materials and weaving, braiding, knitting and other technology formation.
Monochrome screen is monochrome surfaces automatic screen printing machine for ribbon width 300 mm or less, can be a single or a plurality of monochrome printing.
High printing speed, print quality and stability. Automatic package feeding mode, saving labor intensity, pitch servo control means for printing different pitches graphic.
Double drying tunnel drying design, greatly improving printing efficiency webbing.

Automatically label screen printing machine//Technical Parameter

Item	SZD-4060IRF	SZD-5070IRF
Printing speed	60-100M/h	60-100M/h
Materials width	400 mm	500 mm
Printing width:	380 mm	480 mm
Max printing length	600 mm	700 mm
Overprint precision	±0.05 mm	±0.05 mm
Mainly motor wattage	220 V 2.5 KW	220 V 2.5 KW
IR heating wattage	380 V 12 KW	380 V 12 KW

Automatically label screen printing machine//Package Parameter

Mainly machine package size	210 CM95 CM150 CM
IR drying machine package size	210 CM85 CM210 CM
/weight	1800 KG
Installing size	2 M*7 M

Automatically label screen printing machine//Structure

Feeding device	Plate material, servo motor conveyor belt transmission.
Worktable type	Precision suction worktable
Movement characteristics	The servo traction motor drives the package material to the printing position through the transmission mechanism.
Screen flame up and down control device	High strength guide shaft
Scraper control device	High precision rails
Ink curing	Solvent-based inks, UV inks
Heating wattage	7 KW
Cutting method	Automatic winding

Automatically label screen printing machine//Advantage

That shut down for operating an ink rub net increase, which will help the color adjustment;
Block printing with vacuum suction function, Label positioning is more accurate and reliable;
High-speed printing, the normal per-minute speeds of up to 15M;
Which can print up to eight different types of ribbon;
Double blade design, printing, inking cleaner and reliable;
All-electric control, no compressed air;
Automatic feeding, winding tension control;
Smooth running smoothly, the printing stroke and speed adjustable;
Taiwan inverter control constant torque operation, to ensure consistent printing results;
Using IR infrared drying system, printing, drying synchronization is complete.

1、 Characteristics

High speed and efficiency: This equipment has extremely high printing speed, which can greatly improve production efficiency and meet the needs of large-scale production.

Automated operation: Through advanced automation control systems, the printing process is automated, reducing manual intervention, lowering operational difficulty and labor costs.

High precision printing: using advanced printing technology and high-precision printing heads to ensure high quality and clarity of printed materials, and enhance the added value of products.

Environmental protection and energy conservation: We pay attention to environmental protection and energy conservation in the design and manufacturing process, adopt low-energy drive systems and environmentally friendly materials, reduce energy consumption and waste emissions in the printing process, and achieve green production.

2、 Function

Automatic plate making and printing: Equipped with automatic plate making function, it can quickly produce printing plates based on input image or text information and perform efficient printing operations.

Multi size adaptation: able to adapt to printing materials of different sizes, meeting the personalized needs of different customers.

Remote monitoring and diagnosis: By using a digital operating system, remote monitoring and diagnosis functions can be achieved for easy maintenance and management.

3、 Application Fields

Packaging printing: High speed drum type automatic screen printing machines are widely used in the field of packaging printing, which can produce attractive packaging products and improve their market competitiveness.

Commercial printing: In the field of commercial printing, this equipment can meet the personalized printing needs of enterprises for promotional materials and improve the effectiveness of publicity.

Electronic product printing: suitable for printing logos, labels, etc. on electronic products, such as the outer shell and internal components of mobile phones, computers, and other products.

Textile printing: can be used for pattern printing of textiles, such as customized patterns for T-shirts, bed sheets, curtains, and other products.

Other fields: In addition, high-speed drum type automatic screen printing machines can also be used in multiple fields such as advertising, art replication, label printing, etc.
