Compared with the backup UPS, the UN series high frequency online UPS has excellent output voltage transient characteristics. Generally, when the load is 100% or 100% load is unloaded, its output voltage varies from about 1%, and the duration of this change is generally 1 to 3 cycles. It uses advanced PFC technology to make the input power factor greater than 99%, including power 15KVA/15KW, 20KVA/20KW.

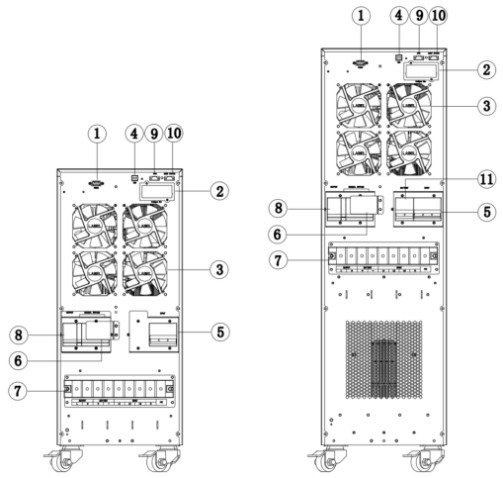

15KVA Online UPS

① RS232

② Smart slot (optional)

③ Fan

④ USB

⑤ Input breaker

⑥ Maintenance bypass breaker (optional)

⑦ Terminal block

⑧ Output breaker (optional)

⑨ EPO

⑩ Maintenance status port

⑪ Battery breaker (optional)

Model	UN1115KS	UN1115KL		UN1120KS		UN1120KL
Capacity	15kVA/15kW			20kVA/20kW
Input
Nominal Voltage	208/ 220/230/240Vac, L+N+PE
Voltage Range	90~300Vac
Frequency Range	40~70Hz
Power Factor	≥0.99
Output
Nominal Voltage	208/220/230/240Vac, L+N+PE
Voltage Regulation	±1%
Frequency	50/60Hz±0.1%
THDu	≤2% (linear load); ≤7% (non-linear load)
Transfer Time	Zero
Crest Ratio	3:1
Overload Capacity (Line Mode)	105%~125% load, 10min; 126%~150% load, 1min; >150% load, 100ms
Overload Capacity (Battery Mode)	105%~125% load, 1s; >126% load, 100ms;
Battery
Battery Type	Sealed lead acid maintenance free
Battery Voltage	192Vdc / 240Vdc
Battery Number	7Ah162strings		External		9Ah162strings		External
Charging Current	2A		4A or 8A		2A		4A or 8A
Efficiency
Line Mode	93%
Battery Mode	92%
ECO Mode	98%
Communication
Interface	RS232 / USB/ SNMP card(optional) / Dry contact card (optional)
Environment
Operation Temperature	0~40℃
Humidity	0~95%（non-condensing)
Noise	≤55dB @ 1 meter away
Altitude	Up to 1000m without derating
Physical
Dimensions (WDH) mm	250622844	250622604		250622844		250622604
Weight (kg)	99	33		100		35
