UN11 Series High Frequency Online UPS
11 month ago- The input power factor is≥0.99, and the input frequency range is within 40-70Hz;
- The THDi of Input is ≤5%(linear load); ≤8%(non-linear load);
- The output transfer time is Zero; It's truly online double-conversion technology;
- The overload capacity( Line Mode) is under the range: 102%-105% load, 30 min; 105%-125% load, 10 min; 125-150% load, 30s; >150% load, 500ms;
- The overload capacity (BatteryMode) is under the range: 102%-105% load, 10 min; 105%-125% load, 1 min; 125-150% load, 10s; >150% load, 500ms;
- With 3:1 crest ratio,
- Contact Us to know more details;
Model | UN1106KS/ UN1106KL/ UN1110KS/ UN1110KL |
Line Mode | 95% |
Battery Mode | 94.5% |
ECO Mode | 98% |
The Battery parameters of Our UN11 Series Tower Online UPS:
Model | UN1106KS | UN1106KL | UN1110KS | UN1110KL |
Battery | Sealed lead acid maintenance-free | |||
Nominal Voltage | 192Vdc/240Vdc | |||
Battery Number | 7Ah*16/20pcs | External | 9Ah*16/20pcs | External |
Charging Current | 1A | 1-12A settable | 1A | 1-12A settable |

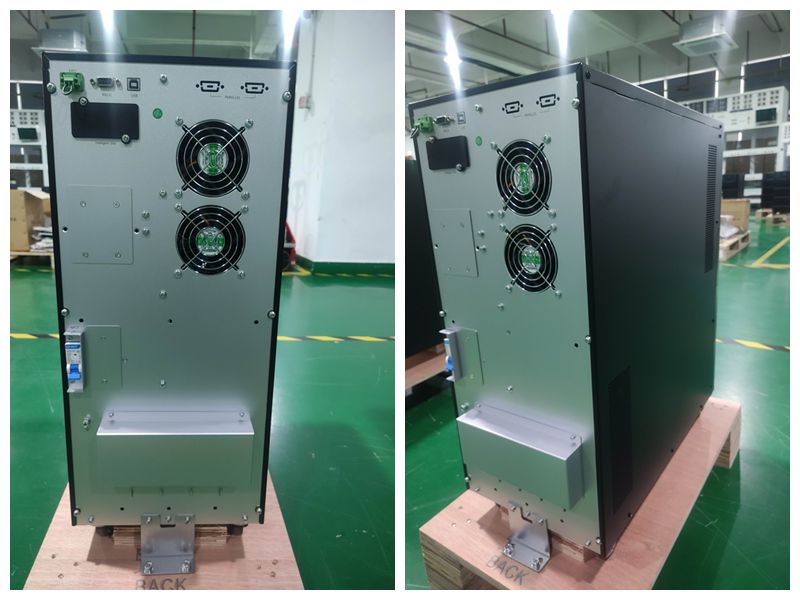

The Rear Panel:

① RS232; ② Smart Slot; ③ Fan ; ④ USB; ⑤ Input breaker; ⑥ Maintenance breaker (optional); ⑦ Terminal block; ⑧ Output breaker (optional); ⑨ EPO; ⑩ Maint status; ⑪ Battery breaker (optional);⑫ Parallel port(optional)

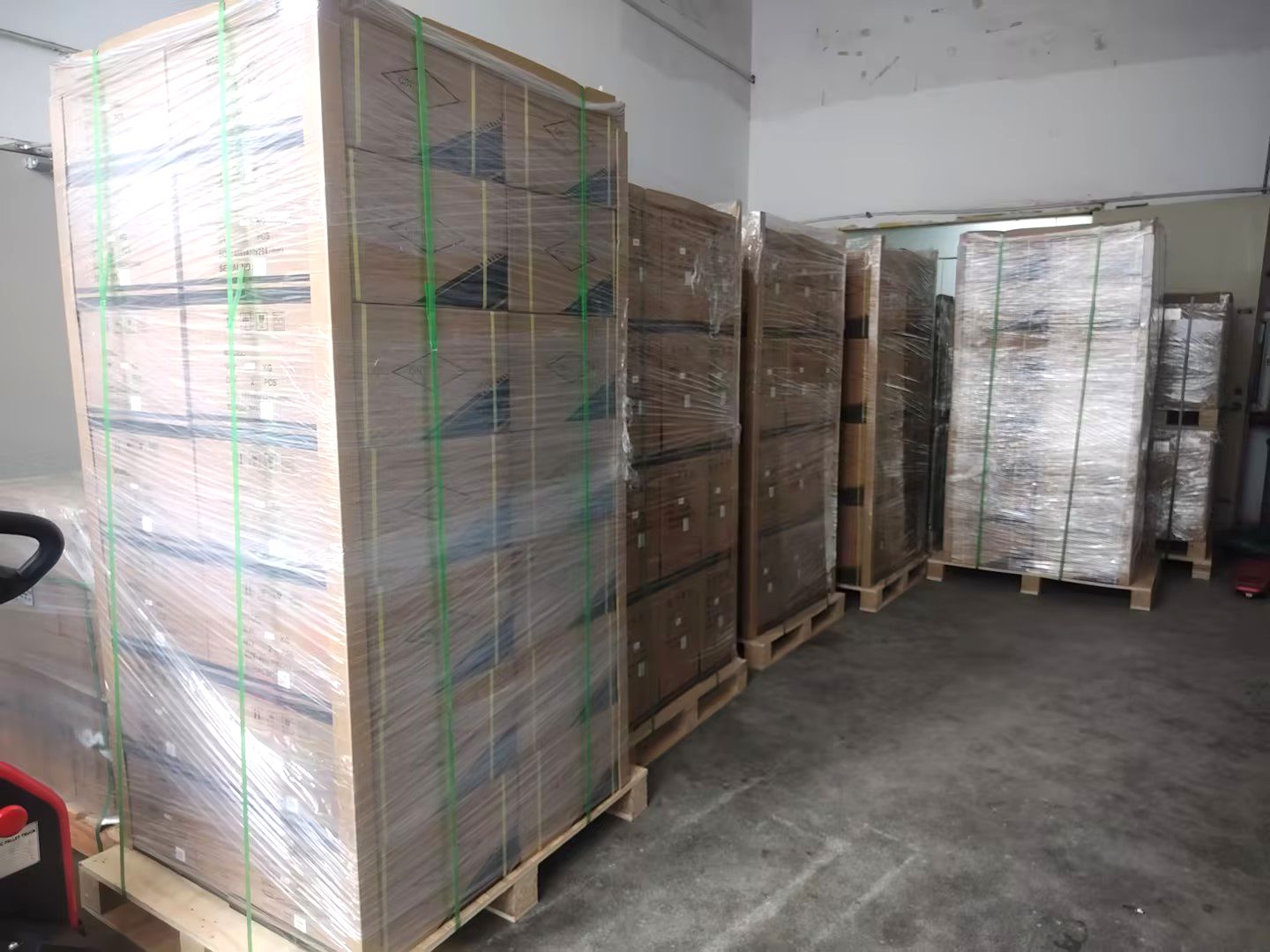

The Delivery of this product:
