3 year agoUNC11 6KVA/5.4KW, 10KVA/9KW true online dual conversion UPS is economical model that can provide uninterrupted power to critical loads.The 6K model has a built-in 12pcs 9AH batteries, and the 10K model has a built-in 14pcs 9AH batteries. Its wide input voltage range and stable power supply can extend the battery lifetime. This tower UPS is small, powerful and easy to use.
◆Application
IDC(Internet Dater Center), network, servers and workstations, control system, communication system, office, PC etc
◆Feature
●True online double-conversion technology
●Wide input voltage range
●DSP based technology
●Advanced PFC technology,input PF>99%
●Cold start
●Automatic battery charging on/off mode
●Lighting and surge protection
●LCD/LED display

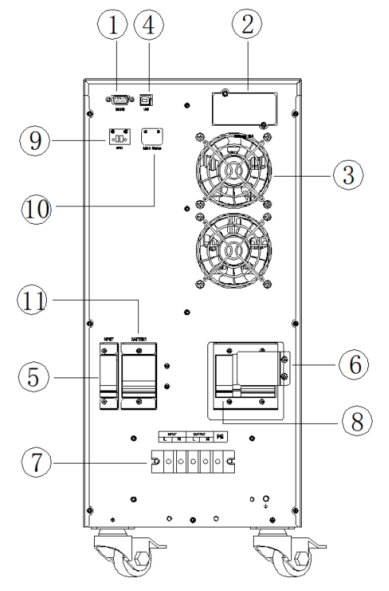

◆Rear Panel

① RS232
② Smart slot
③ Fan
④ USB
⑤ Input breaker
⑥ Maintenance bypass breaker (optional)
⑦ Terminal block
⑧ Output breaker (optional)
⑨ EPO
⑩ Maint status
⑪ Battery breaker (optional)
Model |
UNC1106KS |
UNC1110KS |
Capacity |
6kVA/5.4kW |
10kVA/9kW |
Input |
||
Nominal Voltage |
208/ 220/230/240Vac, L+N+PE |
|
Voltage Range |
110~300Vac |
|
Frequency Range |
40-70Hz |
|
Power Factor |
≥0.99 |
|
THDi |
≤5%(linear load); ≤8%(non-linear load) |
|
Output |
||
Nominal Voltage |
208/220/230/240Vac, L+N+PE |
|
Voltage Regulation |
±1% |
|
Frequency |
50/60Hz±0.1% |
|
THDu |
≤2%(linear load);≤5%(non-linear load) |
|
Transfer Time |
Zero |
|
Crest Ratio |
3:1 |
|
Overload Capacity (Line Mode) |
102%~105% load, 30min; 105%~125% load, 10min; |
|
Overload Capacity (Battery Mode) |
102%~105% Load, 10min; 105%~125% load, 1min; |
|
Battery |
||
Battery Type |
Sealed lead acid maintenance free |
|
Nominal Voltage |
144Vdc |
168Vdc |
Battery Number |
7Ah(9Ah)*12pcs |
7Ah(9Ah)*14pcs |
Charge Current |
1A |
1A |
Efficiency |
||
Line Mode |
95% |
|
Battery Mode |
94.5% |
|
ECO Mode |
98% |
|
Communication |
||
Interface |
RS232 /USB/ SNMP card(optional) /Dry contact card(optional) |
|
Environment |
||
Operation Temperature |
0~40℃ |
|
Humidity |
0~95%(non-condensing) |
|
Noise |
≤50dB@1meter away |
|
Altitude |
Up to 1000m without derating |
|
Physical |
||
Dimensions (W*D*H) mm |
232*506*529 |
232*506*529 |
Weight (kg) |
63 |
70 |
