UTR11 1-3KVA Rack onine UPS 110VAC
2 year ago
UTR series online UPS includes power 1KVA/1KW, 2KVA/2KW, 3KVA/3KW, 6KVA/6KW, 10KVA/10KW, of which 6-10K rack-mounted UPS has an isolation transformer. Its AC/DC conversion part adopts a high-frequency design, which improves the input power factor (above 0.98) and input voltage range of the UPS. The high-frequency of the DC/AC inverter part reduces the volume of the output filter inductor and has high power density. If there is no output isolation transformer, once the IGBT of the inverter bridge arm is broken down and shorted, the high DC voltage of the BUS bus will be added to the load, endangering the safety of the load. The output isolation transformer has the ability to "pass AC resistance DC", which can solve such problems and enable the load to operate safely in the event of a UPS failure.

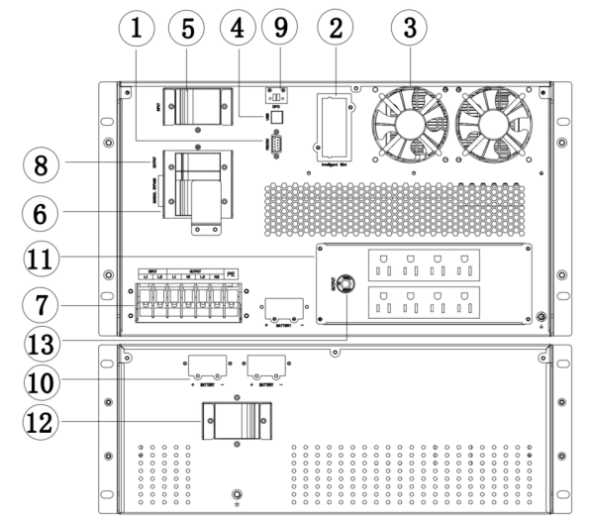

① RS232
② Smart slot
③ Fan
④ USB
⑤ Input breaker
⑥ Maintenance breaker (optional)
⑦ Terminal block
⑧ Output breaker (optional)
⑨ EPO
⑩ Battery breaker (optional)
⑪ Output socket
⑫ Battery breaker
⑬ Over current protection breaker
6KL/10KL+Battery Pack
Model
UTR1106KS
UTR1106KL
UTR1110KS
UTR1110KL
Capacity
6kVA/6kW
10kVA/10kW
Input
Nominal Voltage
208/ 220/230/240Vac, L1+L2+PE
Voltage Range
110~300Vac
Frequency Range
40~70Hz
Power Factor
≥0.99
THDi
≤5%(linear load); ≤8%(non-linear load)
Output
Nominal Voltage
208/220/230/240Vac or 110/115/120Vac, L1+N1+L2+N2+PE
Voltage Regulation
±1%
Frequency
50/60Hz±0.1%
THDu
≤2% (linear load); ≤5% (non-linear load)
Transfer Time
Zero
Crest Ratio
3:1
Overload Capacity
102%~105% load, 30min; 105%~125% load, 10min;
Overload Capacity
(Battery Mode)
102%~105% load, 10min; 105%~125% load, 1min;
Battery
Battery Type
Sealed lead acid maintenance free
Battery Voltage
192Vdc / 240Vdc
Battery Number
7Ah*20pcs
External
9Ah*20pcs
External
Charging Current
1A
1-12A settable
1A
1-12A settable
Efficiency
Line Mode
93%
Battery Mode
92.5%
ECO Mode
98%
Communication
Interface
RS232 / USB/ SNMP card (optional) /Dry contact card (optional)
Environment
Operation Temperature
0~40℃
Humidity
0~95%（non-condensing)
Noise
≤50dB @ 1 meter away
Altitude
Up to 1000 meters without derating
Physical
Dimension
440*500*264
440*500*437
440*500*264
440*500*437
Weight (kg)
102
50
58
110
51
(Line Mode)
125%~150% load, 30s; >150% load, 500ms
125%~150% load, 10s; >150% load, 500ms
(W*D*H) mm
