UN11 Series 6-10KVA High Frequency Online UPS
2 year agoUN Series 6KVA/6KW, 10KVA/10KW Single Phase online UPS has advanced PFC technology which makes the input power factor greater than 99%. This high frequency UPS system adopts DSP control technology and online dual conversion technology. There are two types of batteries for option: built-in Lead Acid Batteries or external UPS batteries.
◆Application
IDC(Internet Dater Center), network, servers and workstations, control system, communication system, office, PC etc
◆Feature
●True online double-conversion technology
●Wide input voltage range and stable power supply extends battery lifetime
●DSP based technology
●Advanced PFC technology,input PF>99%
●Cold start
●Automatic battery charging on/off mode
●Lighting and surge protection
●LCD/LED display
●Support generator connection
●Smart slot for mission critical applications

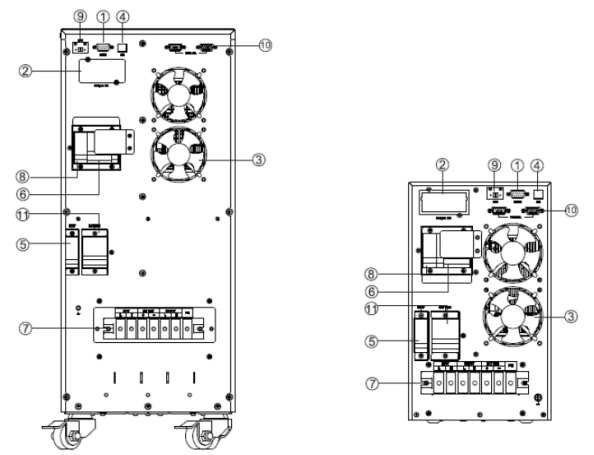

◆Real Panel
① RS232
② Smart slot (optional)
③ Fan
④ USB
⑤ Input breaker
⑥ Maintenance bypass breaker (optional)
⑦ Terminal block
⑧ Output breaker (optional)
⑨ EPO
⑩ Parallel kit (optional)
⑪ Battery breaker (optional)
Model |
UN1106KS |
UN1106KL |
UN1110KS |
UN1110KL |
Capacity |
6kVA/6kW |
10kVA/10kW |
||
Input |
||||
Nominal Voltage |
208/ 220/230/240Vac, L+N+PE |
|||
Voltage Range |
110~300Vac |
|||
Frequency Range |
40-70Hz |
|||
Power Factor |
≥0.99 |
|||
THDi |
≤5%(linear load); ≤8%(non-linear load) |
|||
Output |
||||
Nominal Voltage |
208/220/230/240Vac, L+N+PE |
|||
Voltage Regulation |
±1% |
|||
Frequency |
50/60Hz±0.1% |
|||
THDu |
≤2% (linear load); ≤5% (non-linear Load) |
|||
Transfer Time |
Zero |
|||
Waveform |
Pure sine wave |
|||
Crest Ratio |
3:1 |
|||
Overload Capacity (Line Mode) |
102%~105% load, 30min; 105%~125% load, 10min; |
|||
Overload Capacity (Battery Mode) |
102%~105% load, 10min; 105%~125% load, 1min; |
|||
Battery |
||||
Battery Type |
Sealed lead acid maintenance free |
|||
Battery Voltage |
192Vdc / 240Vdc |
|||
Battery Number |
7Ah*16/20pcs |
External |
9Ah*16/20pcs |
External |
Charging Current |
1A |
1-12A settable |
1A |
1-12A settable |
Efficiency |
||||
Line Mode |
95% |
|||
Battery Mode |
94.5% |
|||
ECO Mode |
98% |
|||
Communication |
||||
Interface |
RS232 / USB/ SNMP card(optional) /Dry contact card (optional) |
|||
Environment |
||||
Operation Temperature |
0~40℃ |
|||
Humidity |
0~95%(non-condensing) |
|||
Noise |
≤50dB@1meter away |
|||
Altitude |
Up to 1000m without derating |
|||
Physical |
||||
Dimensions (W*D*H) mm |
250*523*602 |
190*437*322 |
250*523*602 |
190*437*322 |
Weight (kg) |
68/75.8 |
15 |
75/84.2 |
17 |
