wire bending machine
3 year ago
We've assigned professional engineers and workers to utilize technology and other state-of-the-art technologies to manufacture automatic line wire stirrup bending machine for max single wire D16mm Double wire D12mm.As a kind of product with multi-functions and proven quality, it has a variety of uses in many fields including the Rebar Bending Machine field.
Product description
|
Traction Motor Power |
7.5kw |
|
Bending motor power |
15.1kw |
|
line working ability |
Double line steel bar:6-10mm |
|
single line steel bar:6-16mm |
|
|
Production efficiency(num/h) |
2100 |
|
Max bending angle (positive, negative) |
180° |
|
Max feeding speed(m/min) |
70 |
|
Max bending speed(°/s) |
1000 |
|
Length accuracy(mm) |
±1 |
|
Angle accuracy(°) |
±1 |
|
Dimensions of machine(mm) |
2350*1300*1050 |
|
Weight of machine(kg) |
1600 |

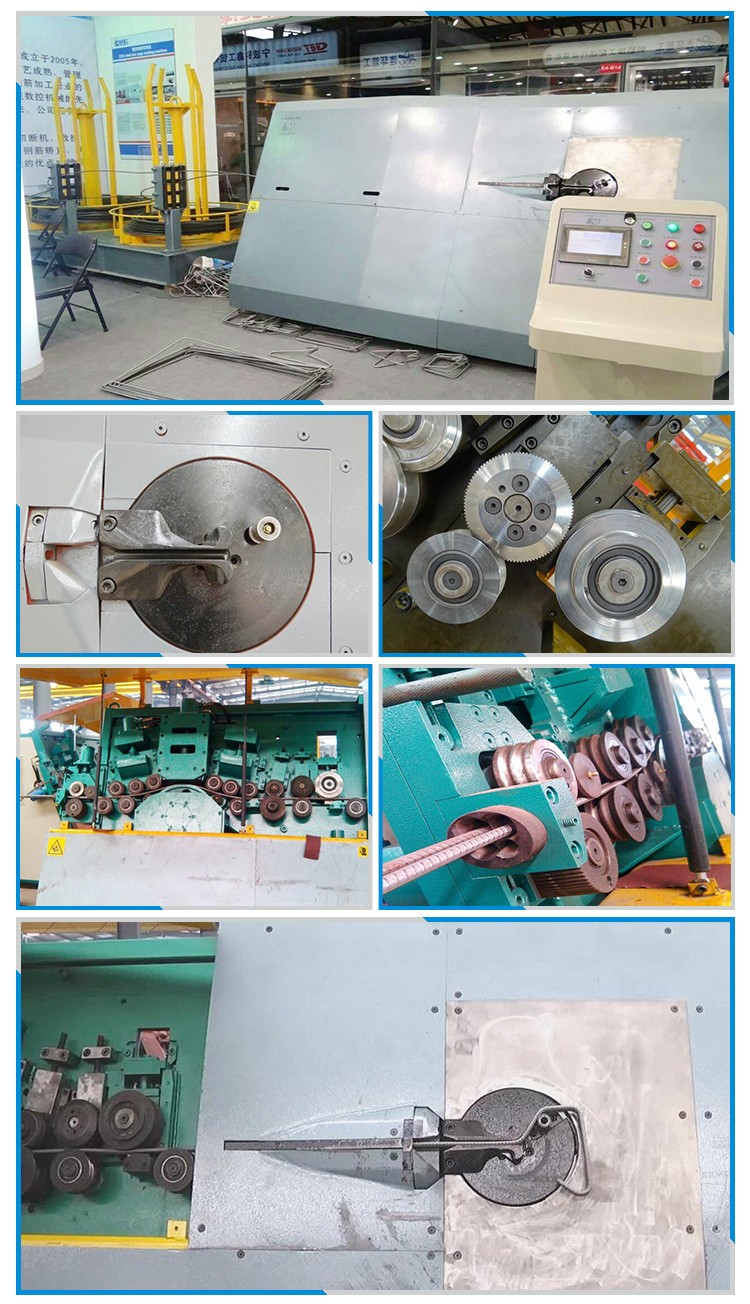

Automatic rebar stirrup bending machine,steel wire bender hine equipped with imported PLC system and servo motor, which can perform steel bar straightening, sizing, bending process and cutting etc. For the machine, the max bending diameter of steel bar is 12mm, it also can transfer steel bar to many types of geometrical shapes.
The stirrup benders are extensively used in construction, large-scale reinforcing bar process factories etc.
1.High accuracy frictional progressive feeding mechanism, harmless to steel bar rib.
2.With double line feeding system, the benders can greatly increase the productivity and ensure synchronous double rebar feeding, especially suitable for processing the new grade Ⅲ coiled rebar.
3.With the function of quick back and forth bending, the double vane bending die has improved its bending performance.
4.Powerful hydraulic shearing mechanism with good reliability.
5.The powerful memory database provides hundreds of shapes for using.
6.Hydraulic adjusting and straightening mechanism saves time and power, enhances the straightening effect.
7.Threading mechanism driven by hydraulic motor, fast threading and quick reload.
8.Bending scope of coiled rebar ranges from 6mm to 12mm
9.Controlling system equipped with Panasonic PLC, Panasonic touch screen and Inovance servo motor.

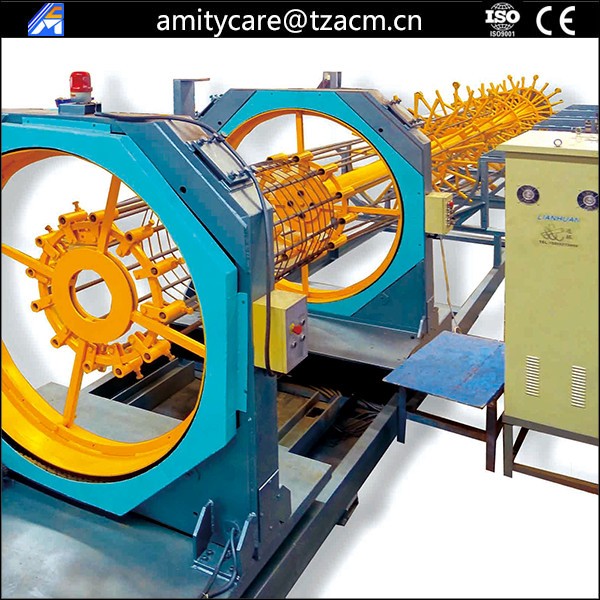

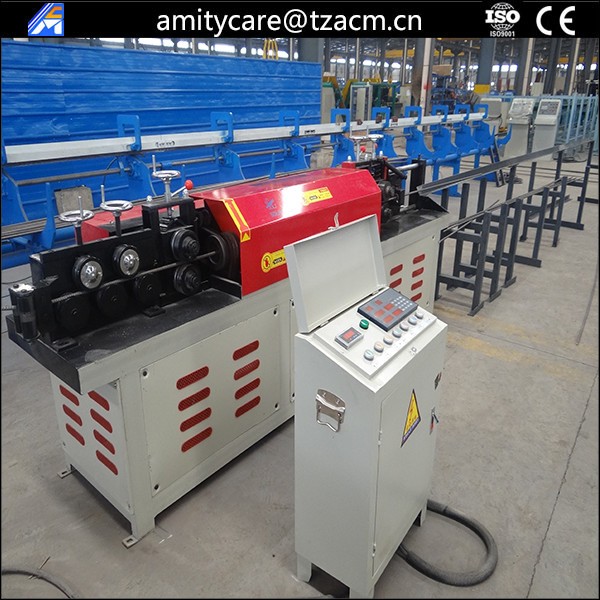

straightening and cutting machine CNC pile cage welding machine steel bar heading machine
We are manufacturers of centrifugal spinning machine ,mould ,heading machine ,cutting
machine,cage welding machine , tension jack for pre-stress .feeding machine for different
capacity ,weave welding machine ,sheet cutting machine etc. we also can supply setting up
a new factory full line service . We have already exported various kinds of concrete pile ,
pole and pipe concern making machines to overseas countries and regions such as indonesia
,parkistan,Vietnam ,myanmar ,korea,malaysia ,south african etc .Mideast, Southeastern Asia.
