Product details

The fully automatic plastic cup hot stamping machine is a device used for hot stamping on the surface of plastic cups:

Working principle

By heating the hot stamping plate, the metal foil on the hot stamping paper is transferred to the surface of the plastic cup under a certain temperature and pressure to form the required hot stamping pattern or text.

Structural composition

• Feeding system: Common methods include conveyor belt feeding and vibration plate feeding to ensure that the cups enter the hot stamping station in an orderly manner.

• Hot stamping system: The core component is the hot stamping head, which is equipped with precise temperature control and pressure regulation devices to ensure the hot stamping effect.

• Positioning system: Mechanical positioning, optical positioning, etc. are used to ensure that the cup is accurately positioned during the hot stamping process and the pattern is accurately printed.

• Control system: Realize automatic control of the hot stamping process, and can set parameters such as hot stamping speed, temperature, and pressure.

Performance characteristics

• Efficient automation: Automatically complete operations such as feeding, positioning, hot stamping, and unloading to improve production efficiency and reduce labor costs.

• High hot stamping accuracy: Equipped with high-precision positioning and control systems, the hot stamping pattern is clear, complete, and firm, which improves product quality.

• Wide range of applications: It can adapt to plastic cups of different shapes and sizes, and can also replace the hot stamping plate to achieve hot stamping of various patterns and texts.

• Good quality stability: Precisely control parameters such as temperature and pressure to ensure stable and consistent hot stamping quality and reduce the defective rate.

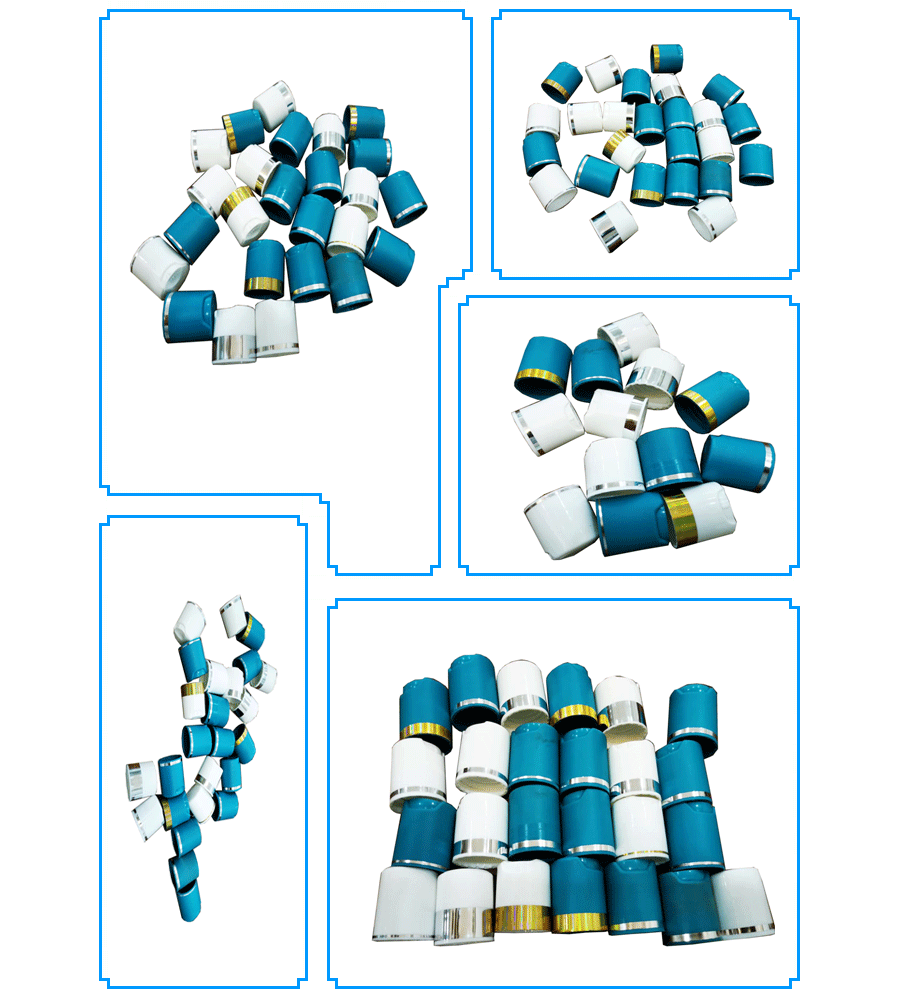

Application-printed Samples

Parameter

ITEM	Standard Items	Q
1	100mm stainless steel conveyor ( Customized on customer products)	1
2	Feeding robot	1
3	5 stations rotating workbench	1
4	IR Heating system	1
5	Independent Stamping Plate adjustment device	1
6	Fixture for samples	8
7	Automatic foil feeding and collecting device
8	High accurate Splitter
9	World brand electronic control components	1
10	PLC Operation system	1
11	Automatic positioning system	1
12	Safety cover	1

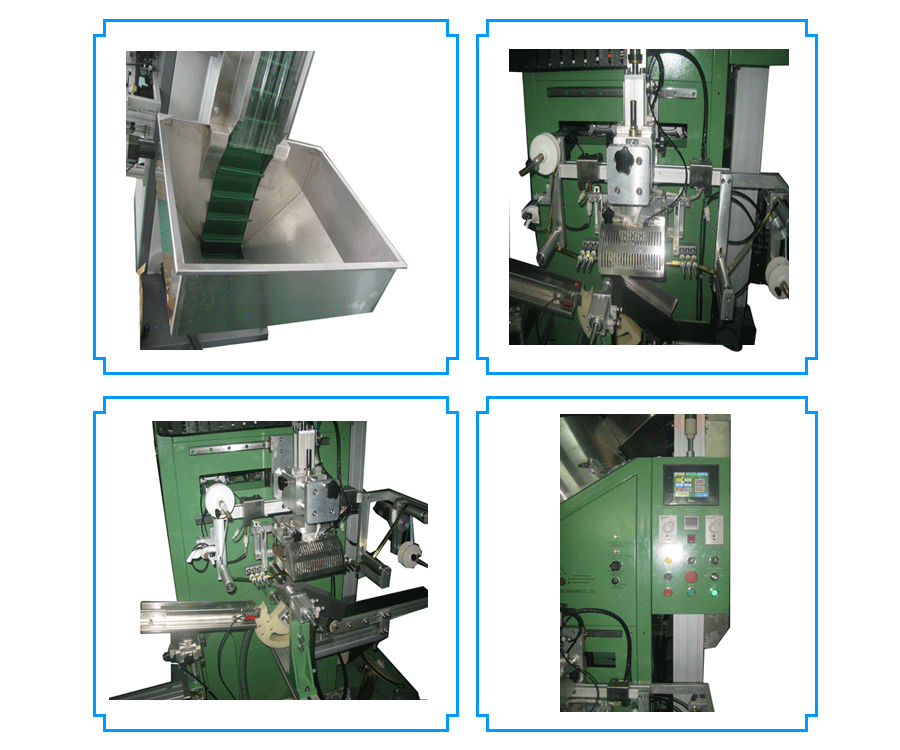

Details

Machine parameters:

Hot stamping speed: 30-45PCS/min
Hot stamping size: (Ø8mm~Ø22mm)xH(10mm~100mm)
Compressed air: 0.5~0.7Mpa
Power supply: 380V/50Hz
Total power: 6KW
Volume: 1000mm*1128mm*1780mm (length*width*height)
conveyor belt not included
Net weight: 800KG

Machine Configuration

Inovance servo motor + Taiwan TBI screw drive ironing head;
Non-hot feeding and anti-fooling sensor device for positioning;
Japanese OMRON touch screen and Japanese Panasonic PLC control system;
(brands can also be made according to customer requirements)
Main motor and gearbox are made in Italy TRANSTECNO;
The turntable and fixture are all high-precision grinding;
Adopt Japan SMC and Taiwan AirTAC solenoid valve and cylinder;
Imported Texaco precision splitter;
Prevent the phenomenon of abrasion during the working process of the product;
The machine is equipped with a set of jigs.

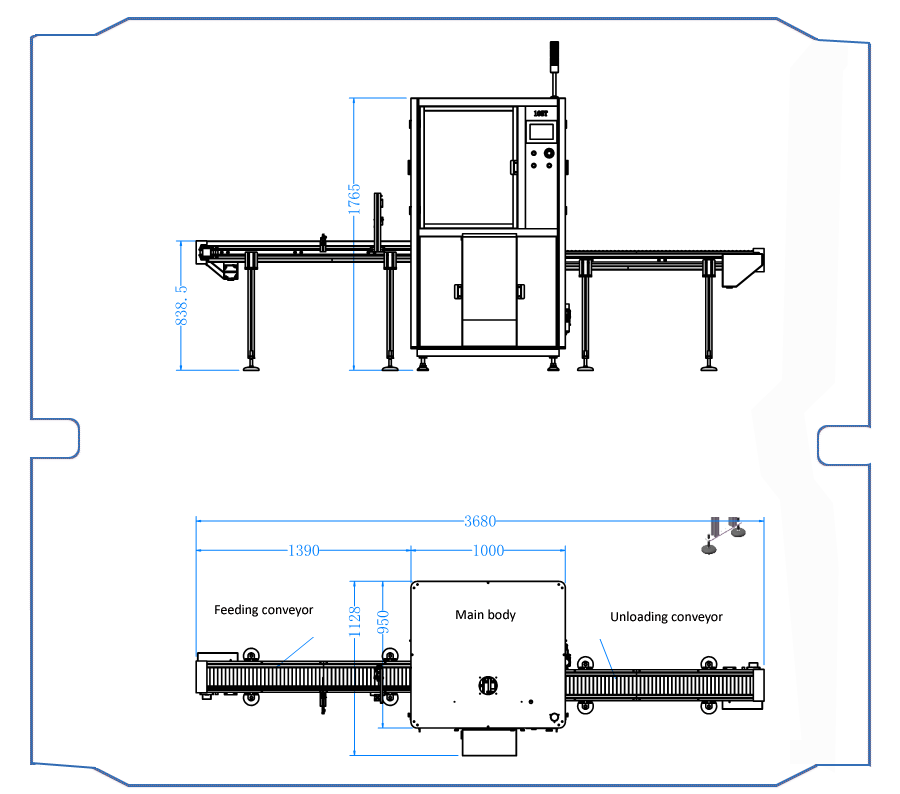

Size
