Fully auto multi-color Cups printer//Characteristics

• Automatic screen printing machine;
• Designed specifically for the printing of hollow plastic bottle design independent feeder, efficient printing, and other containers can be converted mold printing, simple operation, save a lot of manpower to provide complete solutions for the plant productivity is low.
• Market fully automatic screen printing machine in bottles all the connection type screen printing system, bottle finished the first color, into the second printing unit to the second color screen printing. Tolerance in the length direction, the type of screen printing machine can do a 5-color to six colors.

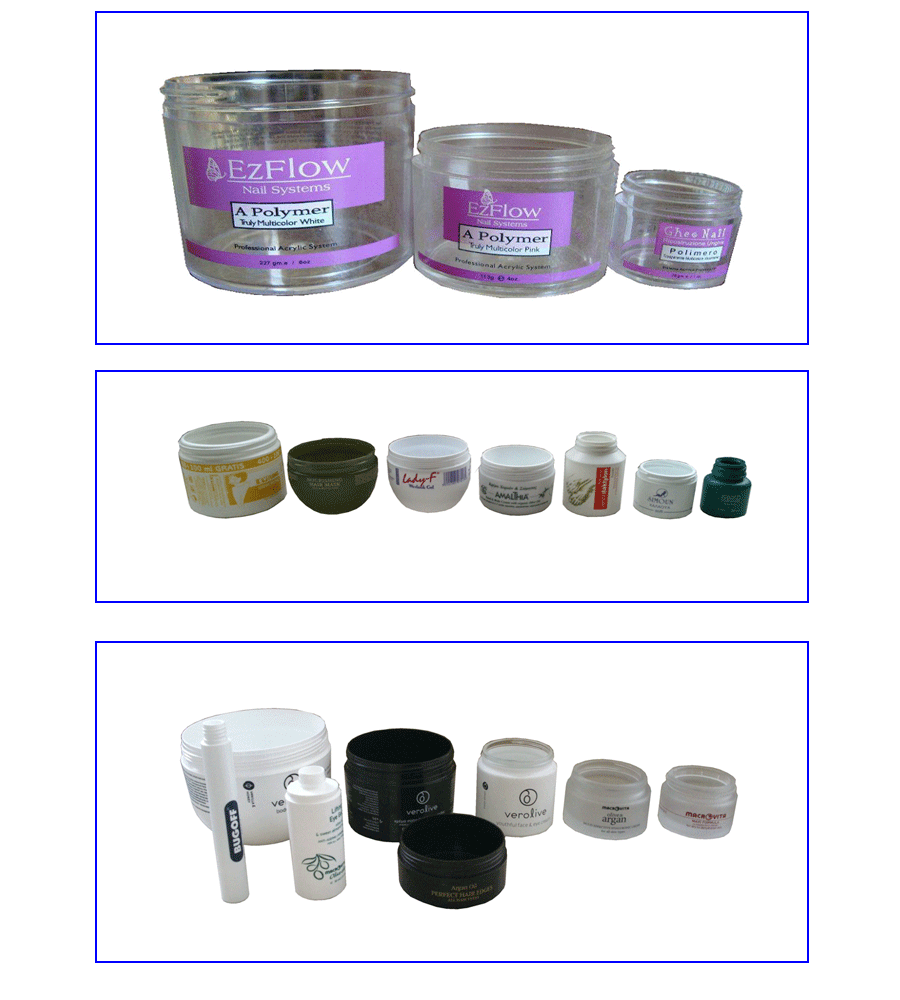

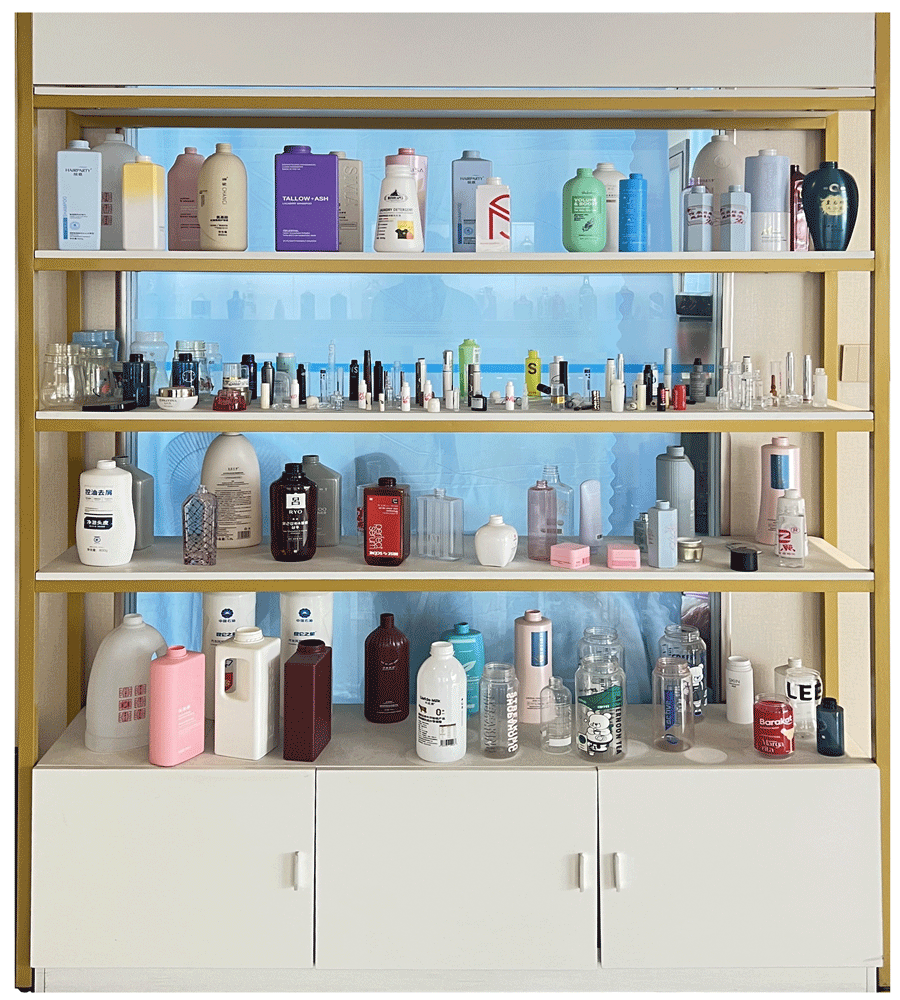

• Cosmetics, pharmaceuticals and food industry within the round, flat, square container on the surface of the printing of various patterns, such as cosmetic bottles, detergent bottles, beverage bottles, milk bottles, space cups, filters, jars and other high-speed screen printing

Fully auto multi-color cups printer//Technical Parameters

• Round-object Max printing stroke: 300 mm;
• Oval-object Max Printing stroke: 120 mm;
• Round-object Max Printing speed: 4000 pc/h;
• Oval-object Max Printing speed: 4500 pc/h;
• Work piece size(Round): Diameter:25-100 mm;Length:60-300 mm;
• Work piece size( Oval): Width:25-260 mm, Length:60-300 mm;
• Power supply: AC380V,3Phase ,45A/(1-3Colour),100A/(4-5Colour);
• UV Lamp wattage: 4KW/pc;
• UV Exhaust fan wattage: 0.2KW;
• Exhaust rate: 11.6 m3/min;
• Motor Wattage: 0.75KW;
• Reduction gearbox : 1:7.5;
• Feeding motor wattage : 0.75KW;
• Fixture motor wattage : 0.5KW;
• Vacuum Pressure : 500 mm/Ag;
• Flame gas: Liquefied Petroleum gas( LPG);
• Air : 6 Bar;
• Power: 3 phase 380V,45A/(1-3C),100A/(4-5C);

• 5-7Bar Compress air ;
• Liquefied petroleum Gas, Natural gas

• Package Dimension:   2085×1270×1820mm;(5pcs)
• Gross weight: 900Kg
• CBM: 4.81927

Fully auto multi-color cups printer//Main configuration

• Mainly Motor:SITI (Italy)
• Feeding Motor :Panasonic(Japan)
• PLC: Omron(Japan)
• Rotary Encoder: Omron(Japan)
• Sensor: Optec(Japan)
• Touch Screen: Proface( Japan)
• Switch: Schneider( France)
• Contactor: Schneider (France)
• Relay: Idec (Japan)
• Inverter: Omron(Japan)
• UV Curing System: Primarc ( England)
• Pneumatic part: Festo (Germany
