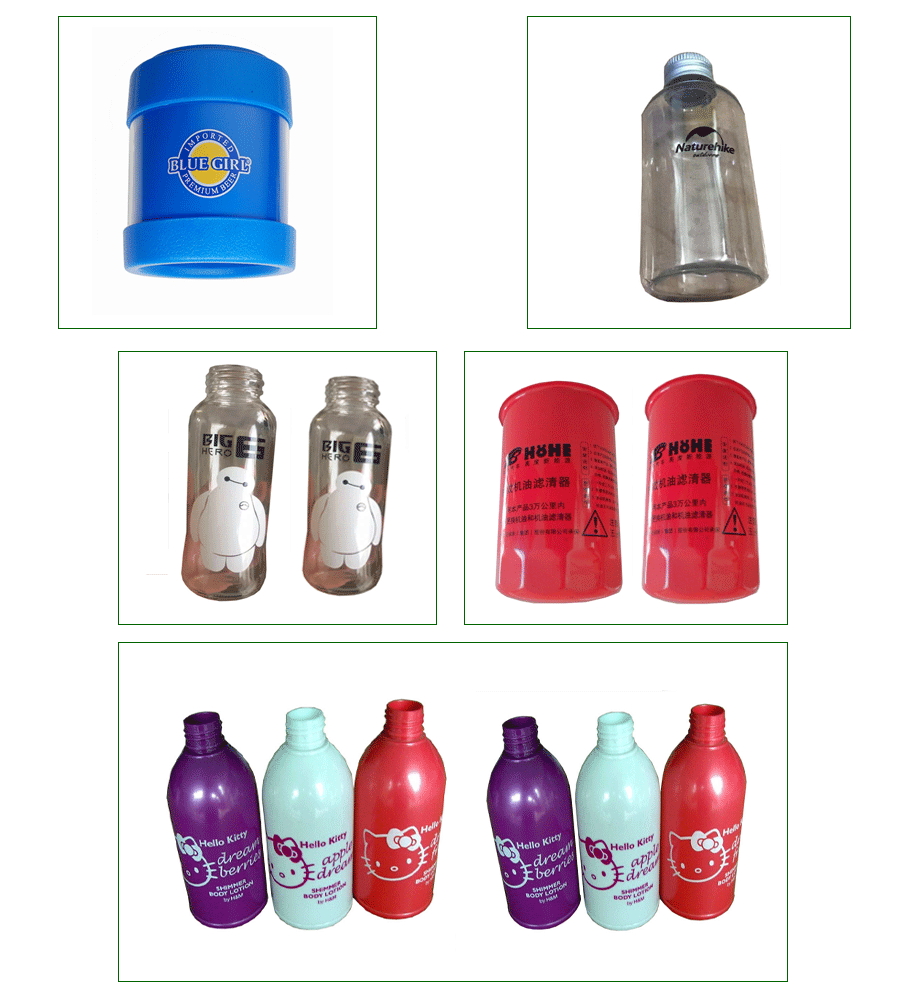

Samples

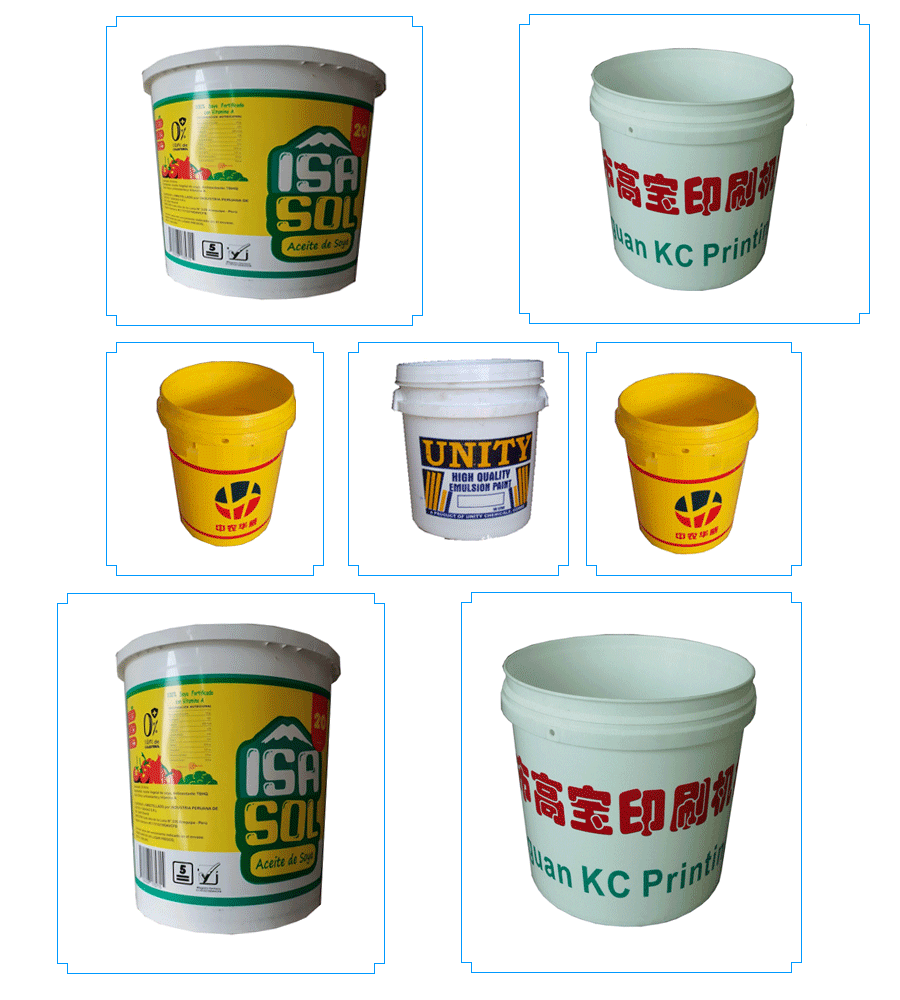

      Plastic barrels with a diameter of more than 200mm are widely used in product packaging, such as: lubricating oil, coatings, paint, atomic ash, they are usually made of PP and PE are made of plastic. Printing such a plastic barrel must use a specially designed large -scale automatic screen  printer, which is the enlarged design  of the container screen printing machine.
      Plastic barrel screen printers have roughly the same structure and ordinary dragon screen printer:
1) Feeding conveyor belt: it is a conveyor belt. The operator can put the bucket on the conveyor belt. The conveyor belt can automatically transfer the plastic barrel to the suction position, and the nozzle of the machine will suck the plastic barrel into the transmission table of the screen printing machine. In order to reduce artificially as possible, it is also a trend to use  robots to place plastic barrels on the transmission belt.
2) Flame treatment: In order to improve the adhesion of the polyolefin material, the machine also configures the flame treatment head to treat its surface.
3) Silk printing system: The screen printing system of the automatic screen printing machine adopts plastic barrel rotation, and the screen plate  of the movement form. In order to improve the printing efficiency and accuracy, the left and right movement of the screen plate can be controlled by a servo motor. The pneumatic components use a well -known international brand. Essence The main structure of the machine is welded with steel plates, which is more durable.
4) UV drying system: For continuous high -speed silk screen printing, the important choice to ensure that the screen plate is not blocked is to use ultraviolet ink. UV ink can only dry under UV light. High characteristics.
5) Uninstallation system: The printed products will be placed on the conveyor belt in an orderly manner for quality testing.

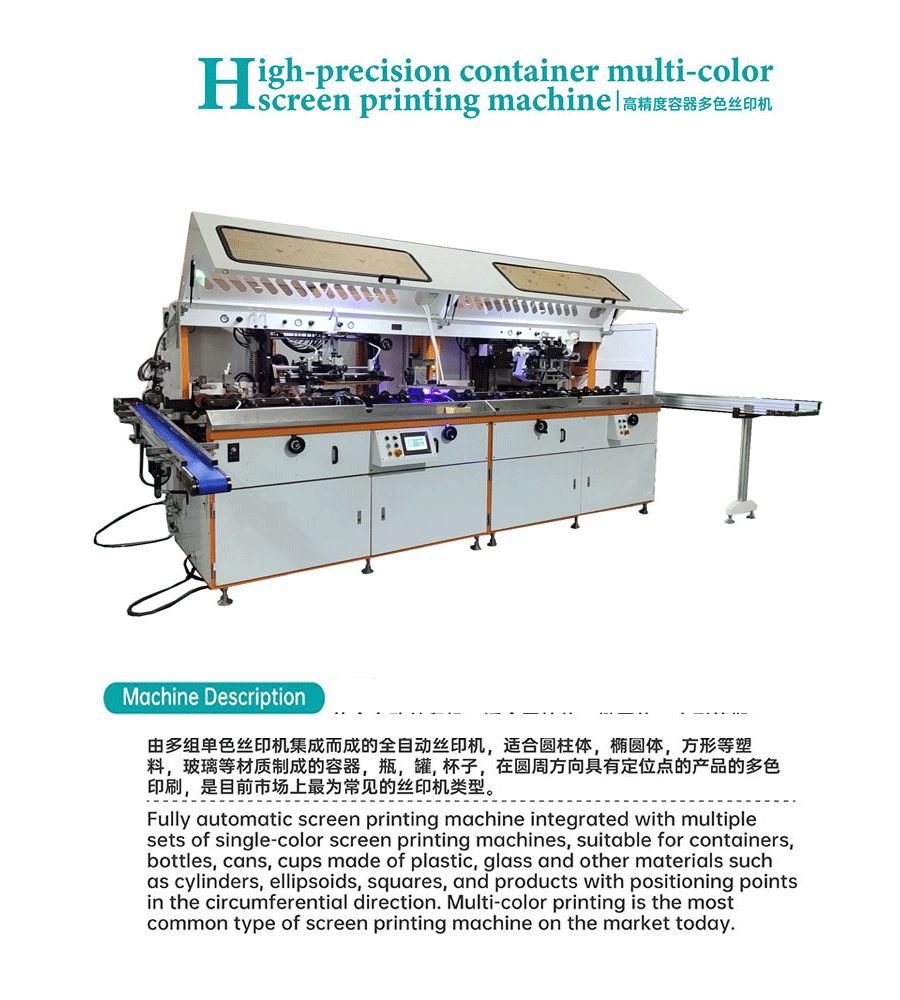

    The fully automatic plastic barrel screen printer is generally composed of the host and several monochrome printed machines, which can be connected into two colors, three colors, four colors, five colors, six colors.

Description

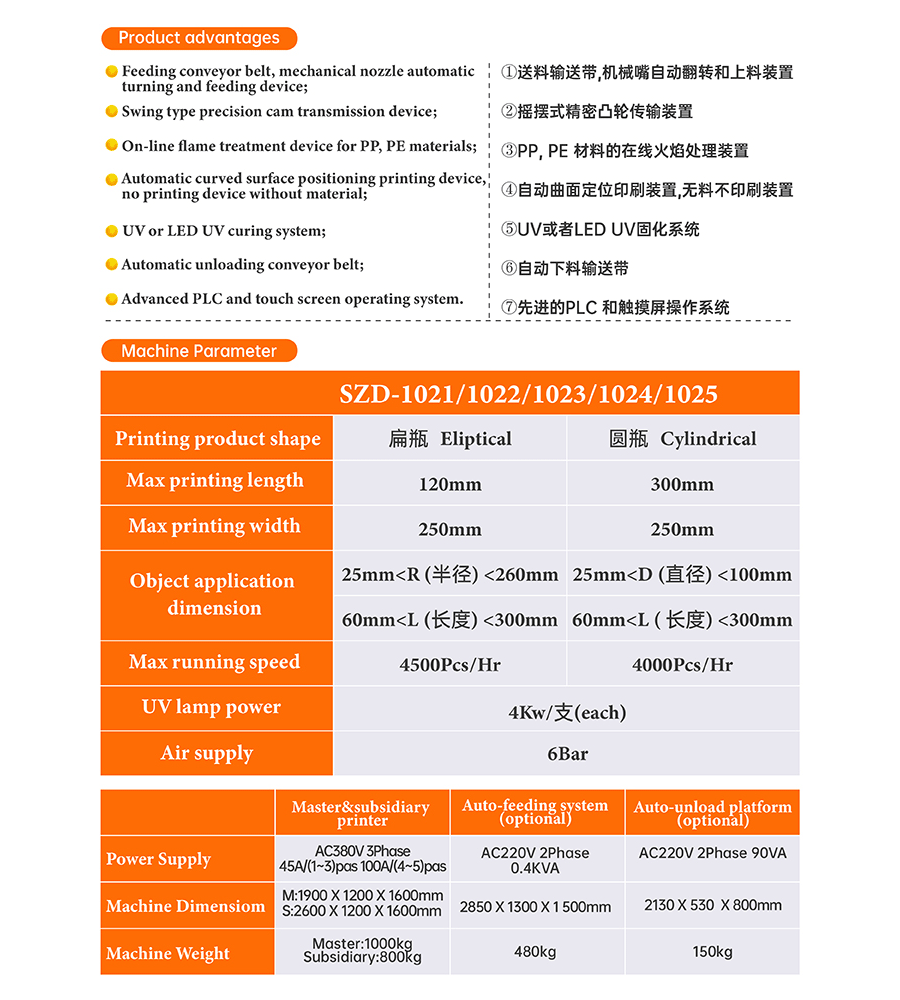

SZD-1023B Full automatically screen printing Machine//Parameter

                      Catalogue

Install size
