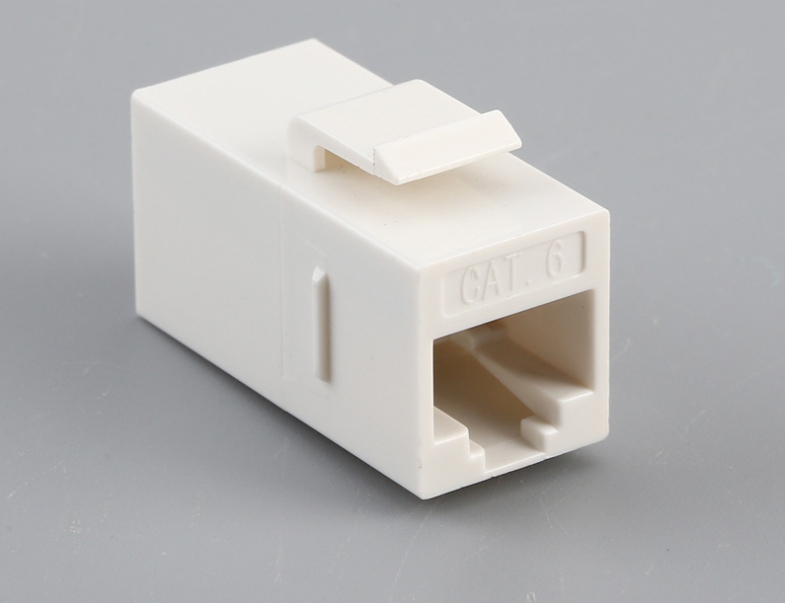

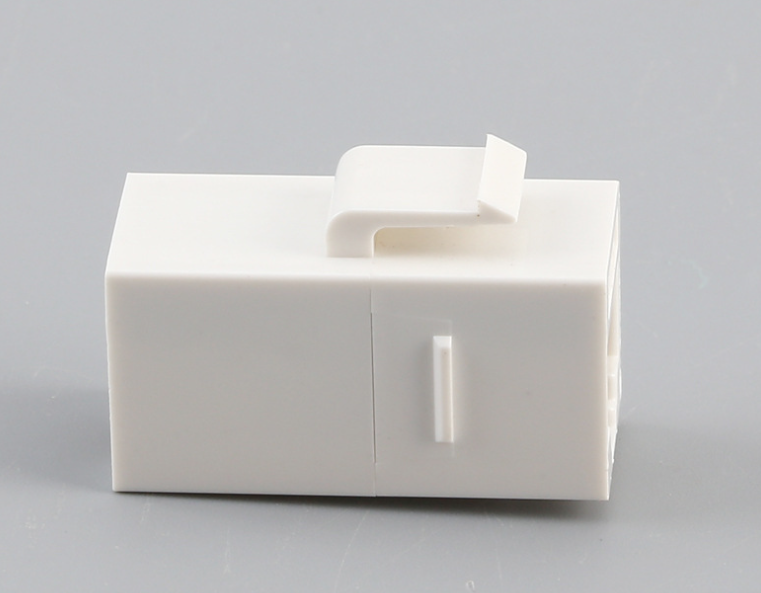

UTP CAT6 RJ45 Modular Inline Coupler jack T568A T568B wiring color code

What is a keystone jack? A keystone jack is a female connector used in data communications, particularly for local area networks LANS, usually mounted in a wall plate or patch panel. T568A and T568B are the two wiring standards for an 8P8C modular connector, RJ45 connector, permitted under the TIA/TIA-568 C.2 wiring standards color code schema. The only difference between T568A vs T568B is the oring and green wire pairs ( pair 2 & pair 3) are interchanged. Both T568A & T568B wiring schemas are labeled on the housing of keystone jack. The CAT5E and CAT6 wiring diagrams with corresponding colors are twisted in the network cabling and should remain twisted as much as possible when terminating them at a jack.

Because we take great pride in our quality control procedures and our commitment to quality our keystone jack's line meets all requirements for EIA/TIA and also inspected and tested to comply with stringent transmissions and satety standards. Our kesytone jacks are available in a variety of colors to help organize our custimers installation.

• Electrical:
• Voltage rating: 125V AC rms
• Current rating: 1.5Amp Max
• Mating cycles: >750 insertions
• Contact resistance: 100MΩ (maximum)
• Insulation resistance: 1000MΩ (minimum) at 500V DC
• Dielectric strength: 750V AC rms, 60Hz and one minute
• Specifications:
• UTP Cat6 keystone jack , 180 Degree RJ45 Coupler
• T568A / T568B wiring
• Fluke, RoHS compliant
• Small sample orders are accepted
• Storage temperature: -40 to +85°C
• Operating temperature: 0 to 70°C
• Mechanical:
• Housing material: PC UL94V-0
• Inner material: flame-retardant ABS UL94V-0
• PCB material: FR-4 UL94V-0
• Wire: 22 to 26AWG solid wire.
