UNKJ152SC6A RJ45 Toolless connector plug

4 year ago
103 0
Product details

We believe that the great product quality brings the great networking. We hold our CAT6A shielded RJ45 connectors to high standards with our customer and their network in mind. Even with something as small as an RJ45 connector, we get it reliable and blazing fast.

These RJ45 shielded connector plug are designed to work specifically with CAT6A cable. These RJ45 contacts are gold plated. They have 8 pins and 8 conductors (8p8c) with inserts included as part of the design. The wire alignment insert provides an efficient termination without any need of tools. A cable stripper is however recommended to expose the inner conductors. So here we’re going to concentrate on cable management in the office-related environment meeting the cat6 cat6a cat7 cat8 keystone jack, patch panel cabling system.


This connectors Housing is shielded with zinc die-cast nickel plating. This makes our CAT6A plugs more durable while being less prone to corrosion and rust. All our Category 6A Plugs come standard with two different sizes of boots. These boots provide better stress relief support around the connection point of the cable and connector.



  *Ideal for high performance CAT6A Networks needing to reach 10G Speeds

  *Meets CAT6A performance requirements per ANSI/TIA-568-C.2-1

  *Housing is shielded with zinc die-cast nickel plating

  *Tool-less termination saves time and money

  *Strain relief boots are included

  *Backwards compatible with CAT6 system

  *Selectively plated contacts with 50 micro-inches of gold

  *Suitable for shielded solid & stranded 22 AWG to 26 AWG solid wire

  *Power over Ethernet (POE) capabilities

  *T568A & T568B wiring

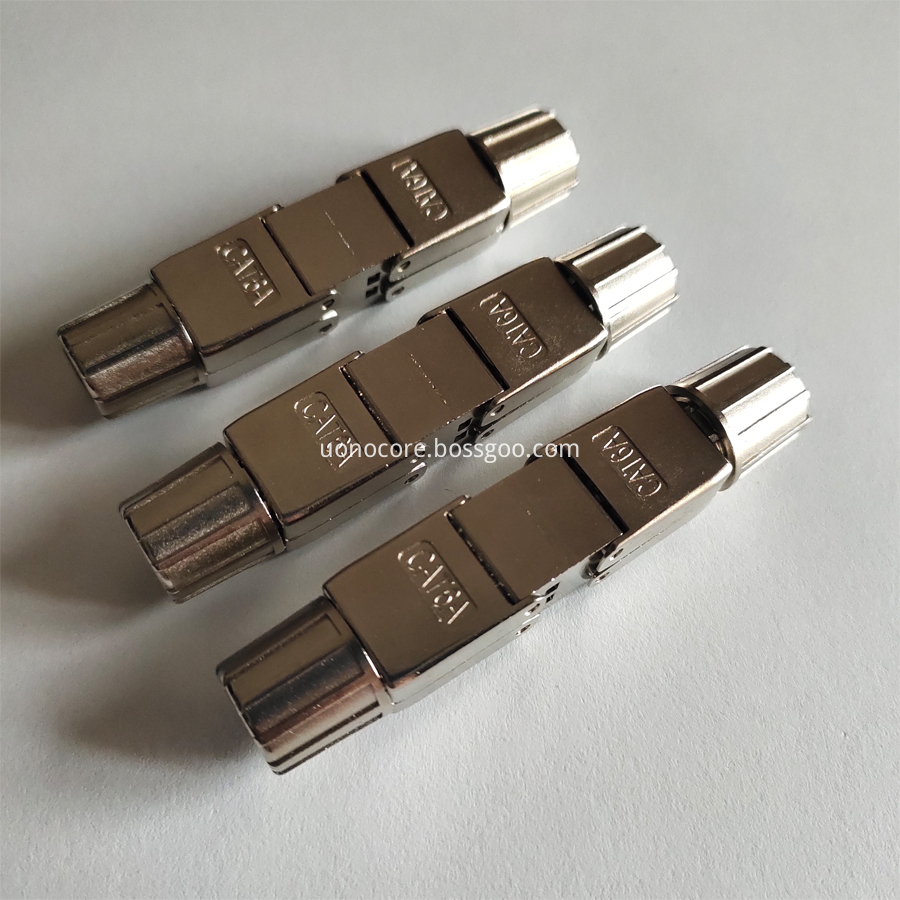

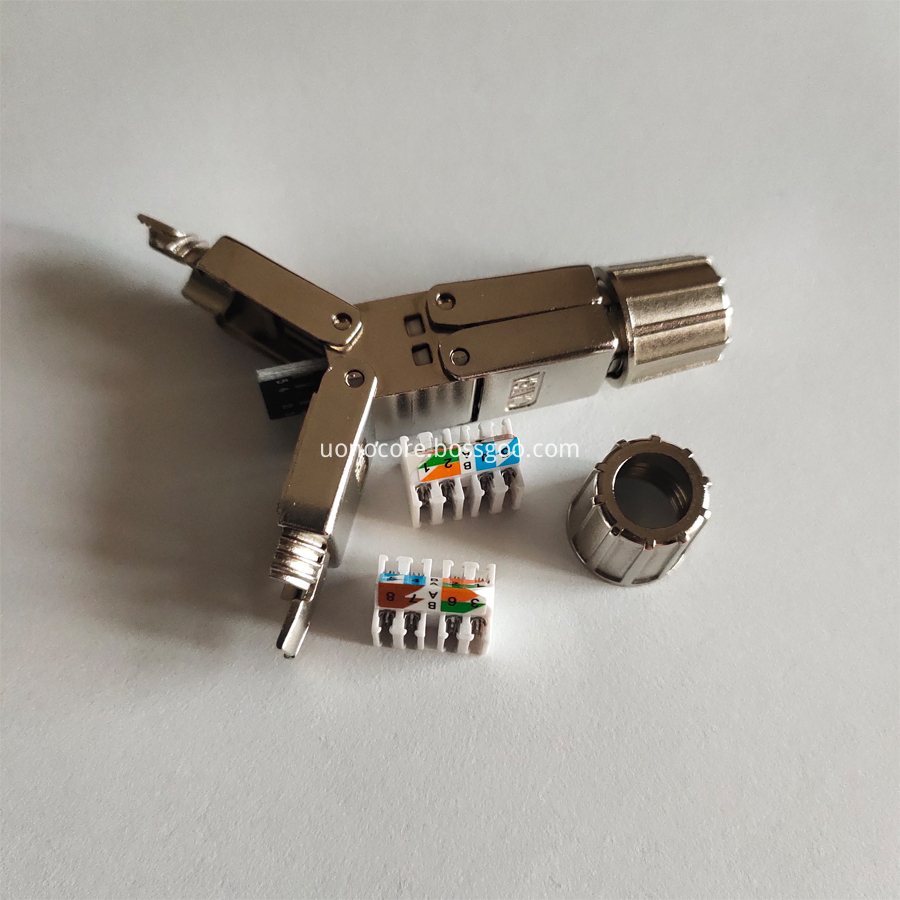

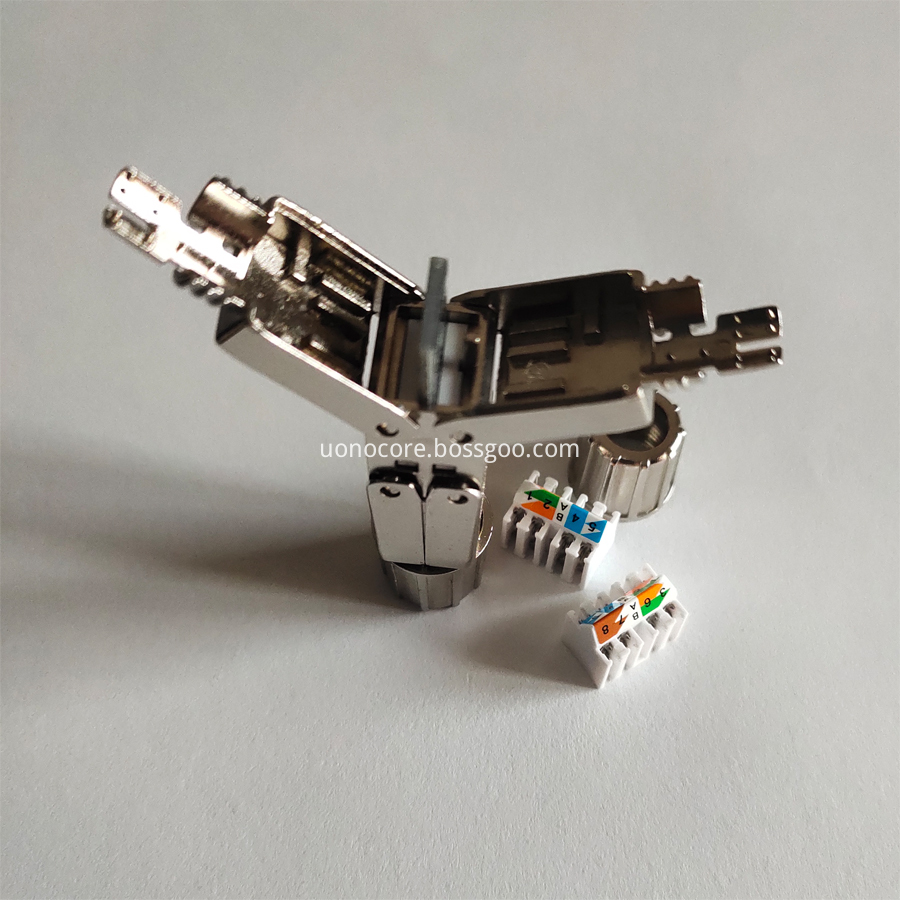

CAT6A Shielded Connector plug CAT6A STP RJ45 Connector plug RJ45 CAT6A Shielded Modular plug

  • Electrical:
    • Voltage rating: 125V AC rms
    • Current rating: 1.5A
    • Mating cycles: >750 insertions
    • Contact resistance: 100MΩ (maximum)
    • Insulation resistance: 1000MΩ (minimum) at 500V DC
    • Dielectric strength: 750V AC rms, 60Hz and one minute
  • Specifications:
    • STP Cat6A RJ45 Connector plug , 180 Degree
    • T568A / T568B wiring
    • Fluke, RoHS compliant
    • Small sample orders are accepted
    • Storage temperature: -40 to +85°C
    • Operating temperature: 0 to 70°C
  • Mechanical:
    • Housing material: PC & Zinc die-casting
    • Inner material: flame-retardant ABS UL94V-0
    • PCB material: FR-4
    • Wire: 22 to 26AWG solid wire.
