UNKJ116UC6 CAT6 Toolless RJ45 Keystone jack.mp4

4 year ago
116 0
Product details

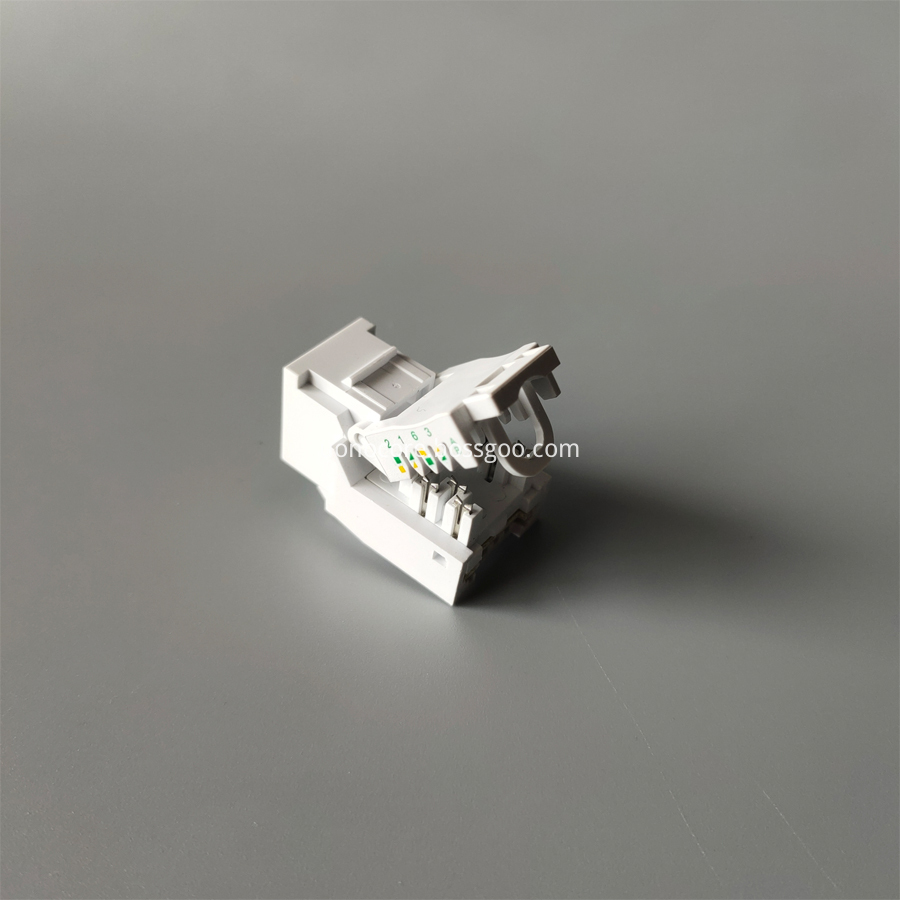

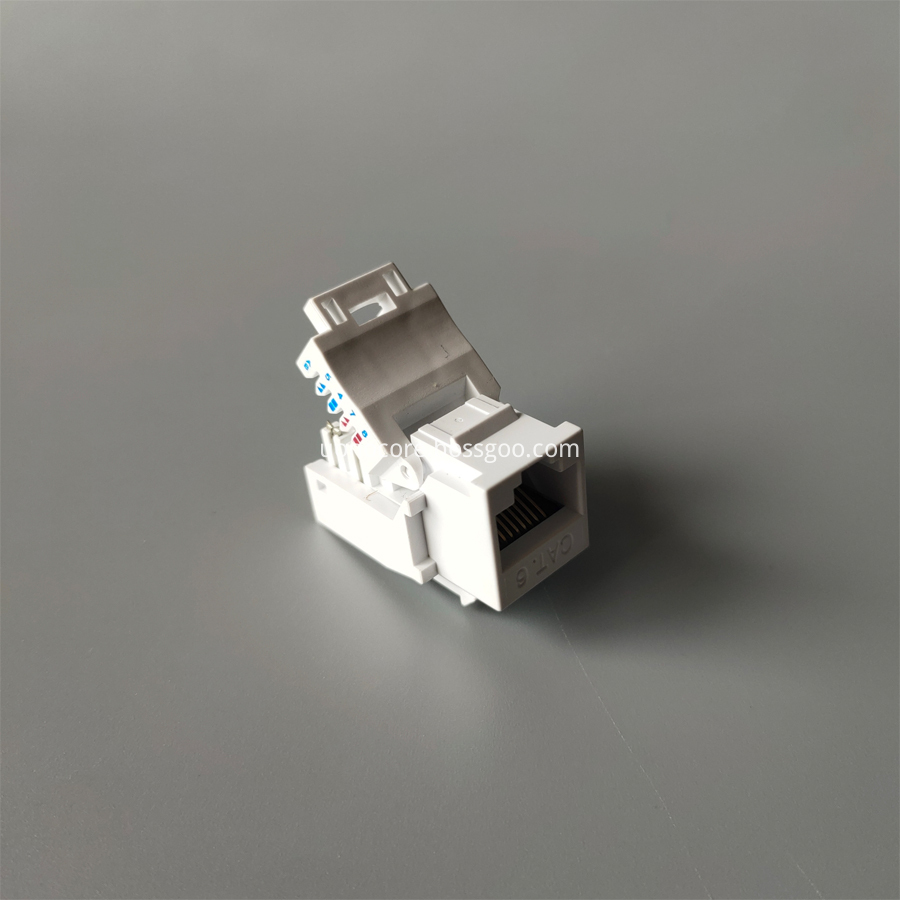

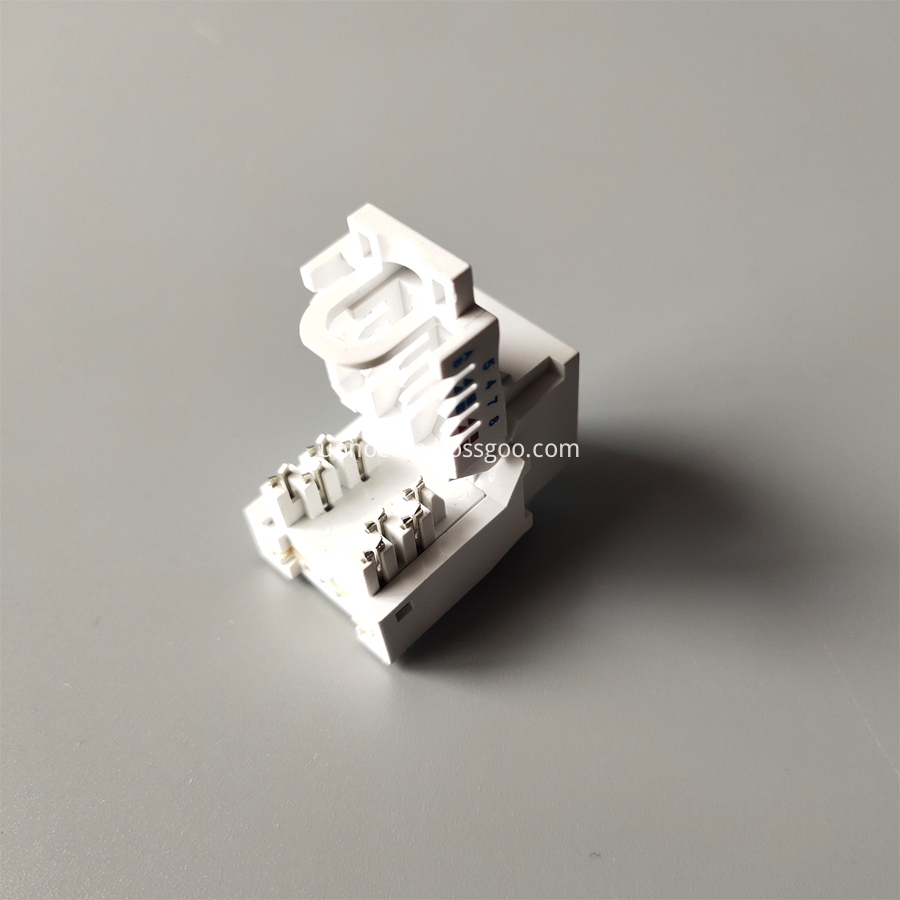

UTP CAT6 RJ45 Keystone Jack, 90 degree Toolless type wiring installation.

The UTP vertical wiring unshielded CAT6 keystone jack were designed with the user in mind, complete with the T568A/B wiring guide for each jack. To make sure durability they are made of Phosphor bronze for IDC contacts, Gold plated,UL94V-0 plastic housing. Our keystone jacks were engineered to simplify the termination helping you save time and money with features like easy to read wiring labels and 110 IDC termination.

Because we take great pride in our quality control procedures and our commitment to quality our keystone jack's line meets all requirements for EIA/TIA and also inspected and tested to comply with stringent transmissions and satety standards. Our kesytone jacks are available in a variety of colors to help organize our custimers installation.

CAT6 Toolless keystone jack  UTP CAT6 Toolless RJ45 JACK  UTP CAT6 RJ45 Jack


  • Electrical:
    • Voltage rating: 125V AC rms
    • Current rating: 1.5A
    • Mating cycles: >750 insertions
    • Contact resistance: 100MΩ (maximum)
    • Insulation resistance: 1000MΩ (minimum) at 500V DC
    • Dielectric strength: 750V AC rms, 60Hz and one minute
  • Specifications:
    • UTP Cat6 keystone jack , 90 Degree
    • T568A / T568B wiring
    • Fluke, RoHS compliant
    • Small sample orders are accepted
    • Storage temperature: -40 to +85°C
    • Operating temperature: 0 to 70°C
  • Mechanical:
    • Housing material: PC UL94V-0
    • Inner material: flame-retardant ABS UL94V-0
    • PCB material: FR-4
    • Wire: 22 to 26AWG solid wire.
