PVC UPVC pipe extrusion machinery line

Diameter Range (mm):  75 90 110 140 160 180 200mm   wall thickness by request

Main Extruder Motor Power: 37kw

Line Space Occupation: 38mx4mx3m

Capacity: 200-250kg/h

Product Description

Application of PVC,UPVC Wall Pipe extrusion production line / UPVC pipe making machine:

Applied for manufacture of caliber PVC,UPVC water supply and drain pipes,electric conduit pipe, etc

Working flow of PVC,UPVC Wall Pipe extrusion production line / UPVC pipe making machine

Details Images

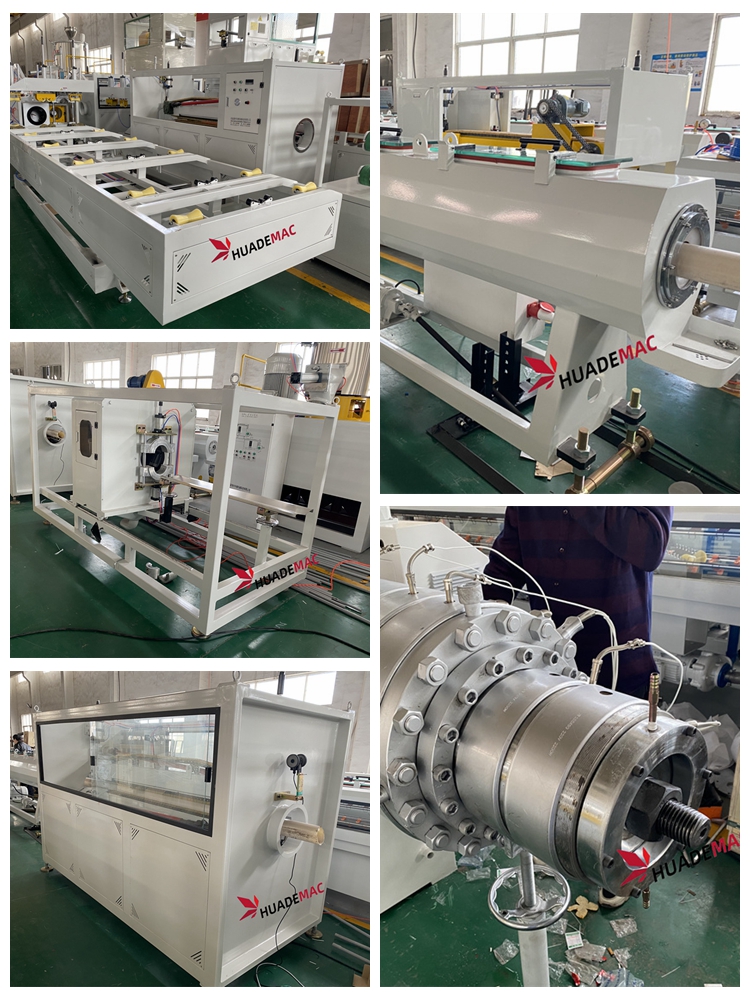

Conical twin screw extruder or parallel twin screw extruder can be applied to produce PVC pipe.With latest technology, to lower power and ensure capacity. According to different formula, we provide different screw design to ensure good plasticizing effect and high capacity.

 Extrusion die head apply bracket structure, each material flow channel is placed evenly.

Each channel after heat treatment, mirror polishing and chroming to ensure material flow smoothly.

Die head is modular design,easy for changing pipe sizes, assembling, dismantle and maintenance.

Vacuum calibration tank is used to shape and cool pipe, so as to reach standard pipe size.

We use double-chamberstructure.First chamber in short length, to ensure very strong cooling and vacuum function.

As calibrator is placed in the front of first chamber and pipe shape is formed mainly by calibrator, this design can ensure quick and better

forming and coolingof pipe.

3 Caterpillar Haul off unit provides sufficient traction force to pull pipe stably.

According to different pipe sizes and thickness,our company will customize traction speed, number of claws, effective traction length.

To ensure matchpipe extrusion speed and forming speed, also avoid deformation of pipe during traction.

Planetary Cutter controlled by Siemens PLC, working together with haul off unit to have precise cutting.

Customer can set the length of pipe they want to cut.Multi-feed-in actions for the accomplishment of one cutting process

(protect blades and saws, prevent from blade and saws stuck for thick pipe and cut face of pipe is smooth).

PVC on-line belling  machine to make socket at pipe end which is easy for pipe connection.

There are three types of belling type: U type, R type and Square type.

We provide belling machine which can finish belling of pipe on

line fully automatic.From min size 16mm to max size 800mm, can with multi heating oven and belling station.
