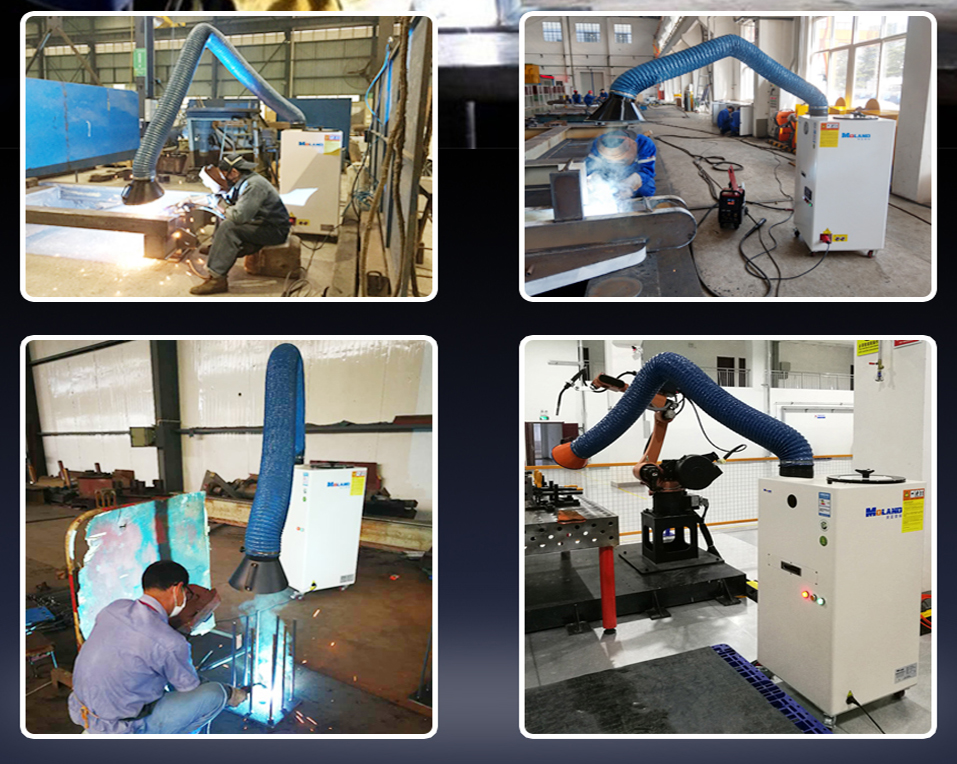

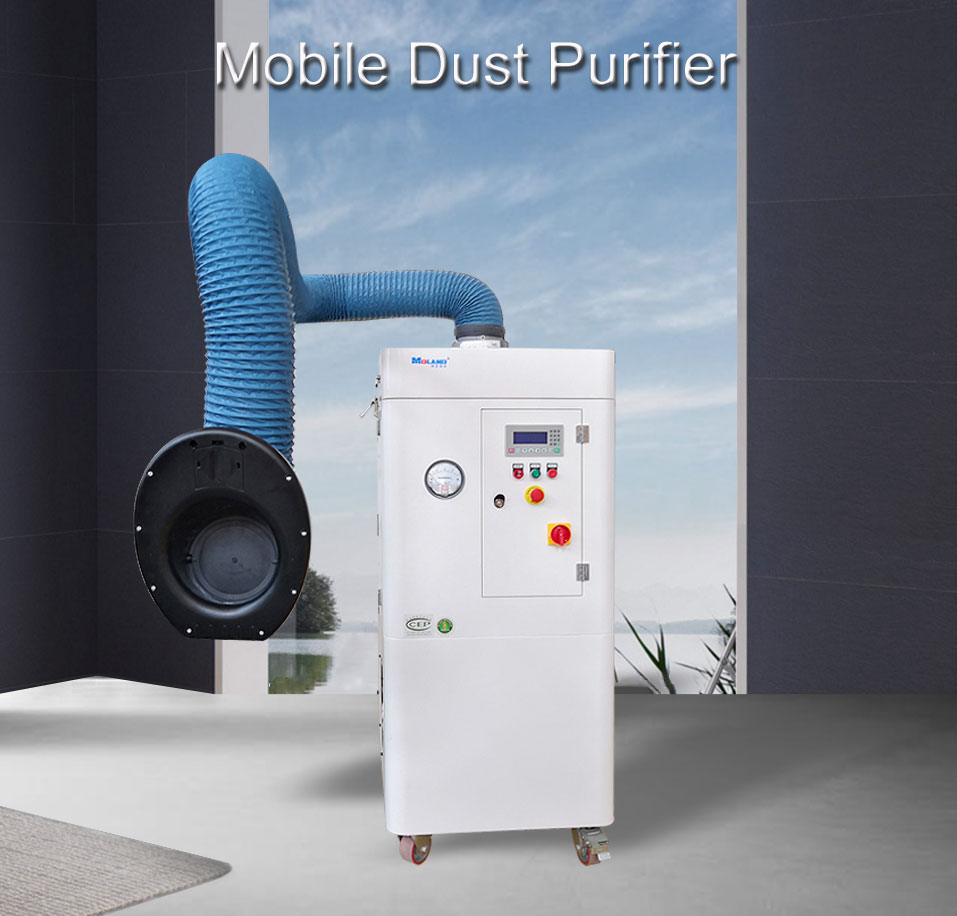

Our MLWF290 Mobile Fume Extractor can extract welding fumes and smoke at source. The MLWF290 Mobile Fume Extractor is with flexible extraction arm, which can be hovered at the right place where welding fumes and smoke producing to meet a high performance dust collection effect.
1- Integral structure, with universal wheel at the bottom, flexible movement and fixing.
4- Operating temperature monitoring: alarm system temperature is too high, preventing fire.
1- Filtration efficiency (>99.9%) of main filter core (covered polyester fiber)
4- Differential pressure gauge
7- Universal flexible arm (dia. 160*3000mm)
8- Spark trap (large particle dust pre-filter)
Special machine for ring and straight welding
| Power | 2.2KW | Spare Parts List |
| Voltage | 380V 50Hz |
Main Filter Element Dia.325*600mm Suction Arm Dia.160*2000mm Suction Arm Dia.160*3000mm Activated Carbon Filter HXT120 |
| Air Volume | 3000m3/h | |
| Accuracy | 0.3um | |
| Filter Material | Imported flame retardant coated polyester fibers | |
| Filter Area | 10m2 | |
| Cleaning | Rotor back blow | |
| Noise | 65dBA | |
| Size | 800*700*1600mm | |
| Weight | 165kg |
Moland is a professtion manufacurer of industrial dust collection system. We mainly supply Mobile Fume Extractors, Industrial Dust Collectors, Welding Fume Exhaust System, CNC Cutting Smoke Extractors, Polishing Downdraft Tables, Laser Marking Fume Extractors, etc. We have professional technical team to design the most suitable dust collection solution according to your workshop condition.
