silicon steel coil
2 year ago
|
Product Name |
Electrical Steel, Lamination Steel, Silicon Electrical Steel, Silicon Steel, Relay Steel, Transformer Steel |
|
Category |
Grain-Oriented Electrical Steel; Non-oriented electrical steel |
|
Standard |
AISI, ASTM, BS, DIN, GB, JIS, EN |
|
Thickness |
0.2- 0.5 mm |
|
Width |
20mm-1200 mm |
|
Brand |
Great Steel |
|
Origin |
China |
|
Packing |
Export standard package (as per requirements) |
|
Payment Terms |
30% T/T in advance as deposit,70% balance against the B/L copy or 100% irrevocable L/C at sight |
|
MOQ |
3 tons per size |
|
Delivery time |
15-40 days after receiving L/C or deposit |
|
Loading Port |
Shanghai , China (any port in China ) |
|
Remark |
Specific requirement of alloy grade,temper or specification can be discussed at your request |
The difference between oriented silicon steel and non-oriented silicon steel
Non-oriented silicon steel: ferrosilicon alloy with very low carbon content. In the deformed and annealed steel sheet, its grains are distributed randomly. The silicon content of the alloy is 1.5% to 3.0%, or the sum of the silicon and aluminum content is 1.8% to 4.0%. The products are usually cold-rolled plates or strips, which are mainly used to manufacture motors and generators.
Oriented silicon steel: It has strong directionality, the lowest iron loss value in the rolling direction, the highest magnetic
permeability, and a higher magnetic induction value under a certain magnetization field. The silicon content of oriented silicon steel is about 3%. It also requires a low content of oxide inclusions in the steel and must contain certain inhibitors (MnS, A1N).
|
Mechanical Property
|
||||
|
Grade
|
Yeild Strength
(N/mm2)
|
Ultra-TensionStrength(N/mm2)
|
Ductility
(%)
|
Hardness
(HV1
|
|
M35W230
|
430
|
560
|
20.0
|
225
|
|
M35W250
|
415
|
550
|
20.5
|
220
|
|
M35W270
|
400
|
515
|
20.5
|
215
|
|
M35W300
|
360
|
480
|
21.5
|
195
|
|
M35W360
|
350
|
480
|
23.5
|
190
|
|
M35W440
|
275
|
420
|
27.5
|
165
|
|
M35W550
|
265
|
415
|
33.5
|
160
|
|
M50W250
|
430
|
560
|
19.0
|
230
|
|
M50W270
|
410
|
550
|
21.5
|
225
|
|
M50W290
|
395
|
545
|
22.5
|
220
|
|
M50W310
|
385
|
510
|
24.5
|
210
|
|
M50W350
|
350
|
475
|
26.5
|
190
|
|
M50W400
|
320
|
460
|
36.0
|
170
|
|
M50W470
|
295
|
425
|
35.0
|
160
|
|
M50W600
|
280
|
410
|
37.0
|
140
|
|
M50W800
|
285
|
405
|
38.5
|
135
|
|
M50W1300(D)
|
250
|
360
|
40.0
|
115
|
|
Insulating Coating
|
||
|
Coating types
|
M11
|
M21
|
|
Component
|
Chromium containing , semi organic coating
|
Chromium free, semi organic coating
|
|
Coating thickness(μm)
|
0.7~1.5
|
0.8~5.0
|
|
Interlayer resistance
(Ω•mm2 /slice)
|
≥100
|
≥100
|
|
Adhesive property
|
Class A or class B
|
Class A or class B
|
|
Punching property
|
Excellent
|
Excellent
|
|
Antirust property
|
Excellent
|
Excellent
|
|
Heat resisting property
|
Resistant annealing at 750 C, N2 protection, for 2h
|
Annealing resistance in general
|

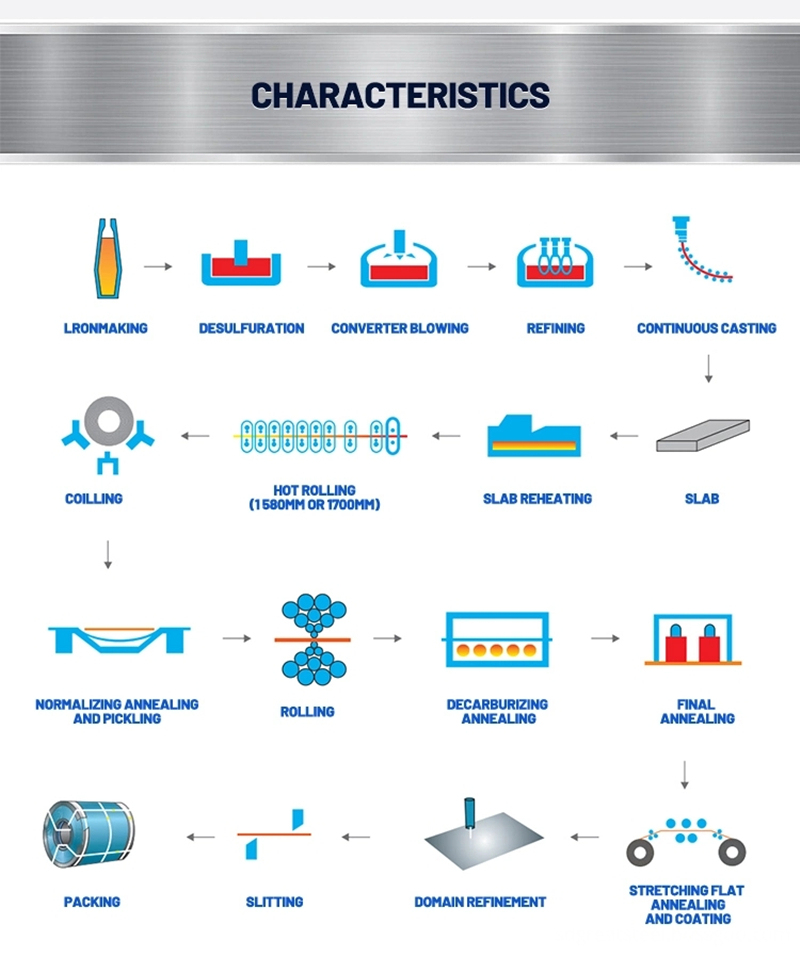

Silicon steel coil Process:

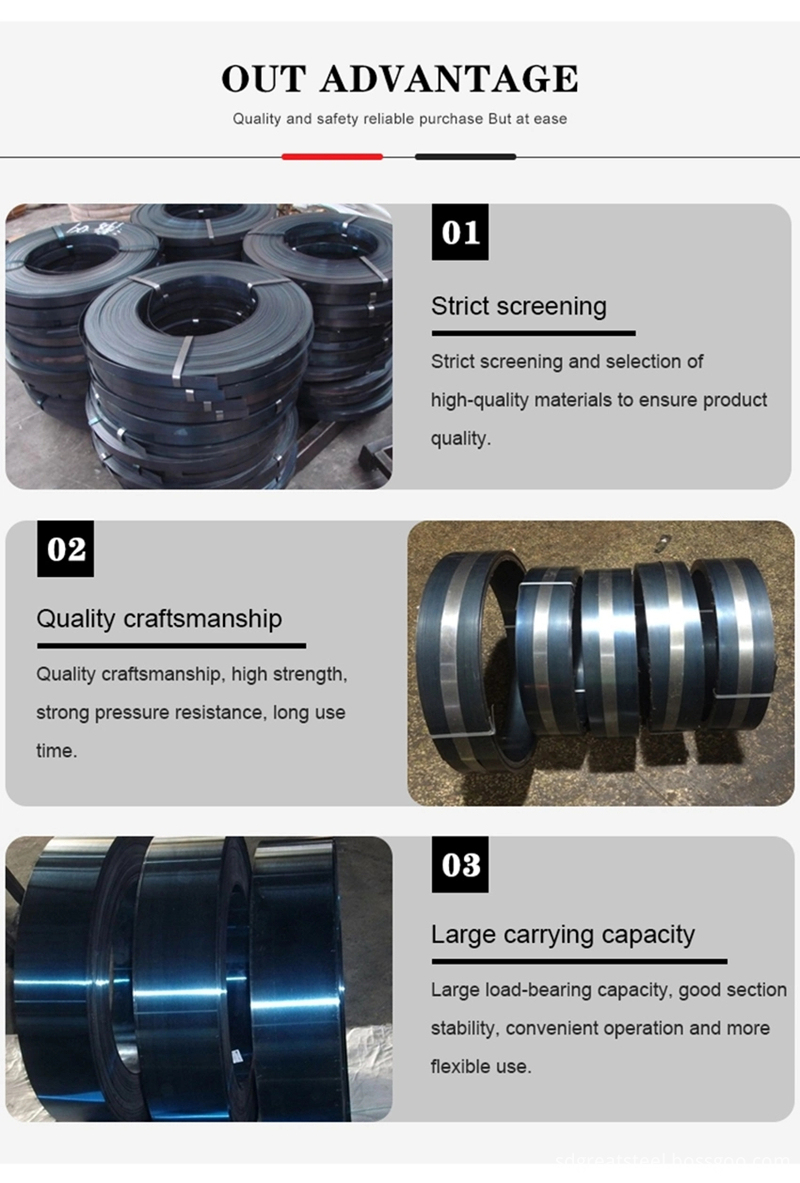

Silicon steel coil Adantage:
Silicon steel coil Application:

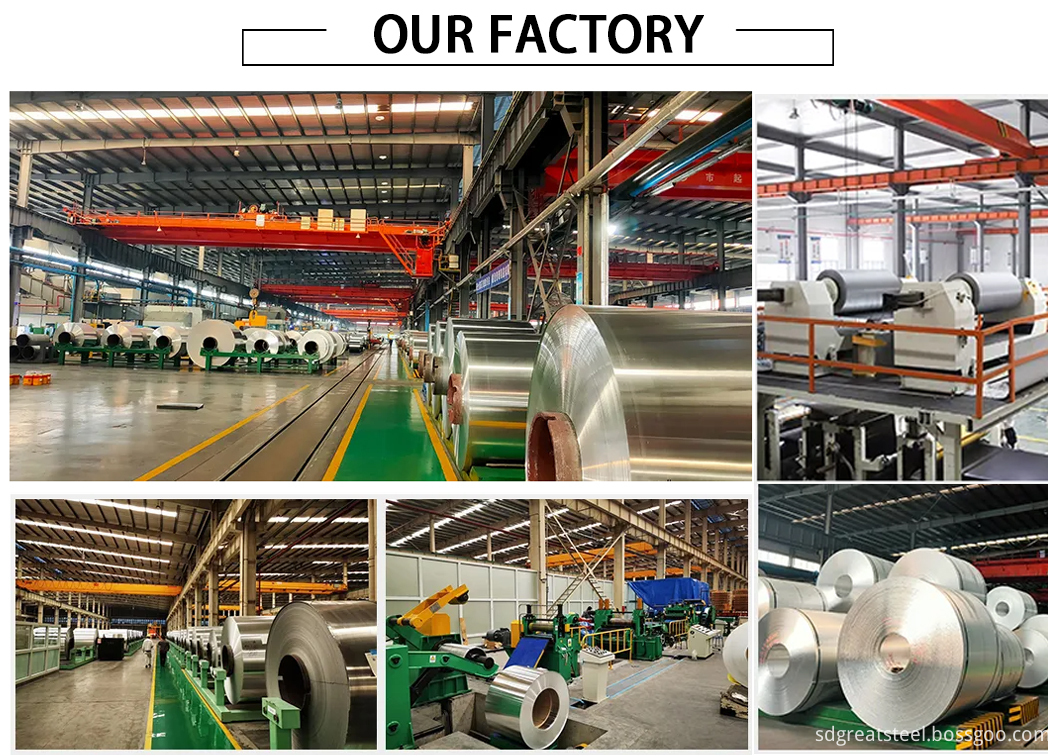

Silicon coil Factory Information:
Main Products:
Silicon steel coil manufacturer Certificate:
Packing and shipping:
