25 mm High Current Metal Pushbutton Switch

3 year ago

50 0 

7 year

Product details

UL-recognized Anti-Vandal Push Button Switches with up to 16A and TV-6 Rating.Waterproof Push Button Switch meeting IP65&IK07.And the Push Button Switch have 19mm,22mm,25mm and 30mm bushing available.

UL-recognized Anti-Vandal Switches
with up to 16A and TV-6 Rating
Protection level: IP65 and IK07
Metal Knob detachable from main switch, easy snap-in assembly
Standard 19mm round hole mounting with nuts for fastening

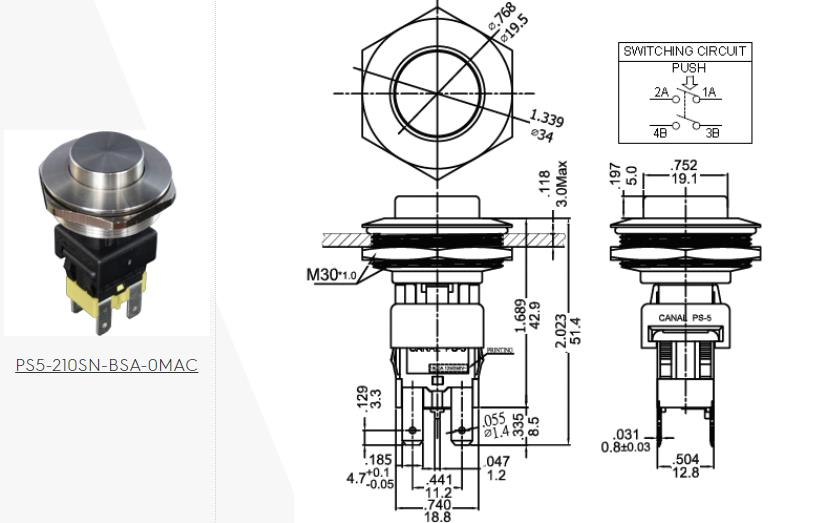

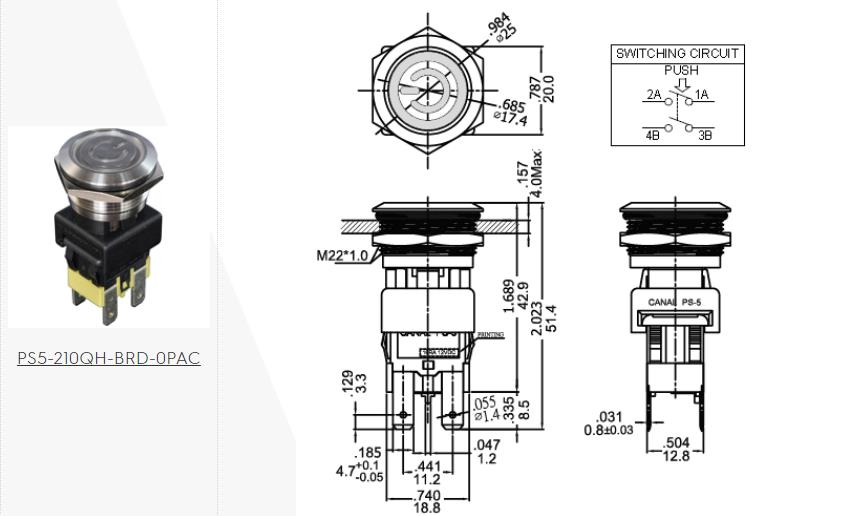

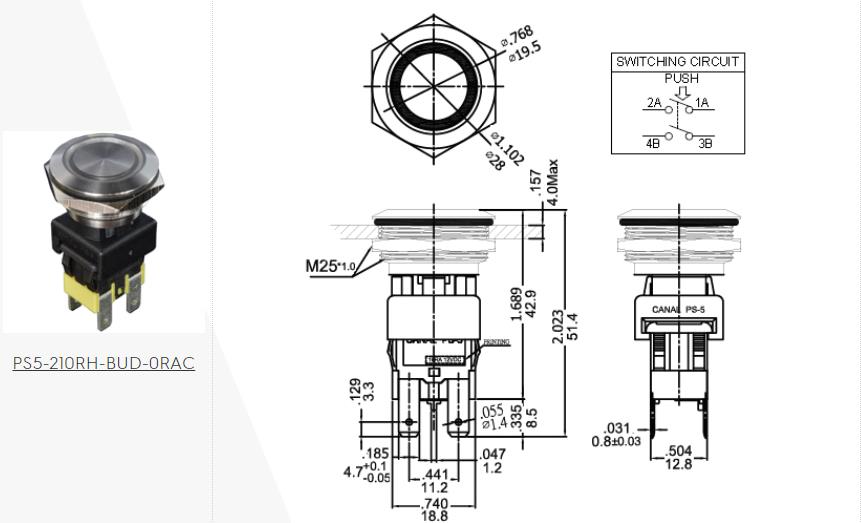

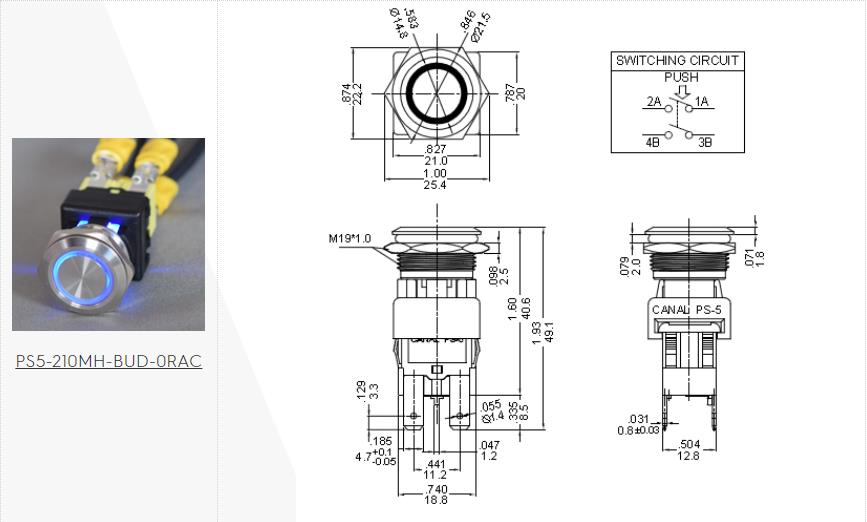

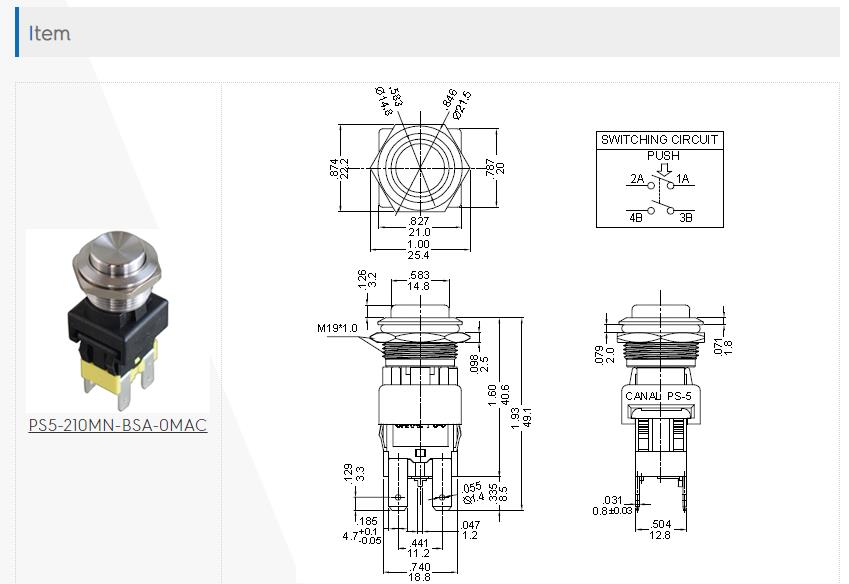

M19, M22, M25 & M30 bushing available

Feature

16A 125/250VAC (UL,CUL)
16(4)A 250V~ T125/55 (ENEC)
16(8)A 250V~ T125/55 (ENEC) optional
TV-6 125V~ T55, 25E3 (cURus) optional
8[128]A 250V~T55 1E4 (cURus, ENEC15) optional
Initial contact resistance: 20mΩ max.
Insulation resistance: 100MΩ min. at 500VDC
Dielectric strength: 1,000 VAC for 1 minute

ON-OFF, or Momentary ON, DPST, SPST
Ring & power symbol illuminated icon available
VDC LED illumination regardless of anode and cathode polarity
Quick-connect, solder and pcb terminals
M19, M22, M25 & M30 bushing, screw mounting
Actuator & bushing material: SUS
Top len: PC
Connected frame: PA66+GF
China patent No.: ZL 201520850223.7
Taiwan patent pending
IP65 protection level available ( passing MIRDC's TAF laboratory test ); IK07
