2 Spool Hydraulic Valve P80
2 year ago

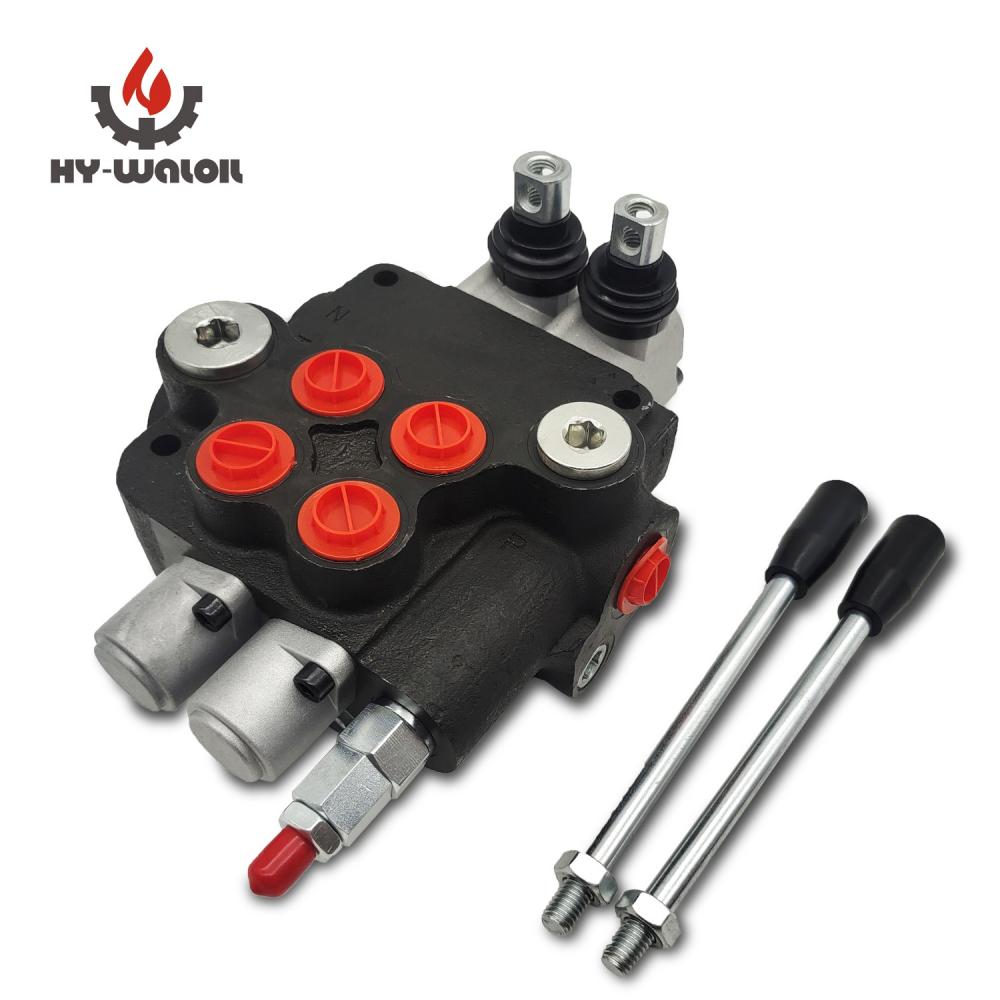

Loader 2 Spools P80 Hydraulic Monoblock Directional Valve Description:
1. The hydraulic directional control valve is of cast iron structure and has 2 spools.
2. The Hydraulic Control Valves relief valve range is up to 3600 PSI and the maximum flow is up to 21 GPM.

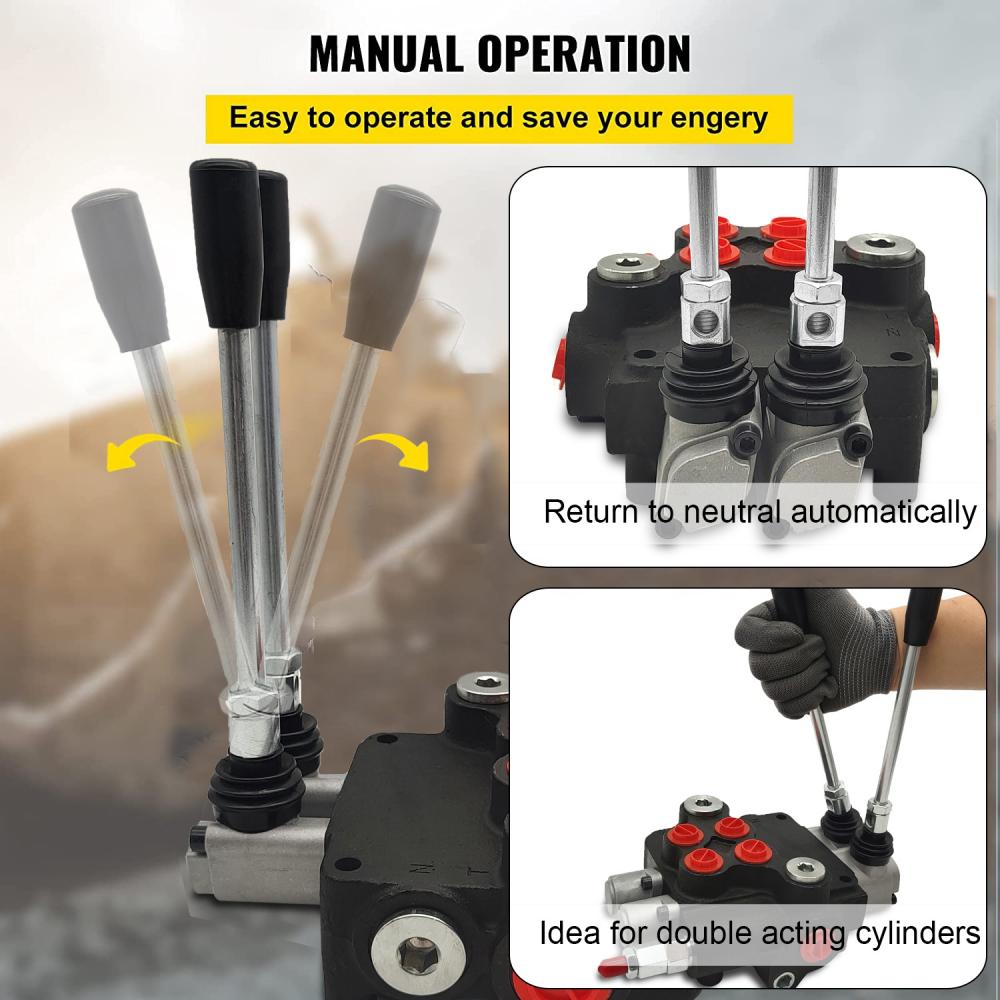

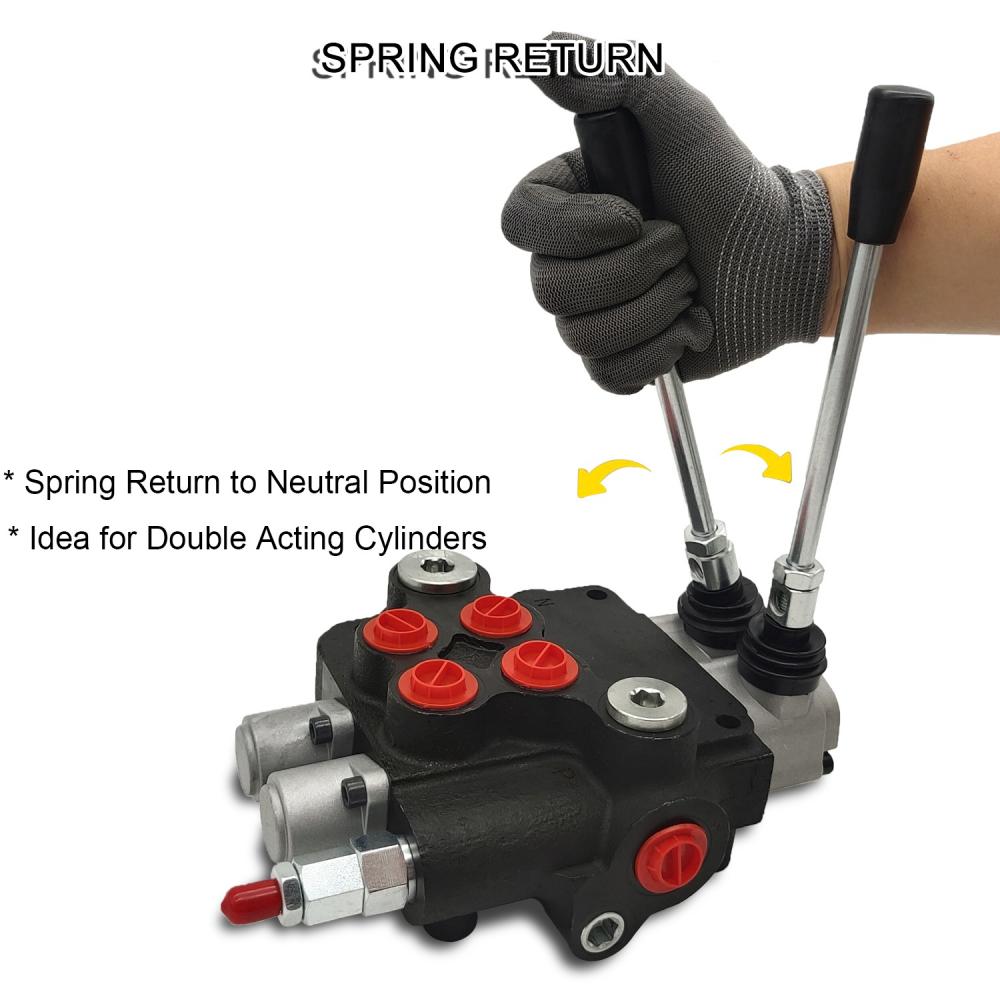

3. All Hydraulic Relief Valve standard spools are spring-returned and can be reset to the neutral position. There are springs at the bottom of the handles that make the joysticks easy to control.
4. Hydraulic Relief Control Valve Fit for small tractors, tractors loaders, log splitters, and etc.
Manual control, pneumatic control, hydraulic and electric control for optional.
Spool function
M, P, Y, A etc
Two installation methods
Spring return & detent control
Overflow valve
Adjust the pressure
MAX Pressure
3600 PSI
Maximum working pressure
31.5 MPA
Optional
ydraulic lock is available to be added on A and B port.
Control way
Recommended temperature range
40 ° C to + 60 ° C
Benefits
Integrally casted by forging, which has good sealing performance and does not leak oil, long lasting.
Application
forklifts, sanitation vehicles, small loaders, light-duty machinery and other construction machinery.
