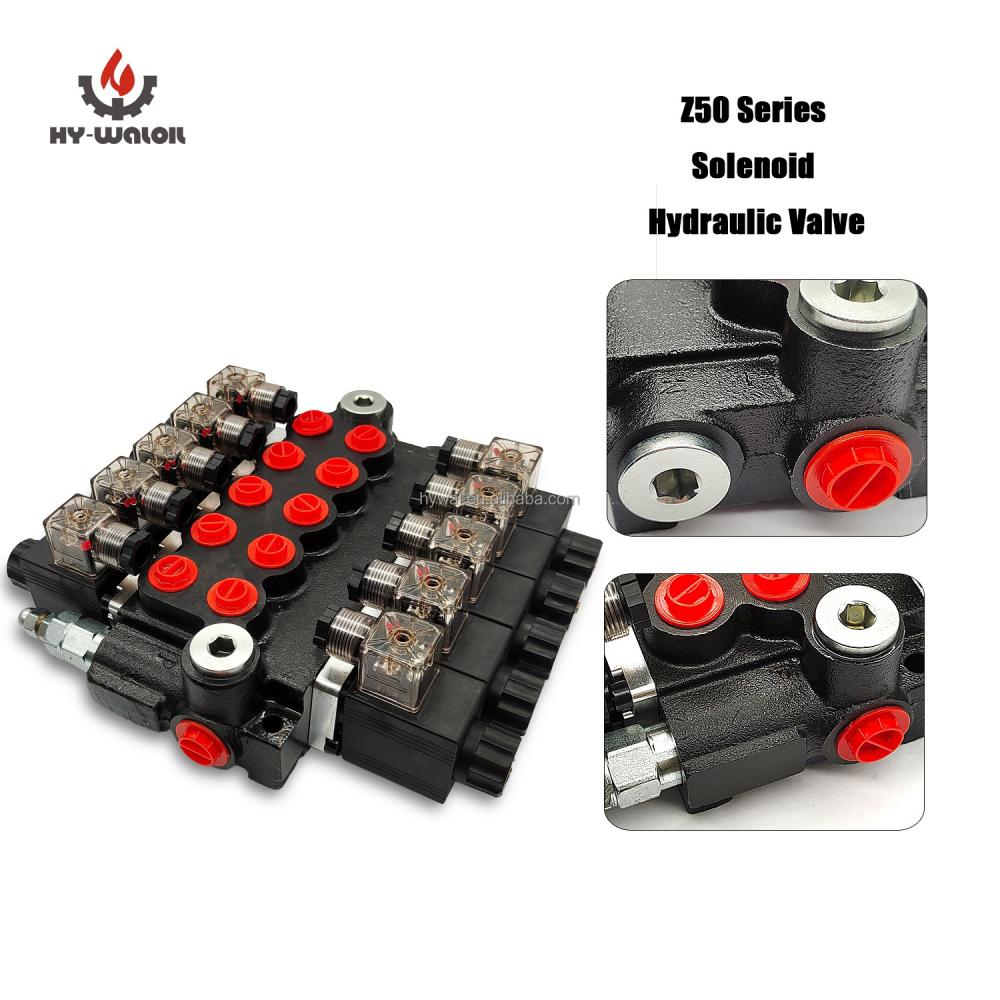

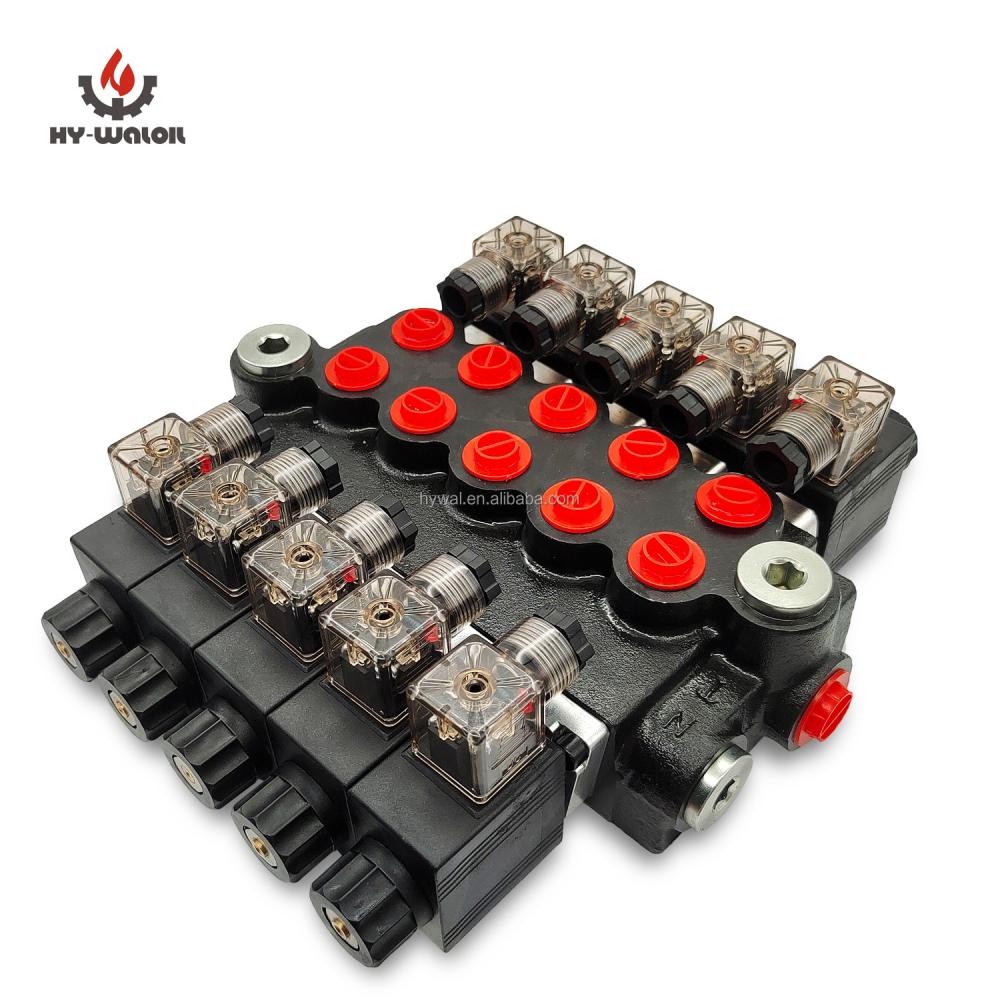

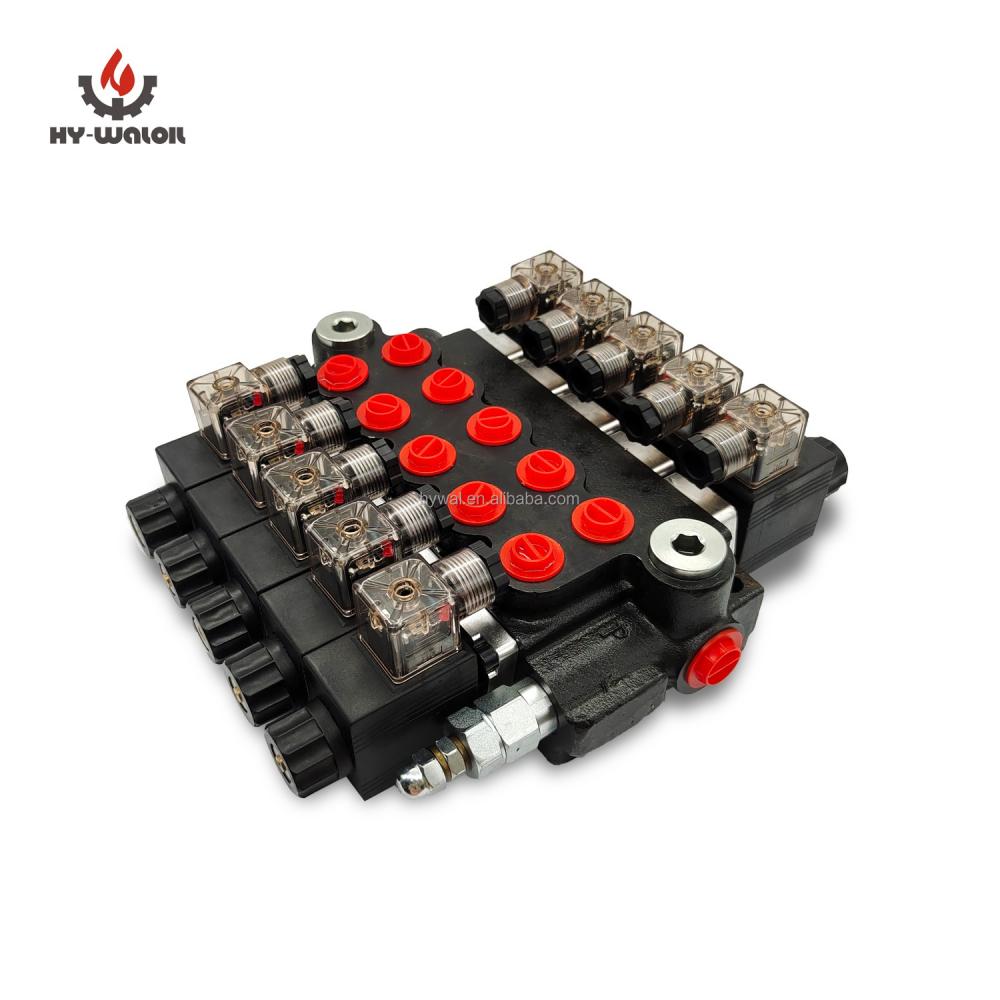

5Z50 3/8" Solenoid Control Valve

Z50 G3/8" 5Spools Solenoid Operated Control Valves 12/24VDC Description:

Z50 G3/8 Solenoid Control Valves 50LPM Common Uses:
Operate hydraulic cylinders (Double-Acting or Single-Acting): Grapples (Tilt/Raise Cylinders), Box Blade (Height Adjustment)
Install rear remotes on a tractor
Z50 Hydraulic Direct Solenoid Control Valves Operate Winches (“A” Spool)
Raise/Lower Dump Truck Bed (“A” Spool)
Operate Cylinders for Snow Plows (“A” Spools)

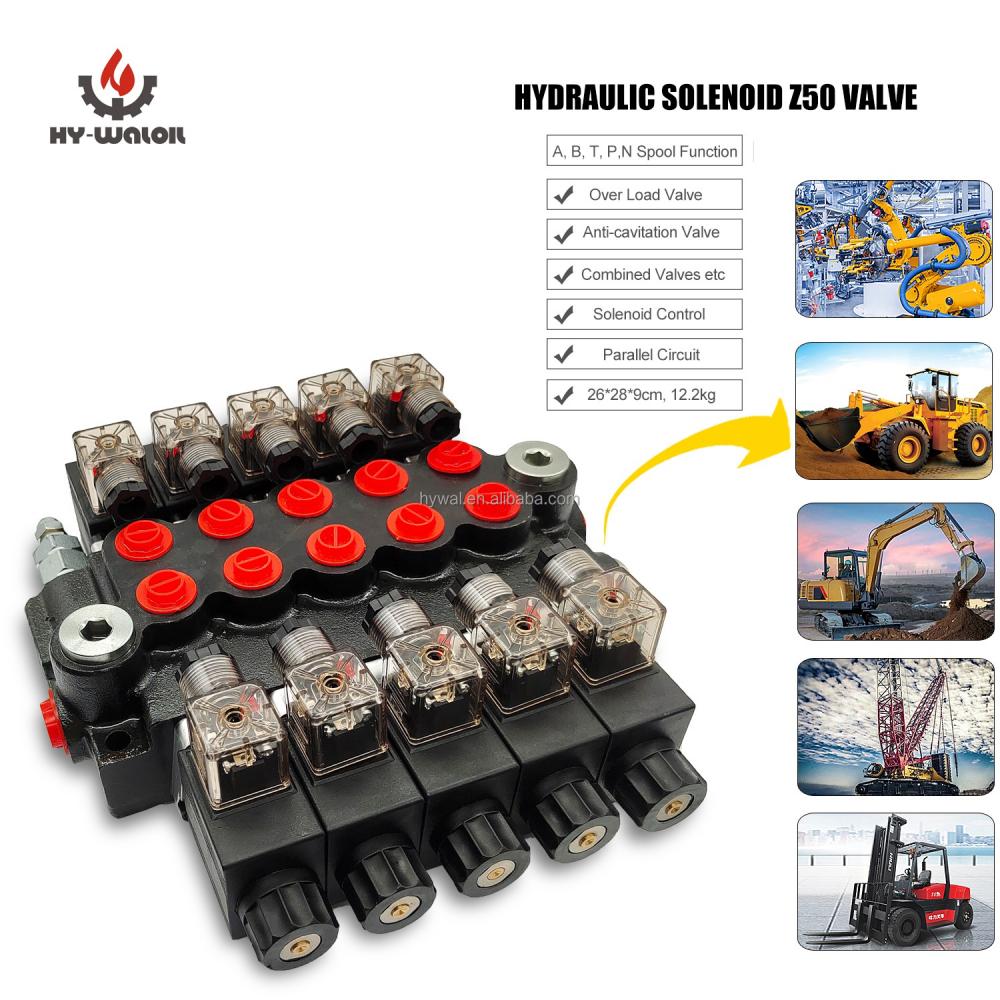

A Spool (Controls Double Acting Cylinders)
All Z50 Solenoid Control Valve 50 LPMspools are double acting with spring return to neutral position, A spool is designed to control double acting cylinders

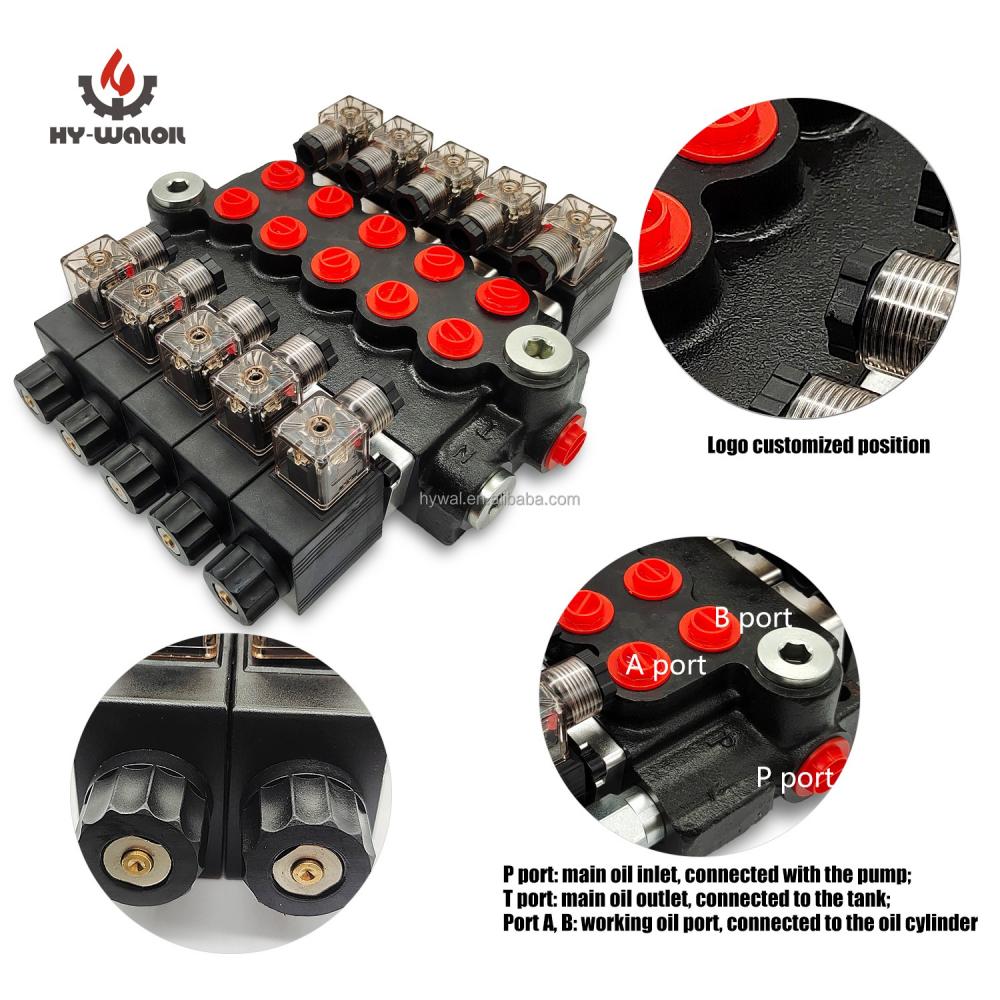

A and B ports are closed to Tank in neutral position

Switch Box with one momentary rocker switch that springs automatically to the neutral position
5 ft long extension harness
Weatherproof enclosure and DIN connectors

Benefits for you:

* Precision ground and hard chrome-plated spools assure a long life
* High-tensile strength cast iron monoblock construction
* SAE O-Ring ports ensure solid seal and prevent blockages
* Used for open center systems (Pump to Tank Flow)
* Capable of closed center or Power Beyond (conversion plug required)
* Adjustable Relief Valve Range:  1500 to 3625 PSI
* Preset Pressure Relief: 2610 PSI
* Manual Override
