4 Way 3 Position Monoblock Valve P80
2 year ago

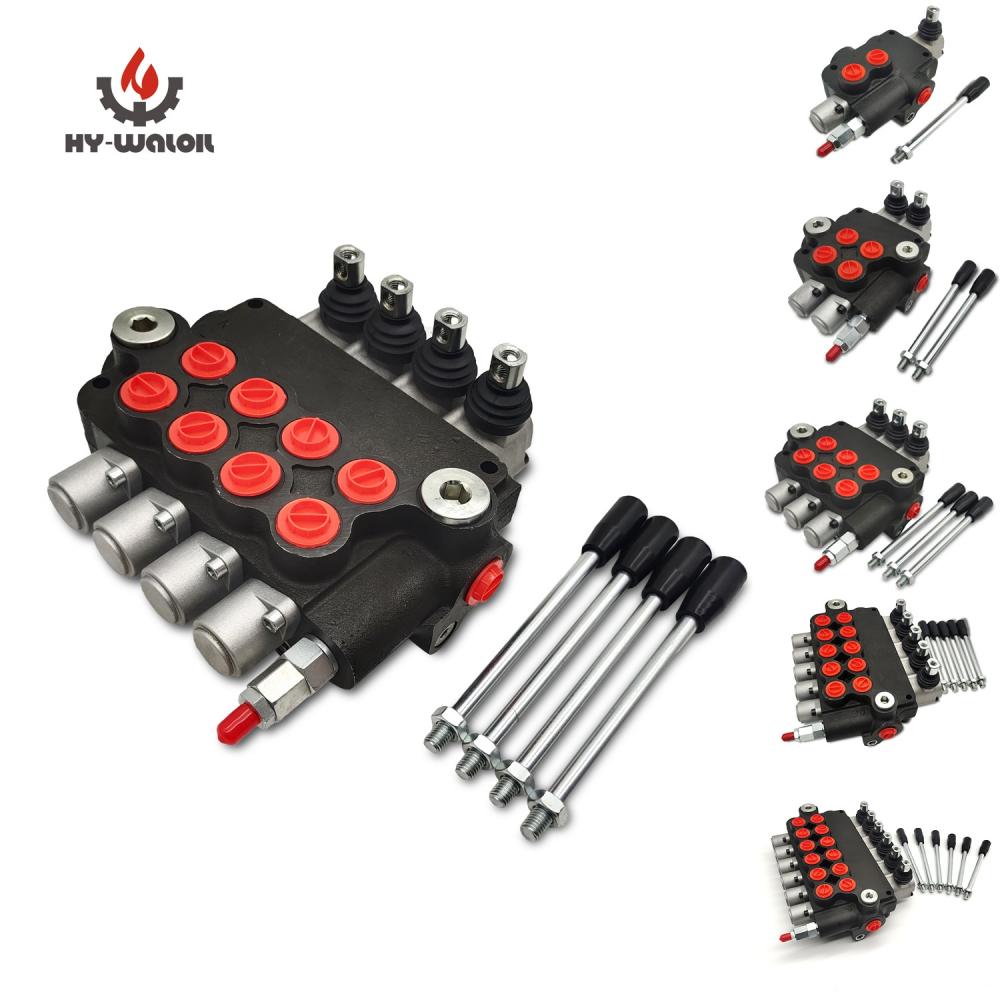

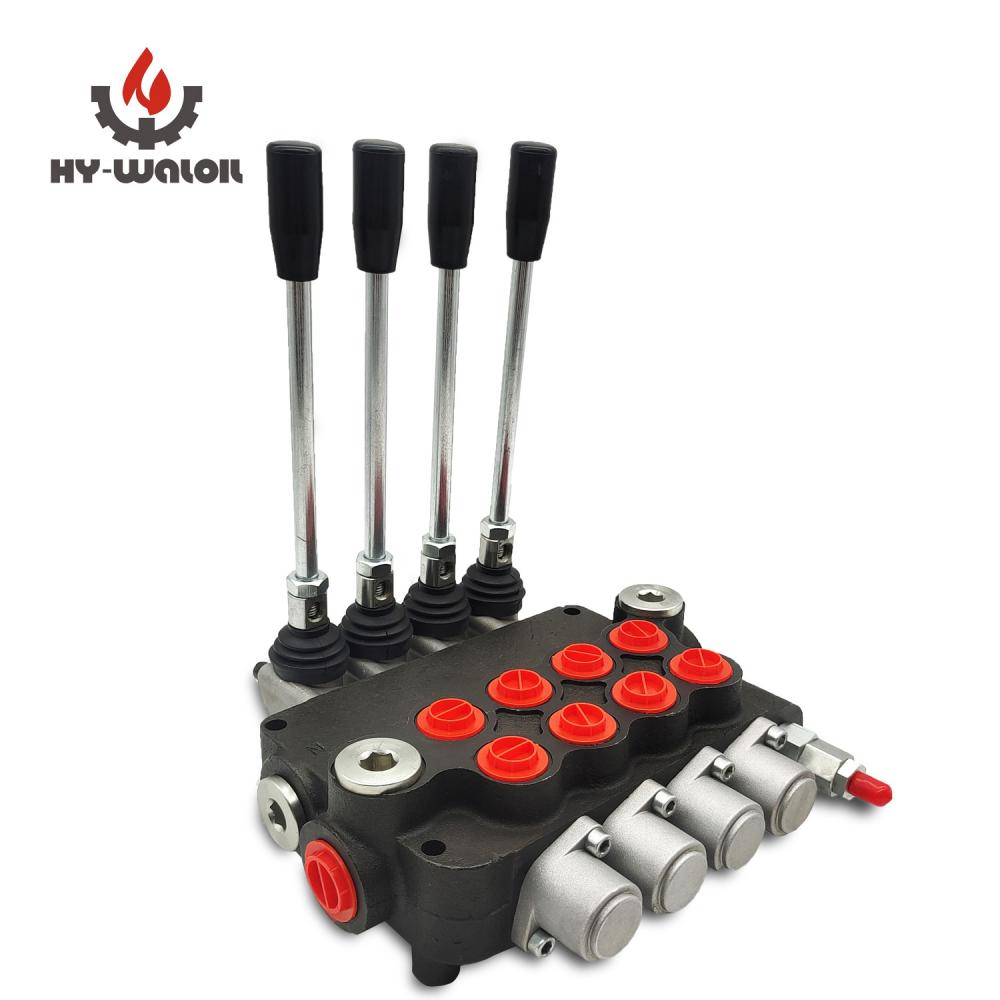

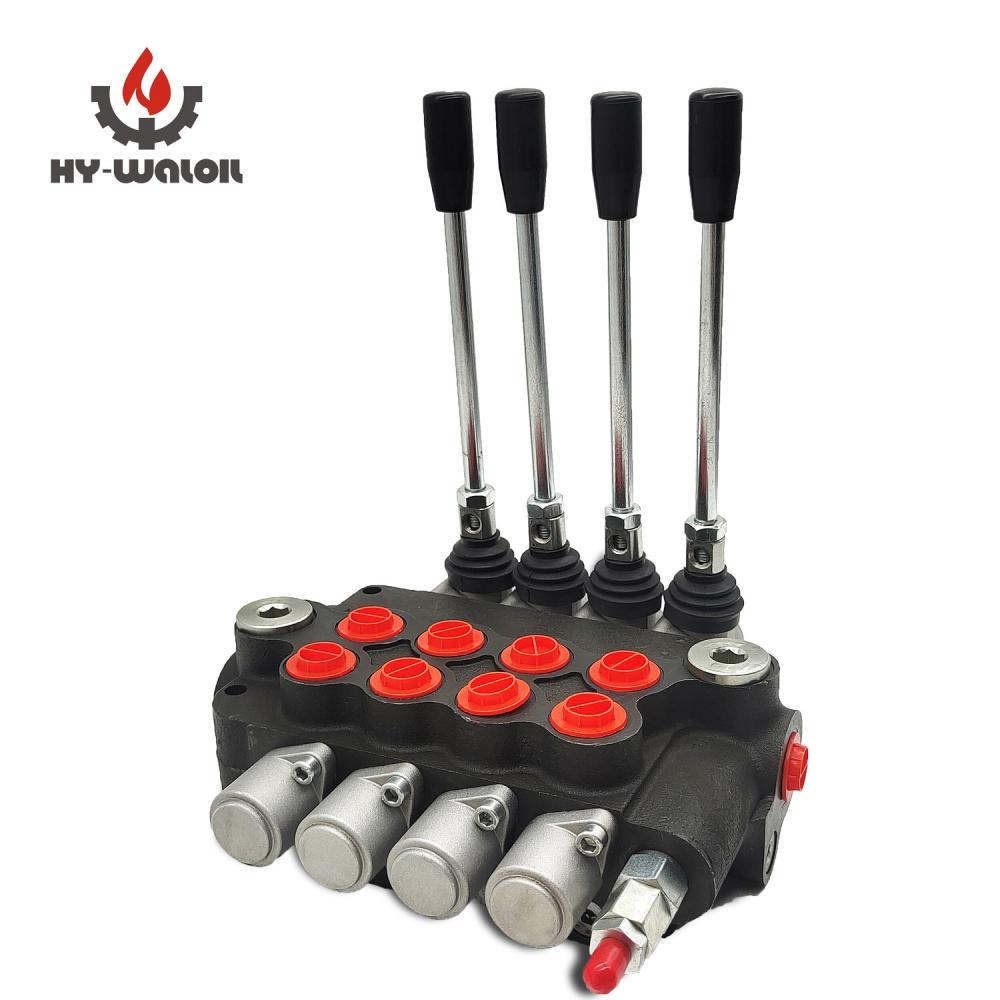

Tractor 4P80 Hydraulic Multiple Directional Control Valve:
We sell wholesale 4 Spool Hydraulic Directional Control Valve 21gpm 80L Double Acting Cylinder Single Acting Cylinder
Our Company Guarantee:
All goods from our range are brand customized as your request and have a manufacturer's guarantee. Hydraulic distributors are guaranteed for 1 years.
P80 Series Hydraulic Control Valve Main application area:
21 GPM Hydraulic Valve is used in hydraulic systems in agriculture, horticulture, forestry, construction and industry. The distributor is adapted to different types of machines: agricultural machines, tractors, sprayers, front loaders, construction machines, loaders, excavators, sweepers, industrial machines and for other applications hydraulically controlled.
250bar Monoblock Hydraulic Distributor Technical specifications:
Recommended oil flow in the system: 0-80L / min
Control example: double-acting hydraulic cylinder
Possibility of series connection to the existing system
Pump supply (P)/ Return to tank (T)/ Series connection (N): female thread BSP 1/2 "
Output for sections (A, B): Female thread BSP 3/8 "
Spool function
M, P, Y,A etc
Two installation methods
Spring return & detent control
Overflow valve
Adjust the pressure
MAX Pressure
3600 PSI
Maximum working pressure
31.5 MPA
Temperature Range
-20 to +80
Connection
Flow Rate
80 LPM
Benefits
Integrally casted by forging, which has good sealing performance and does not leak oil, long lasting.
Application
forklifts, sanitation vehicles, small loaders, light-duty machinery and other construction machinery.
