UN31 series High frequency Online UPS 10/15/20 kVA

2 year ago

28 0 

Shenzhen Unitronic Power System Co., Ltd

3 year

Product details

UN31 series three-in single-out UPS power supply means that the UPS power input is 380v and the output is 220v. This three-in single-out UPS power supply is generally used in computers that do not require three-phase electrical equipment, etc., because the three-in single-out UPS does not need to consider the load, and can steadily output continuous power even if it is out of phase. It is a very easy-to-use uninterruptible power supply. Tower UPS adopts leading online double conversion technology, with an input power factor of up to 0.9 and strong load capacity, including power 10KVA/10KW, 15KVA/15KW, 20KVA/20KW.

Online UPS

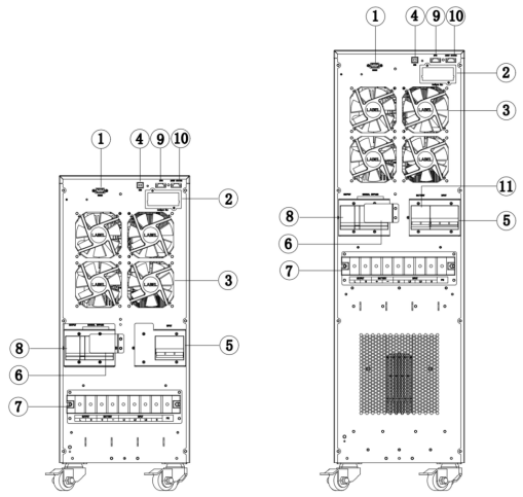

① RS232

② Smart slot (optional)

③ Fan

④ USB

⑤ Input breaker

⑥ Maintenance bypass breaker (optional)

⑦ Terminal block

⑧ Output breaker (optional)

⑨ EPO

⑩ Maintenance status port

⑪ Battery breaker (optional)

Model	UN3110KS	UN3110KL	UN3115KS	UN3115KL	UN3120KS	UN3120KL
Capacity	10kVA/10kW		15kVA/15kW		20kVA/20kW
Input
Nominal Voltage	380/ 400/415Vac, 3Ph+N+PE
Voltage Range	156~520Vac
Frequency Range	40~70Hz
Power Factor	≥0.99
Output
Nominal Voltage	208/220/230/240Vac, L+N+PE
Voltage Regulation	±1%
Frequency	50/60Hz±0.1%
THDu	≤2% (linear load); ≤7% (non-linear load)
Transfer Time	Zero
Waveform	Pure sine wave
Crest Ratio	3:1
Overload Capacity (Line Mode)	105%~125% load, 10min; 126%~150% load, 1min; >150% load, 100ms
Overload Capacity (Battery Mode)	105%~125% load, 1s; >126% load, 100ms;
Battery
Battery Type	Sealed lead acid maintenance free
Battery Voltage	192Vdc / 240Vdc
Battery Number	9Ah*16	External	7Ah162	External	9Ah162	External
Charging Current	2A	4A or 8A	2A	4A or 8A	2A	4A or 8A
Efficiency
Line Mode	93%
Battery Mode	92%
ECO Mode	98%
Communication
Interface	RS232 / USB / SNMP card(optional) / Dry contact card (optional)
Environment
Operation Temperature	0~40℃
Humidity	0~95%(non-condensing)
Noise	≤55dB @ 1 meter away
Altitude	Up to 1000m without derating
Physical
Dimensions (WDH) mm	250622844	250622604	250622844	250622604	250622844	250622604
Weight (kg)	73	31	99	33	100	35
