S-301UVLED full servo rotating bottles screen printing machine

2 year ago

20 0 

9 year

Product details

Samples of CNC rotary automatic screen printing machine

It is a screen printing machine specially developed for plastic bottles and glass bottles. After manually placing the bottles on the feeding conveyor belt, the mechanical gripper transfers the bottles to the printing tooling. At the same time, the CCD camera captures the bottom and body of the bottle and cooperates with the servo motor for precise positioning. Two silk printing stations and two colors are completed at the same time. . Then the robot clamps the finished bottle to the unloading line. the

The machine has high efficiency, and the round bottle can reach more than 55 per minute, and the square bottle can reach more than 45 per minute. And the overprinting precision is high, the degree of intelligence is high, and the pass rate of product quality is high.

The main frame of the machine is welded by high-strength and high-quality steel parts, the circular turntable is designed, the main components are processed by CNC, and the plexiglass protective door is installed, which shows the safety of humanization and operation, and meets European safety standards; the control system , Servo motors, electrical components, and pneumatic components are all made of well-known brands from Germany, Japan, and France to ensure the accuracy and stability of the machine's operation. It is suitable for multi-color silk screen printing of round, square, square with arc, oval, rhombus, special-shaped and other bottle shapes.

032

Description of CNC rotary automatic screen printing machine

Item		STANDARD ITEMS	Q
1	Feeding system	In-feeding conveyor with motor-driven / Feeding robot	1
2	Pre-treatment	Flame treatment device	1
3	Workbench	1.5M rotating workbench with high accurate splitter	1
4	Print system	High accurate screen printing system /Servo screen plate system	3
		Servo rotating positioning system /CCD positioning system	3
		Safety cover	1
		PLC Control system	1
5	UV LED system	UV curing system	3
6	Downloading	Downloading robot + 1.5M downloading conveyor	1

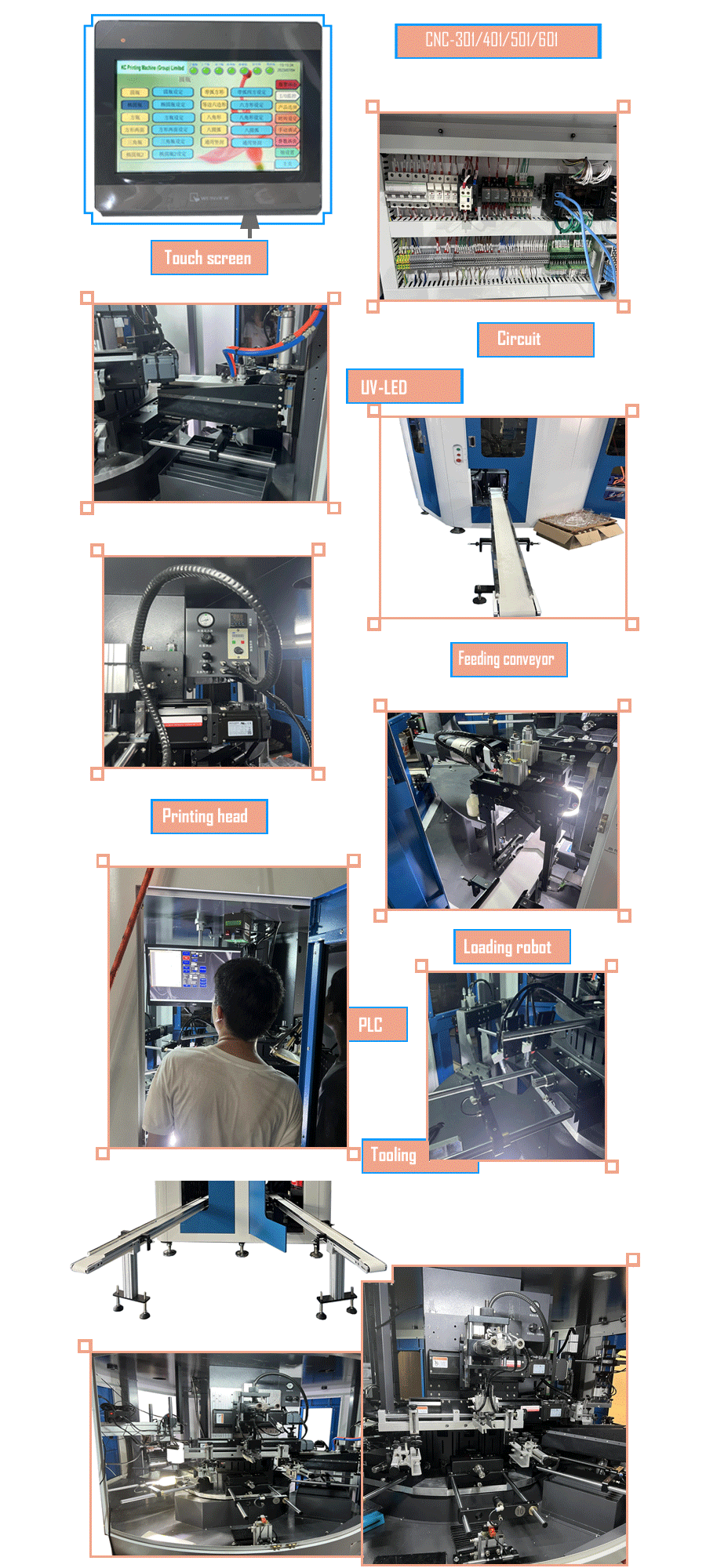

Machine structure of CNC rotary automatic screen printing machine

016

The fully automatic screen printing machine with a flat loading table is the main structural form of the automatic screen printing machine for cylindrical or nearly cylindrical products such as bottles and hoses. The turntable table of the fully automatic screen printing machine is equipped with different numbers of workstations and can rotate around the flat turntable. The screen printing head is distributed above the workstation. After the substrate is rotated to the bottom of the printing position, the screen printing head is precisely positioned in the circumferential direction, and then it is lowered for printing. Each screen printing position is followed by a UV or UVLED curing device. After all printing is completed, the robot will grab the product and place it on the unloading conveyor belt.

The main structure of the turntable fully automatic screen printing machine includes: feeding conveyor belt, feeding robot, CCD positioning device, flame treatment device, screen printing device, UV curing or UVLED curing device, unloading robot.

The machine adopts the most advanced technology in the current screen printing field, with easy adjustment, stable operation and excellent quality. The machine adopts modular design, and can be equipped with hot stamping, pad printing, thermal transfer, inkjet printing and other stations according to user needs, so that one machine can achieve a combination of multiple printing processes.

Parameter of CNC rotary automatic screen printing machine

1	Feeding conveyor and unloading conveyor	Speed : 0-10M/ Conveyor width : 0.5M
2	Pre-treatment	Fire width: 250mm
3	Workbench	Rotating plate diameter : 1.5M
4	Print system	Max print diameter: 100mm / Max print length: 300mm
		Overprint accurate: 0.05-0.1mm ;Max print speed: 3000pcs/H
		Air : 5-7 bar PLC Control system
		Materials: plastics, glass, ceramic, Print color number: 3 colors
5	UV system/Power supply	UV Wattage: 4KW /3P380V

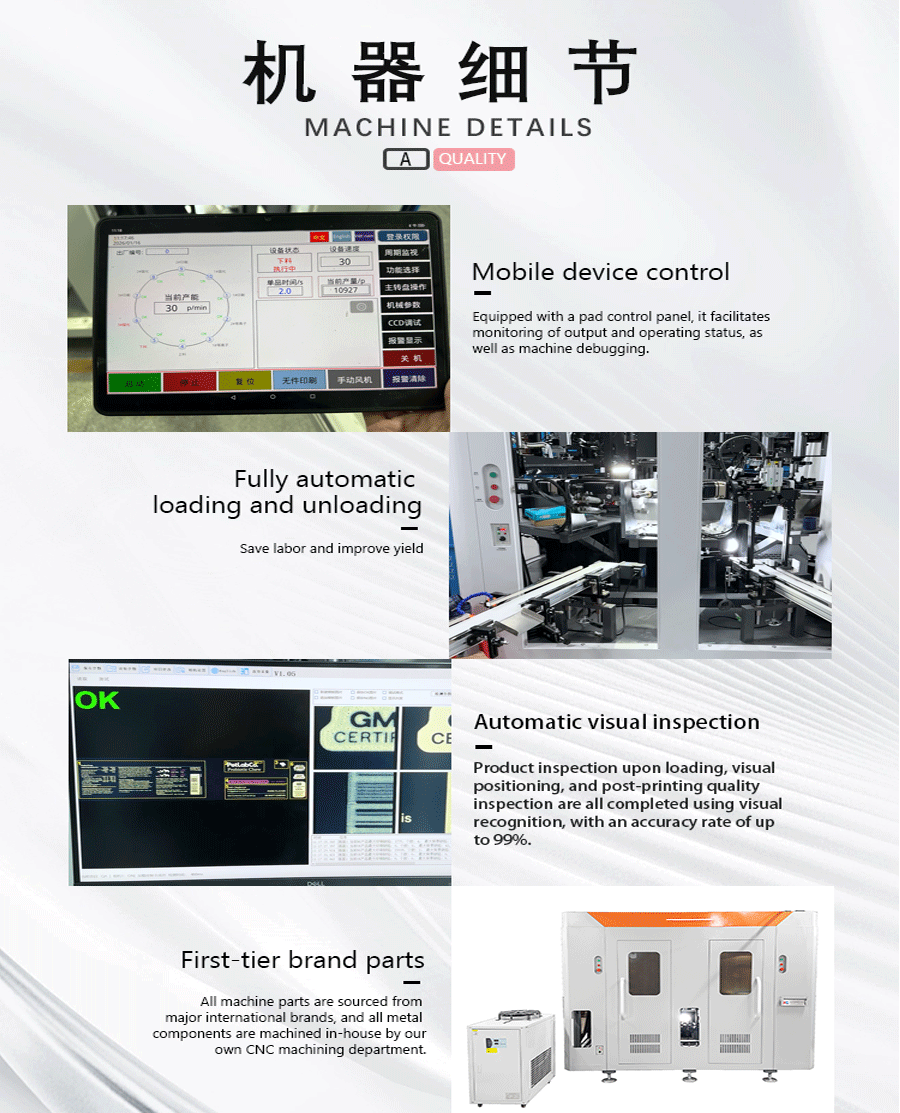

Machine Configuration of CNC rotary Automatic screen printing machine

Items	Description	Brand	Note
1	Pneumatic components	SMC , AIRTAC	Japan,Taiwan
2	PLC	Beckhoff	Germany
3	Light sensor	Omron/KEYENCE/SICK	Japan
4	Electrical components	Schneider/Omron	Germany/Japan
5	Splitter	GOIZPER	Spanish
6	Servo system	INOVANCE	China
