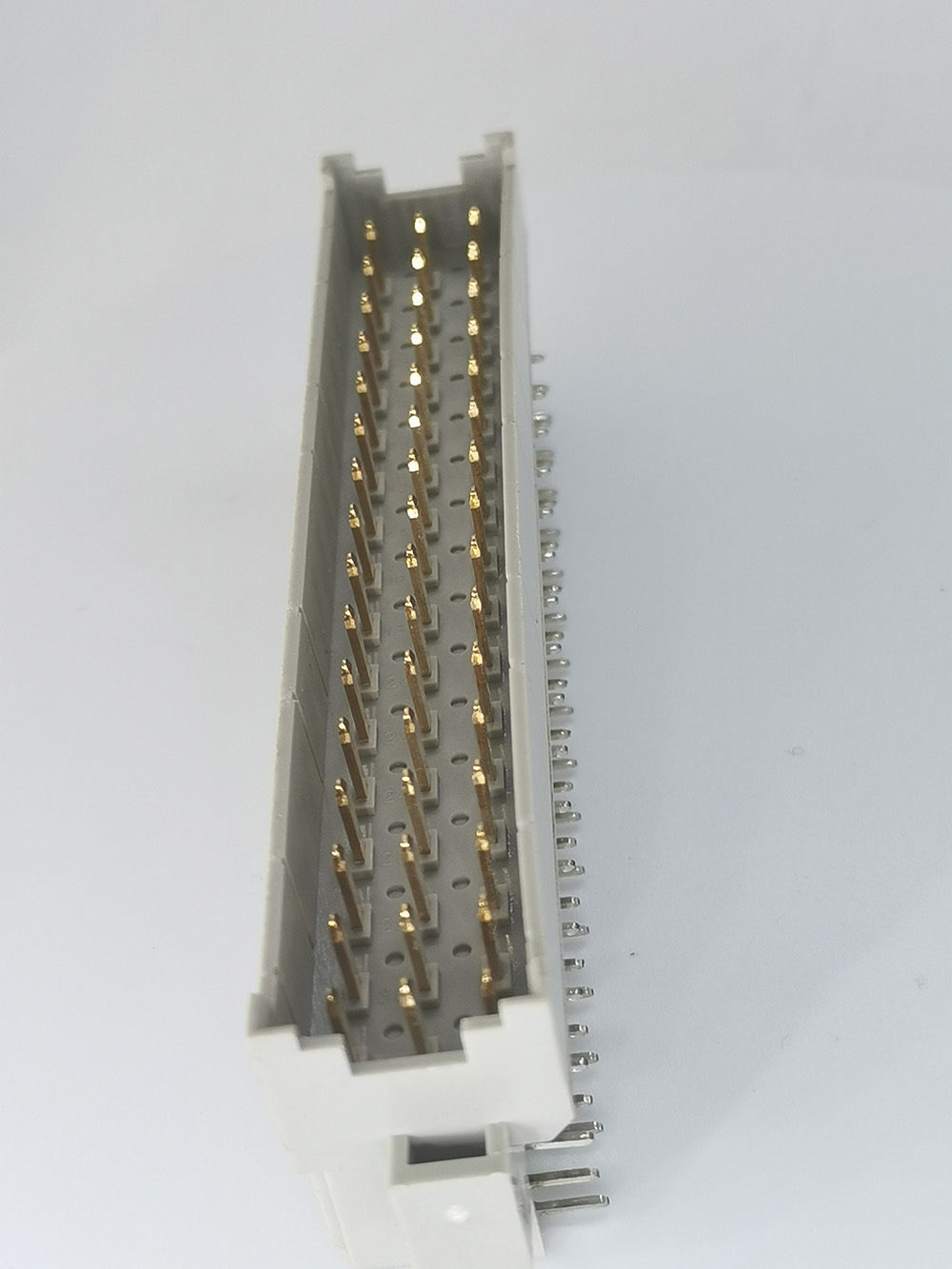

DMR-XX-XXX-317 DIN 41612 Right Angle Plug Type 0.3

DIN 41612 / IEC 60603-2 Connector Product introduction

The variety of different types and termination technologies (press-fit, dip soldering, manual soldering, wrapping, crimping, THR) for DIN connectors cover a wide range of applications.

Eurocard Connectors per DIN 41612 and IEC 60603-2 Features
Various termination technologies possible
Leading and lagging contacts
Pre-centering
Variety of termination lengths
A range of accessories, such as shrouds, board locks, coding keys
Quick lock switch fastener for daisy chaining
Board locks and codes provide developers and users with additional safety and a wide range of possible applications.

DIN 41612 (EN 60603-2) PCB & Backplane Connectors Applications
Backplane daughter card, 19-inch technology (VME)
Board-to-board, parallel, or stacked
High-power

Connector Category: Din 41612 Eurocard Connector丨Solder Din 41612 Connector丨IDC Din Connectors丨High Power Din Connector丨

DMR-XXXXX-D06 DIN41612 Right Plug F Type High Power Connectors 48 Positions（Terminal Width=1.54) Specification:

Current Rating:5.6Amp
Insulation Resistance:1000MΩ min.at DC 500V
Contact Resistance:20mΩ max
Withstand Voltage: AC 1000V For 1 Minute
Operating Temperature:-55°C to +105°C
Contact Material:Phosphor Brass
Contact Plating:Au or Sn Over Ni
Insulator Material:PBT+30%GF UL 94V-0
Insertion Force:75N max.
Withdrawal Force:0.15N min.per individual contact

High Current/Voltage Eurocard Connectors per DIN 41612 and IEC 60603-2
