UPVC ceiling panel extrusion line

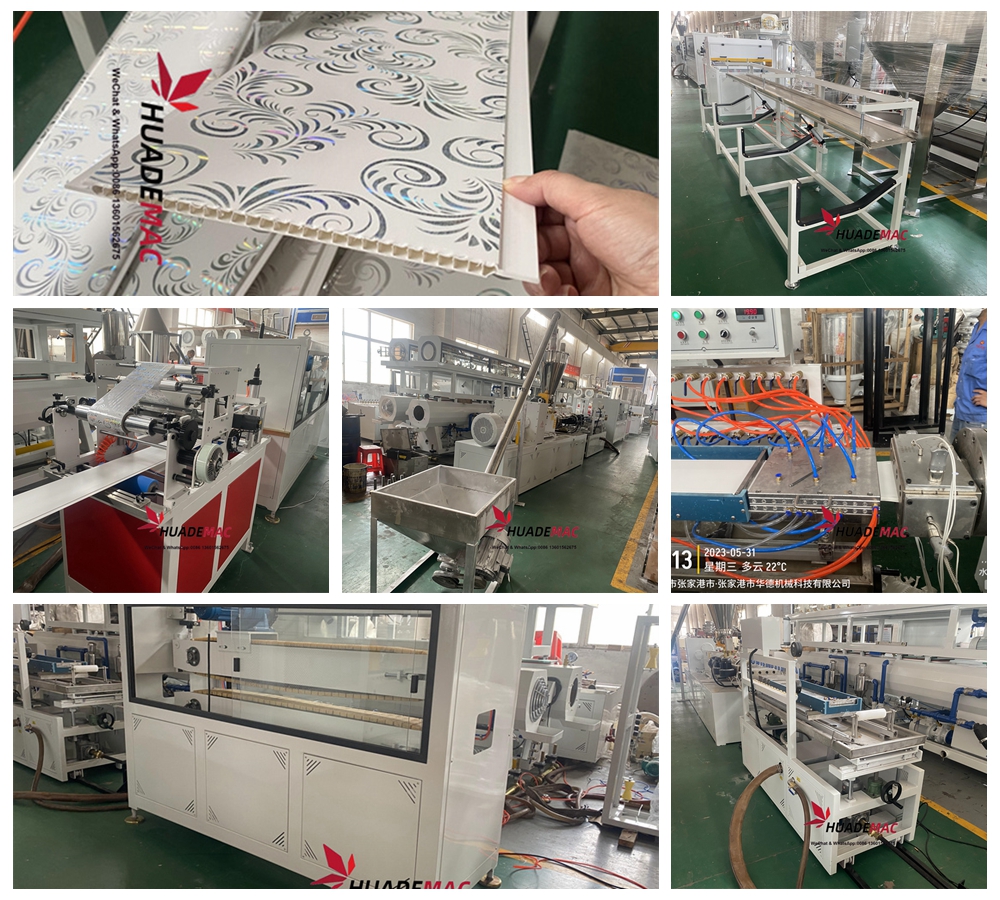

A UPVC ceiling panel extrusion line is a manufacturing system used to produce UPVC (unplasticized polyvinyl chloride) ceiling panels. This extrusion line typically consists of several components, including:
1. Extruder: This is the main machine in the line that melts and mixes the UPVC raw material and pushes it through a die to form the desired shape of the ceiling panel.
2. Die: The die is a specialized tool that shapes the molten UPVC material into the desired profile of the ceiling panel. It can be customized to produce different panel designs and sizes.
3. Cooling and calibration system: After the UPVC material is extruded through the die, it needs to be cooled and calibrated to ensure the final product has the correct dimensions and surface finish. This system typically uses water cooling and vacuum calibration techniques.
4. Haul-off machine: The haul-off machine pulls the extruded UPVC panel through the line at a controlled speed, ensuring consistent dimensions and surface quality.
5. Cutting and stacking system: Once the UPVC panel has been extruded and cooled, it needs to be cut into the desired lengths and stacked for further processing or packaging. This system may use a saw or guillotine cutter, as well as a stacking unit.
6. Auxiliary equipment: The extrusion line may also include various auxiliary equipment, such as a raw material feeding system, heating and cooling units, and control systems to monitor and adjust the production process.
Overall, a UPVC ceiling panel extrusion line is a complete manufacturing system that enables the efficient and continuous production of UPVC ceiling panels with consistent quality and dimensions.
