Product Overview
RTM050M

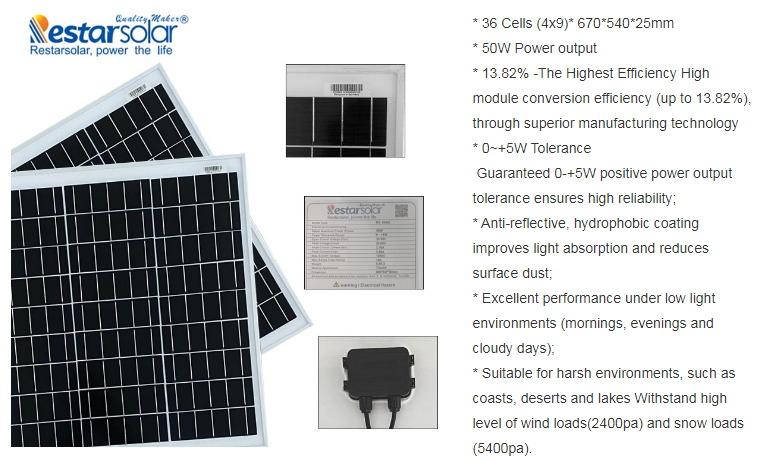

RTM050M is a robust solar panel with 36 solar cells. These solar panels can be used for on-grid solar applications.Our meticulous design and production techniques ensure a high-yield, long-term performance for every solar panel produced. Our rigorous quality control and in-house testing facilities guarantee Restar's solar panels meet the highest quality standards possible. Choose our solar panels , we'll not let you down.
Product Details
![_(`IT}PF6]LL6JZSA)4QVDP](http://i.glbin.com/product/9e/b3/e2/3ee04657eb2077ed5e469e8be9.png "_(`IT}PF6]LL6JZSA)4QVDP")
Specification
ELECTRICAL DATA(STC)
STC: Irradiance 1000% W/m² , Cell Temperature 25°C,Air Mass AM 1.5 according to EN 60904-3
|
Rated Power in Watts-Pmax(wp)
|
50W
|
|
Open Circuit Voltage-Voc(V)
|
21.6V
|
|
Short Circuit Current-Isc(A)
|
3.06A
|
|
Maximum Power Voltage-Vmp(V)
|
18.20V
|
|
Maximum power current-Imp(A)
|
2.75A
|
|
Module Efficiency(%)
|
13.82%
|
ELECTRICAL DATA(NOCT)
NOCT:Irradiance at 800 W/m²,Ambient Temperature 20°C,Wind Speed 1 m/s.
|
Rated Power in Watts-Pmax(wp)
|
37.34W
|
|
Open Circuit Voltage-Voc(V)
|
21.02V
|
|
Short Circuit Current-Isc(A)
|
2.48A
|
|
Maximum Power Voltage-Vmp(V)
|
16.95V
|
|
Maximum power current-Imp(A)
|
2.20A
|
MECHANICAL DATA
TEMPERATURE & MAXIMUM RATINGS
