Plate heat exchanger producing department

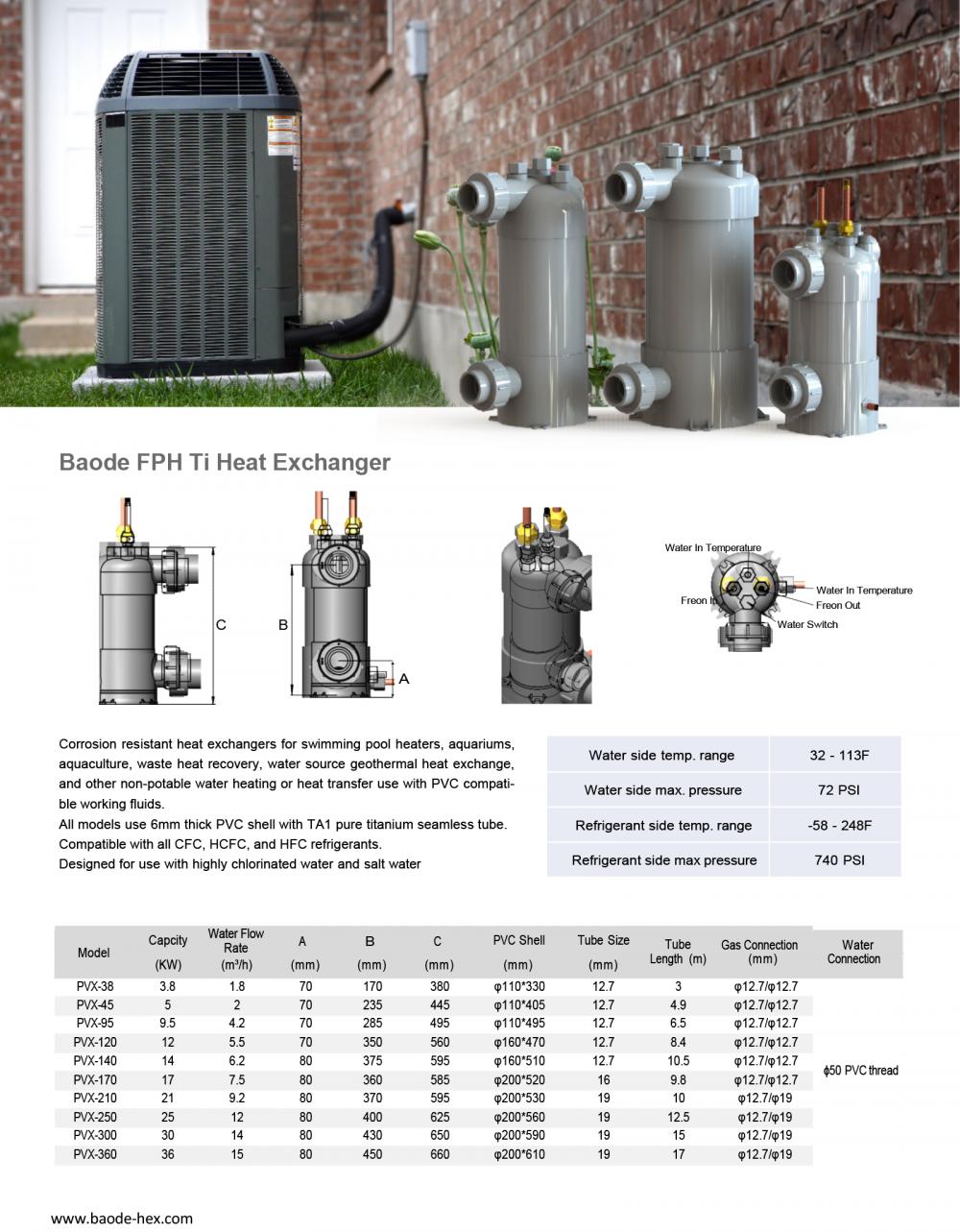

High Quality PVC Ti Swimming Pool Tube Heat Exchanger Condenser

The working principle of tubular heat exchanger is based on two ways: convection and conduction. When two fluids with different temperatures pass through a tube heat exchanger, they transfer heat at the tube wall. Convection refers to the direct contact and mixing between fluids, while conduction refers to the transfer of heat through the solid material (i.e., the tube wall). Shell and tube heat exchanger can be used in chemical production: for heating, cooling, recovery, etc., in various chemical reaction processes, such as synthetic ammonia, oxygen, oxalic acid, etc.

The advantage of titanium heat exchanger using PVC shell heat exchanger is mainly that there are the following parts:
1, water side: PVC shell pipe body and upper and lower cover plate pressure resistance
2, green data: through SGS, RoHS, safe environment
3. Refrigerant side: Bend coil with titanium tube
4, with strong corrosion resistance
5, widely used in seawater and some chemical substances
6, can solve the problem of copper corrosion data
7, the surface is not easy to oxidize
8, anti-scaling ability is strong, do not need to worry about its cleaning. The coil is tightly tied between the coil and the nylon cable tie, so it can cut the movement.
