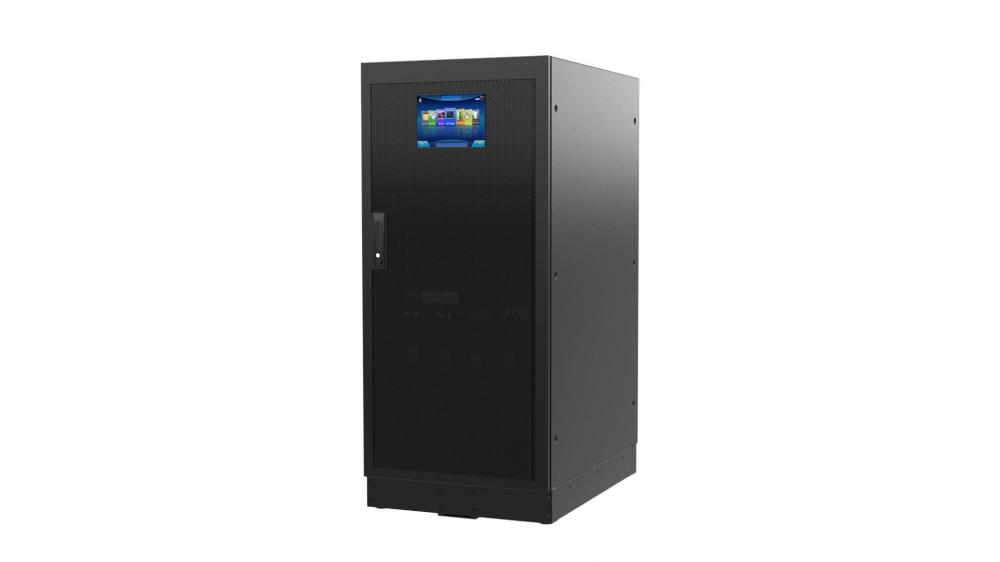

UN33 Series High Frequency Online UPS 60kVA

Model

UN33080KL

UN33100KL

UN33150KL

UN33200KL

Capacity

80kVA

100kVA

150kVA

200kVA

Input

Phase

3 Phase+Neutral+Ground

Rated Voltage

380/400/415Vac

Voltage Range

208-478Vac

Frequency Range

40-70Hz

Power Factor

≥0.99

THDi

≤3% (100% linear load)

Bypass

Voltage Range

Upper limit: 380V+25% (+10%, +15%, +20%, settable); 400V+20% (+10%, +15%, settable);

415V+15% (+10%, settable);

Lower limit: -45% (-10%, -20%, -30%, settable)

Frequency Range

50/60Hz±10%

Output

Phase

3 Phase+Neutral+Ground

Rated Voltage

380/400/415Vac

Power Factor

1

Voltage Regulation

±1%

Output Frequency

Normal Mode: ±1%/±2%/±4%/±5%/±10%, settable; Battery Mode: 50/60Hz±0.1%

Crest Factor

3:1

THDu

≤2% with linear load; ≤4% with non-linear load

Overload

110% for 60 mins; 125% for 10 mins; 150% for 1 min; ＞150%, transfer to bypass

Battery

Rated Voltage

±240VDC

Charging Current

1-30A

1-40A

1-60A

1-80A

System

Efficiency

96%

Display

7-inch color touching screen

IP Class

IP20

Interface

USB, CAN, RS485, LBS(optional), Parallel card(optional), Relay card(optional), SNMP card (optional)

Temperature

Operation: 0-40℃; Storage: -25-55℃

Humidity

0-95% (non-condensing)

Altitude

＜1500m, within 1500-4000m, power derates 1% every 100m rise

Noise

＜62dB

Applicable Standard

Safety: IEC/EN 62040-1; EMC: IEC/EN 62040-2; Performance: IEC/EN 62040-3

Physical

Weight

200

205

290

340

Dimension

W*D*H(mm)

600*900*1150

600*900*1150

600*900*1550

600*900*1550
