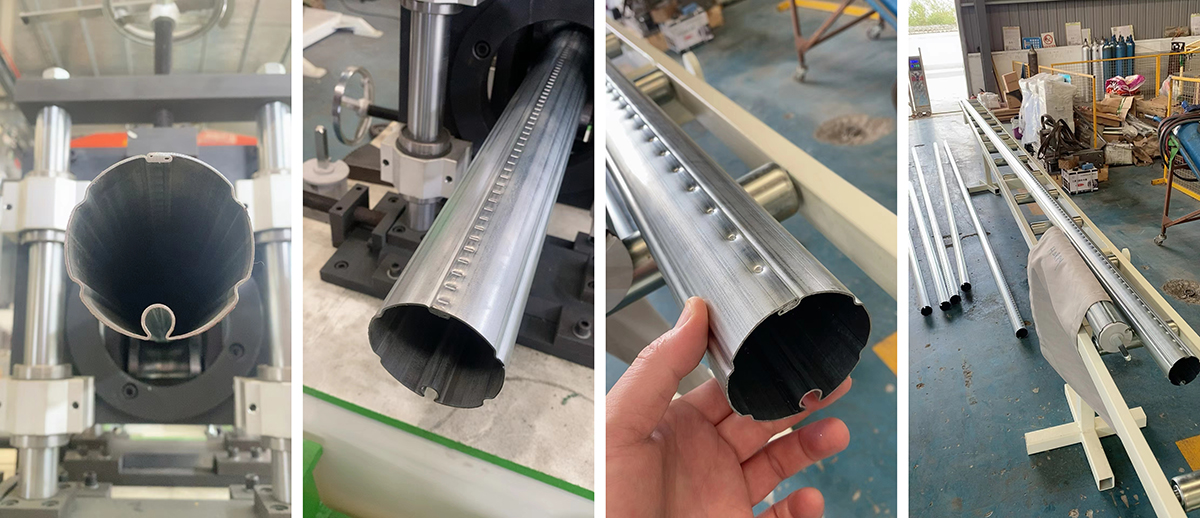

Awning tube forming machine
2 year ago
TECHNICAL PARAMETER AS FOLLOWING:
1、Running material: Galvanized steel 1.0mm ~1.2mm
2、Forming speed: 10m/min
3、Forming stands: 24
4、Roller material: GCr15、HRC60℃. diameter φ140、Maximal roller diameter:φ200
5、Material of shaft: #45 steel, China standard
6、Chain transmission system
7、Motor power: 7.5 KW; 380V; 50HZ/60HZ
8、Cut-off system: Flying saw no stop cutting. Automatic cutting
9、Fly saw cutting motor power : 4 KW
10、Control system: Brand of Delta; Touch screen is brand of Delta；Encoder is Omron brand; the Inverter is the Delta brand; others low voltage electric components are Schneider Germany
11. Overall Dimension: 13000mmX1000mmX900mm
12. Total weight: 11 ton approximately
