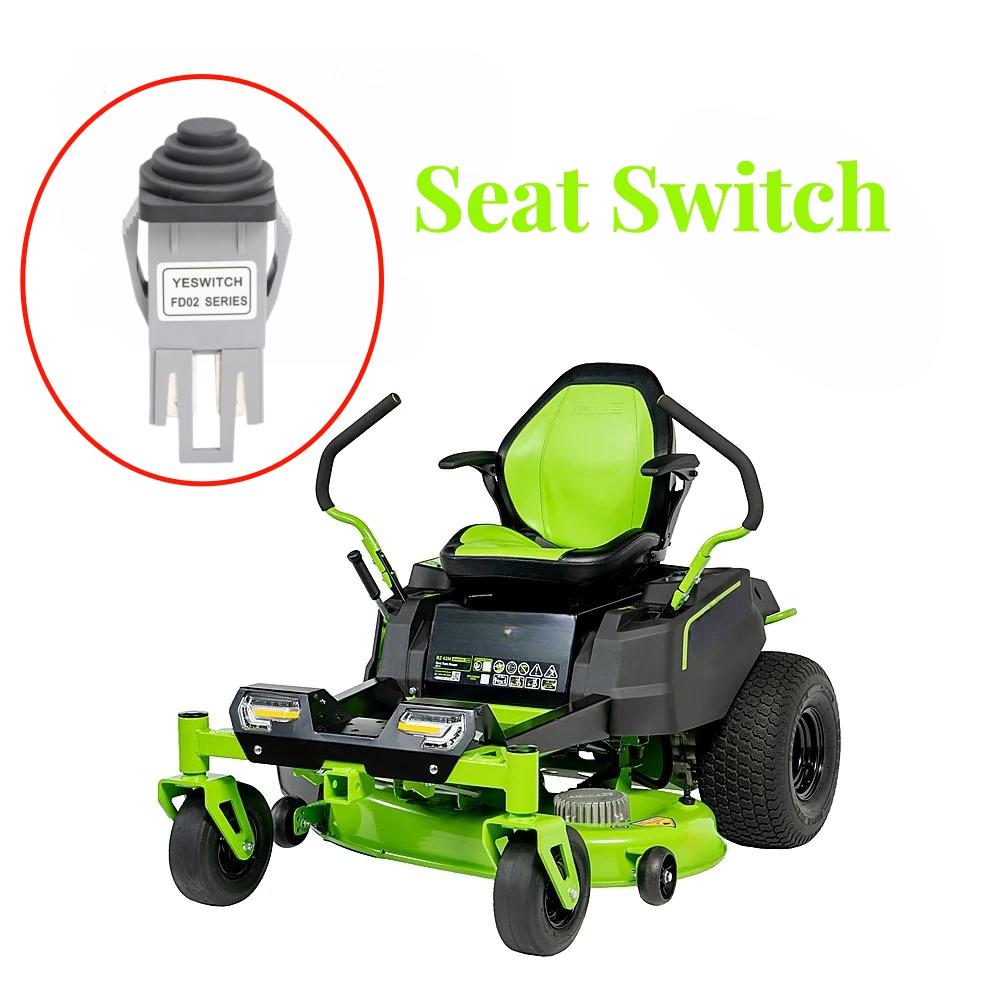

FD02 Series Riding Lawn Mower Momentary Plunger Safety Seat Switch

YESWITCH FD02 Plunger Safety Switch,With Two Position Four Terminals,Snap-in Type Momentary Plunger Seat Switches,Normally Open Normally Closed.YESWITCH has created a series of international high-end Interlock Plunger Safety Switch and Momentary Plunger Seat Switches, which make the lawn mower more intelligent and humane, and greatly improve the safety performance of the lawn mower, so as to avoid the lawn mower harming humans or small animals. Let the operator better experience the sense of movement and entertainment of working in the garden.

SPECIFICATION:

Model No. :FD02 Series

Housing : Nylon Gray

Plunger : PBT Gray

Case : Nylon Gray

Rating : DC 12V,3A

Contact Resistance : 100mΩ Max

Insulation Resistance :1000MΩ Min

Dielectric Strength : 1000Vrms Min

Operating Force : 2.0Kgf

Operating Temperature : -40ºC~+85ºC

Mechanical Life : 75,000 cycles

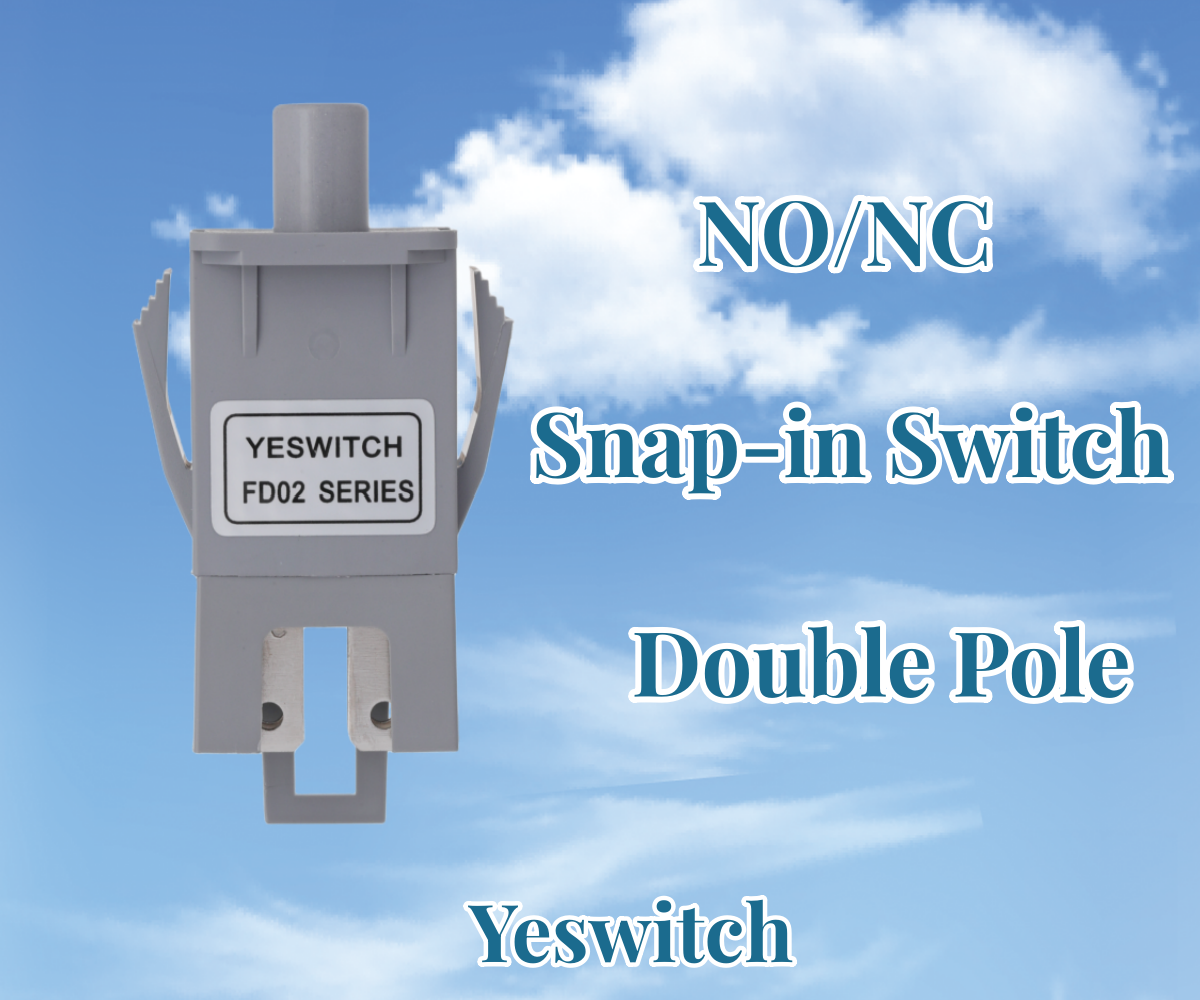

FD02 Plunger switch

plunger safety switch.

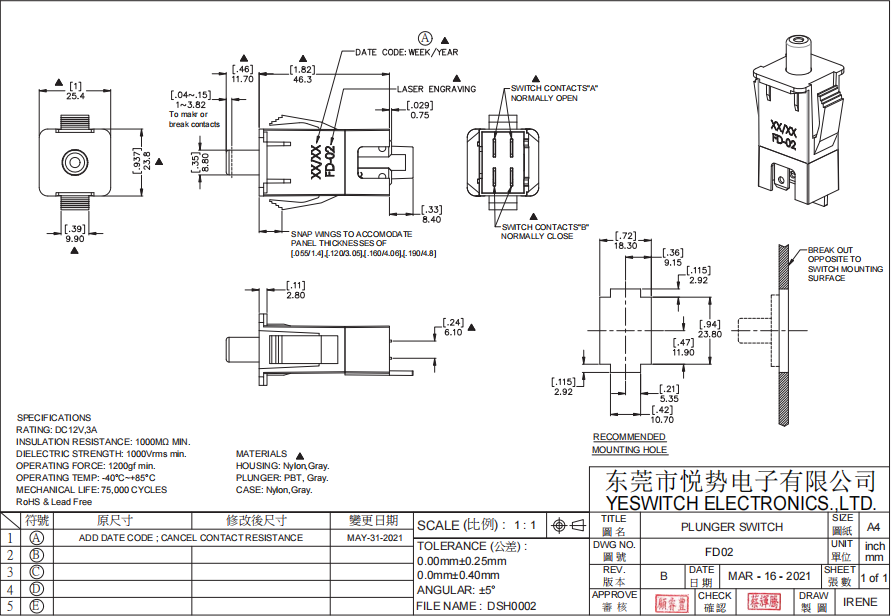

FD02 Drawing.
