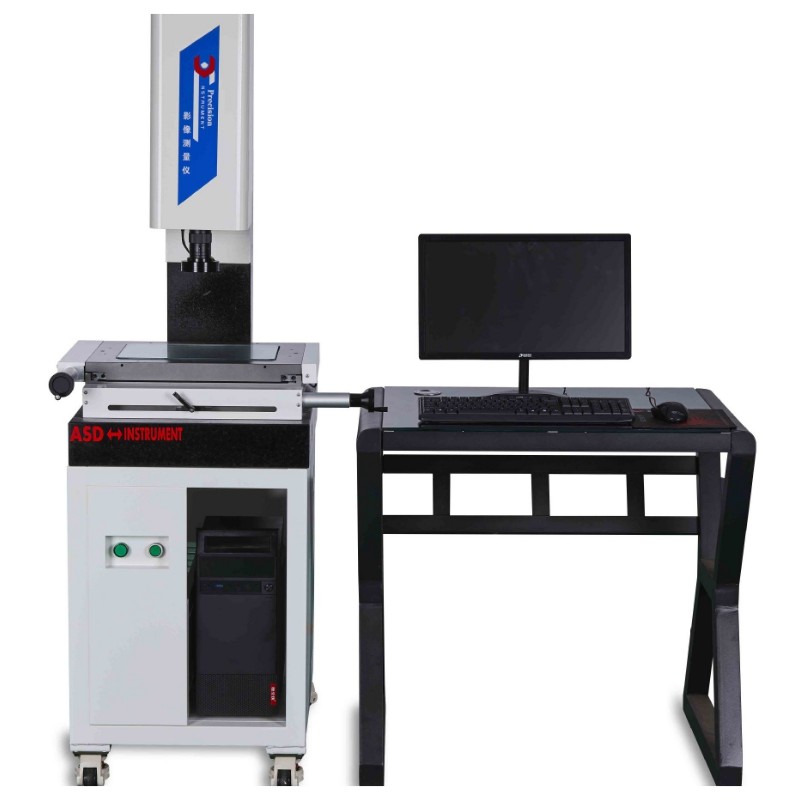

     The semi-automatic image measuring instrument means that the Z-axis can focus automatically: the software can automatically determine the focusing surface, ensure the accuracy of each focusing, reduce the error value caused by human factors, improve the reproducibility of focusing, make the image after focusing the most clear, further improve the accuracy of subsequent measurement, and can insert an automatic focusing program during the programming process, eliminate the possible series of error values of batch products, and enter the operating program.

     The image measuring instrument is built on the basis of CCD digital image, relying on the computer screen measurement technology and the powerful software capability of spatial geometry operation. After the computer is installed with special control and graphic measurement software, it becomes a measurement brain with software soul, and is the main body of the entire equipment. It can quickly read the displacement value of the optical ruler, and obtain the desired result instantaneously through software module operation based on space geometry; And graphics are generated on the screen for the operator to compare images and images, so that the possible deviation of measurement results can be visually distinguished.

Instrument characteristics

Color CCD camera is adopted;

The zoom objective lens and crosshair generator are used as the measuring and aiming system;

The digital measurement and data processing system is composed of a two-dimensional plane workbench, a grating ruler and a data box;

The instrument has a variety of data processing, display, input and output functions, especially the workpiece tilting function is very practical;

After connecting with the computer, special measurement software can be used to process the measurement graphics.

3D measurement function

1: It has all the functions of 2D optical measuring instrument!

2: Combined with MCP measuring needle, multiple CMM functions can be completed!

3: The fast edge tracking system can quickly complete the work of plane reading!

4: With the strong combination of CAD, more functions can be realized through this platform!

5: The scanning function of large area plane graphics can quickly complete the JPG image mode, which is called the map function in other software!
