bronze valve

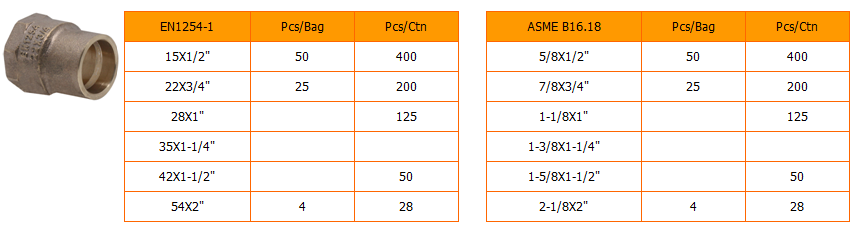

5 year agoSolder Ring Gunmetal Bronze Female Adapter Fittings
-
Description:Solder Ring Gunmetal Bronze Female Adapter Fittings,Low Lead & No Lead Cast Bronze Cast Fittings,Solder Connection Type
The Solder Ring Gunmetal Bronze Female Adapter Fittings has BSP (G) , BSPT, NPT threaded standard for the selection The bronze gunmetal fittings are all use sand mould to cast and the surface treatment is sand blast.We can produce according to the customer's metal grad.
Runde bronze fittings' quality is same as yorkshire bronze fittings ,pegler bronze fittings,connex bronze fittings,kembla bronze fittings.Our gunmetal fittings divied pre-solder bronze fittings and end feed bronze fittings.The solder ring gunmetal bronze female adapter fittings 's solder not only satisfy Sn99.3Cu0.7,but also the lead of the solder is 7 times lower than the standard.It it is surely no lead.
-
Production Standard:
1.EN1254-1:1998/BS864-2(Copper And Copper Alloys-Plumbing Fittings)
2.ANSI B16.18-1984 Cast Copper Alloy Solder Joint Pressure Fittings
3.ISO228-1 Pipe Threads Where Pressure-tight joints are not made on the threads
4.ISO 7-1(EN10226-1&2 R,Rp,Rc) Pipe threads where presssure-tight joints are made on the threads- Part 1:Dimensions,tolerances and designation
5.ASME B1.20.1 Pipe Threads,General Purpose(Inch)
-
Material:
Bronze Part:
1.CC491K(Cusnzn5pb5-C)(Cu 83-87% Ni≤2% P≤0.1% Pb≤6% Sn 4-6% Zn 4-6% Al≤0.01 Fe≤0.3% S ≤0.1% Sb≤0.25% Si≤0.01%)
2.CC499K(Cusnzn5pb2-C)(Cu 84-88% Ni≤0.6% P≤0.04% Pb≤3% Sn 4-6% Zn 4-6% Al≤0.01 As≤0.03% Bi≤0.02% Cd≤0.02% Cr≤0.02% Fe≤0.3% S ≤0.04% Sb≤0.01% Si≤0.01%)
3.C83600(CU84-86%,SN4-6%,PB4-6%,AL≤0.005% ,NI≤1% ,ZN4-6%,FE≤0.3%,S≤0.08% ,P≤0.02% ,SI≤0.005)
4.C84400(CU78-82%,SN2.3-3.5%,PB6-8%,7-10% ,AL≤0.005% ,FE≤0.4% ,NI+CO≤1%,SB≤0.25%,S≤0.08% ,SI≤0.005%,P≤0.02%)
5.C89844(No Lead)(CU83-86%,SN3-5%,PB0%,AL≤0% ,NI0% ,ZN7-10%,FE≤0.3%,S≤0.08%,P≤0.05% ,SI≤0.005,SB0.2%)
Solder Part:
Sn99.3Cu0.7(Sn balance Cu0.5-0.9% Al≤0.001% Fe≤0.02% Zn≤0.001% Pb≤0.07% Ni≤0.01% Cd≤0.002% As≤0.03% Sb≤0.1% Bi≤0.1% Ag≤0.1% In≤0.1% Au≤0.05%)
-
Application: Industrial or Residential Water and plumbing,drinking supply,cold and hot water supply, heating supply, fire protection,gas supply, industrial petroleum pipeline system etc.Suit Medium:Cold Water, Hot Water, Compressed Air, Gas, Oil Etc.
