sand casting bronze fittings

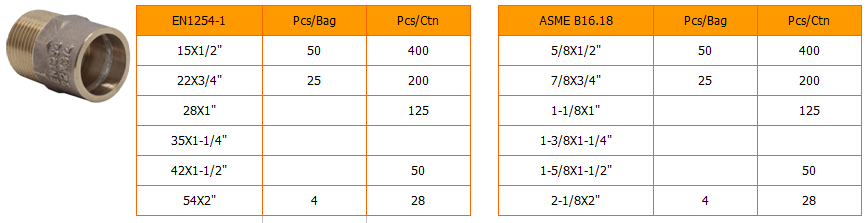

5 year agoSolder Ring Gunmetal Bronze Male Adapter Fittings
-
Description:Solder Ring Gunmetal Bronze Male Adapter Fittings,Low Lead & No Lead Cast Bronze Cast Fittings,Solder Connection Type
Runde hareware supply BSP (G) , BSPT, NPT threaded Gunmetal Bronze Male Adapter Connector.They are casting by sand mould and threading by CNC.and other secondary operations of the Bronze Fittings .For examples the surface treatment of sand blast.
Runde bronze fittings' quality is same as yorkshire bronze fittings ,pegler bronze fittings,connex bronze fittings,kembla bronze fittings.Our Gunmetal fittings‘thread meet ISO228 and 7-1 as well as ASME B1.20.1.And the pre-solder bronze fittings of solder ring gunmetal bronze male adapter fittings is satisfy the Sn99.7Cu0.7 too.
-
Production Standard:
1.EN1254-1:1998/BS864-2(Copper And Copper Alloys-Plumbing Fittings)
2.ANSI B16.18-1984 Cast Copper Alloy Solder Joint Pressure Fittings
3.ISO228-1 Pipe Threads Where Pressure-tight joints are not made on the threads
4.ISO 7-1(EN10226-1&2 R,Rp,Rc) Pipe threads where presssure-tight joints are made on the threads- Part 1:Dimensions,tolerances and designation
5.ASME B1.20.1 Pipe Threads,General Purpose(Inch)
-
Material:
Bronze Part:
1.CC491K(Cusnzn5pb5-C)(Cu 83-87% Ni≤2% P≤0.1% Pb≤6% Sn 4-6% Zn 4-6% Al≤0.01 Fe≤0.3% S ≤0.1% Sb≤0.25% Si≤0.01%)
2.CC499K(Cusnzn5pb2-C)(Cu 84-88% Ni≤0.6% P≤0.04% Pb≤3% Sn 4-6% Zn 4-6% Al≤0.01 As≤0.03% Bi≤0.02% Cd≤0.02% Cr≤0.02% Fe≤0.3% S ≤0.04% Sb≤0.01% Si≤0.01%)
3.C83600(CU84-86%,SN4-6%,PB4-6%,AL≤0.005% ,NI≤1% ,ZN4-6%,FE≤0.3%,S≤0.08% ,P≤0.02% ,SI≤0.005)
4.C84400(CU78-82%,SN2.3-3.5%,PB6-8%,7-10% ,AL≤0.005% ,FE≤0.4% ,NI+CO≤1%,SB≤0.25%,S≤0.08% ,SI≤0.005%,P≤0.02%)
5.C89844(No Lead)(CU83-86%,SN3-5%,PB0%,AL≤0% ,NI0% ,ZN7-10%,FE≤0.3%,S≤0.08%,P≤0.05% ,SI≤0.005,SB0.2%)
Solder Part:
Sn99.3Cu0.7(Sn balance Cu0.5-0.9% Al≤0.001% Fe≤0.02% Zn≤0.001% Pb≤0.07% Ni≤0.01% Cd≤0.002% As≤0.03% Sb≤0.1% Bi≤0.1% Ag≤0.1% In≤0.1% Au≤0.05%)
-
Application: Industrial or Residential Water and plumbing,drinking supply,cold and hot water supply, heating supply, fire protection,gas supply, industrial petroleum pipeline system etc.Suit Medium:Cold Water, Hot Water, Compressed Air, Gas, Oil Etc.
