Roll to roll pad printer

Silk printing machine, foil stamping machine, Flexible printing machine, concave printing machine , convex printing on the printing Roll materials has a mature solution, and the pad printing machine is the latest craft practice.
Pad printing machine is an indirect concave printing process. It effectively transferred the pattern on the steel plate to the surface of the product. When the product is continuously containing the materials, it is necessary to solve the problem of the transmission of roll materials. Theoretically, It is said that the structure of other roll printing processes can be applied to the pad printer. For example, pre -seal treatment, correction, tension control, cover tracking, dry ink, etc.
The roll materials that can be applied at present are continuously expanding. I believe that this process with printed small -area products will gradually become a new highlight.

Roll to roll automatic pad printer
Working table type	Vacuum workbench
Ink supply system	Open ink tray
Standard plate type and size	10mm Thickness steel plate, 150*150mm.
Max roll width	100mm
Colour Number	1
Rubber pad of dropping controll	Simple-cylinder drive
Usage	Roll film, roll ribbon, roll paper, electric line

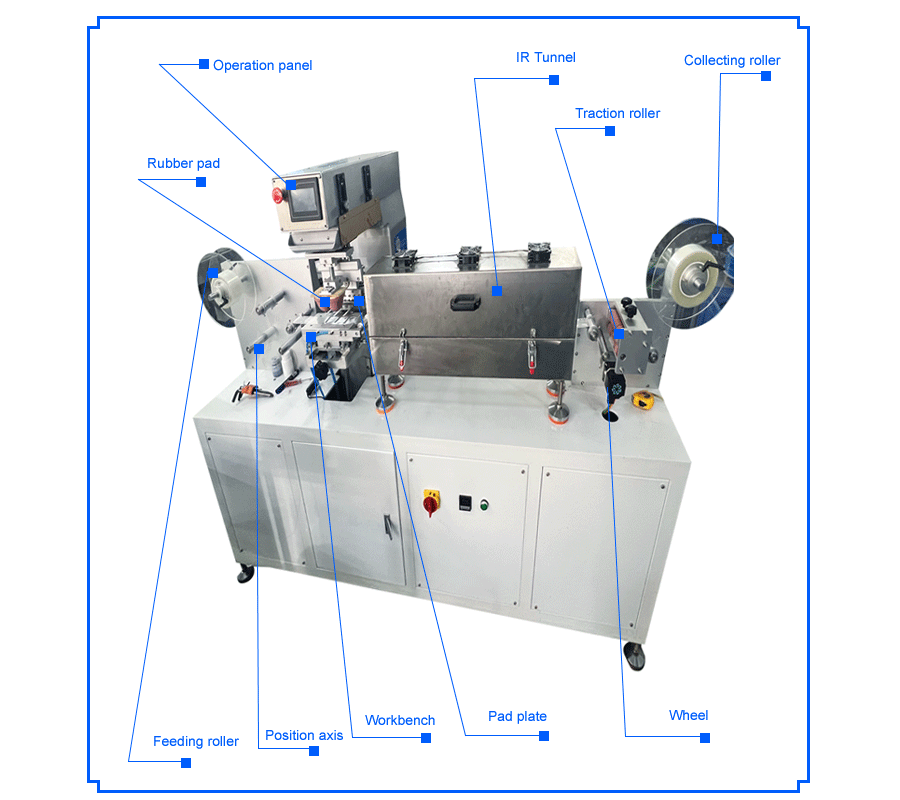

Structure

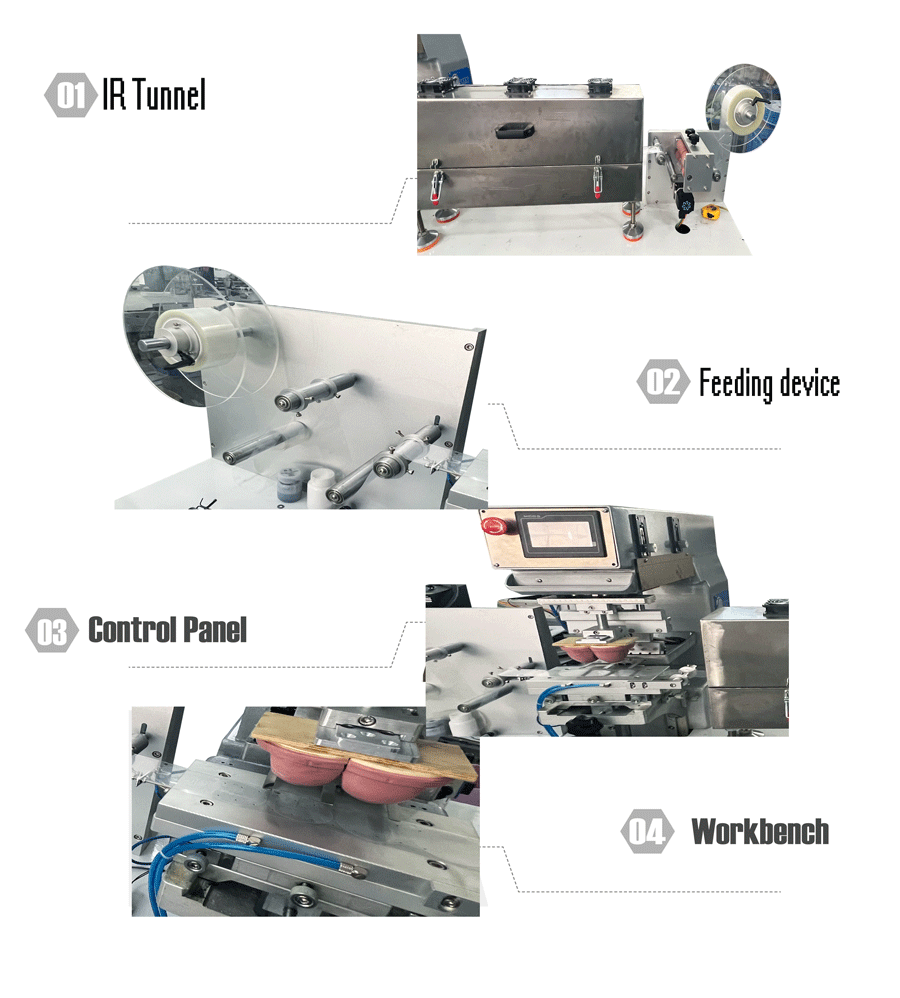

Details

This is a pad printer designed for roll-to-roll materials:

Roll-to-roll printing

• This method is suitable for continuous material printing. Materials such as plastic film and paper labels can be fed in roll form and automatically transferred during the printing process, which improves printing efficiency and enables large-scale, continuous production operations.

Monochrome printing

• Although it is monochrome, it is very practical for some plastic film and paper label printing that do not require high color or specific monochrome designs (such as safety signs that only use a single eye-catching color), and monochrome printing is easier to control in terms of color accuracy and consistency.

Touch screen operation panel

• Intuitive and convenient, the operator can complete various parameter settings such as printing speed, temperature (if related to heating and drying), tension control parameters, etc. by touching the screen. It can display the operating status of the equipment, including fault alarm information, so that users can adjust and maintain the equipment in time.

IR tunnel oven

• IR (infrared) tunnel ovens are mainly used for drying after printing. It uses infrared radiation heating to quickly and effectively dry ink, and the heating is uniform, which helps to improve printing quality and reduce problems such as smudges and fading caused by ink not drying. It is an ideal drying method for materials such as plastic film and paper labels that require high drying speed and quality.

Automatic tension control

• It can accurately control the tension of the material during the transmission process, ensure the flatness and stability of plastic film and paper labels during feeding, printing and receiving, avoid material stretching or wrinkling, and ensure the accuracy and quality of the printed pattern.

Automatic positioning

• It can accurately determine the printing position, which is crucial for materials such as plastic film and paper labels that require precise pattern layout. It can ensure that the pattern position is consistent each time it is printed, which is conducive to improving the consistency and aesthetics of the product.
