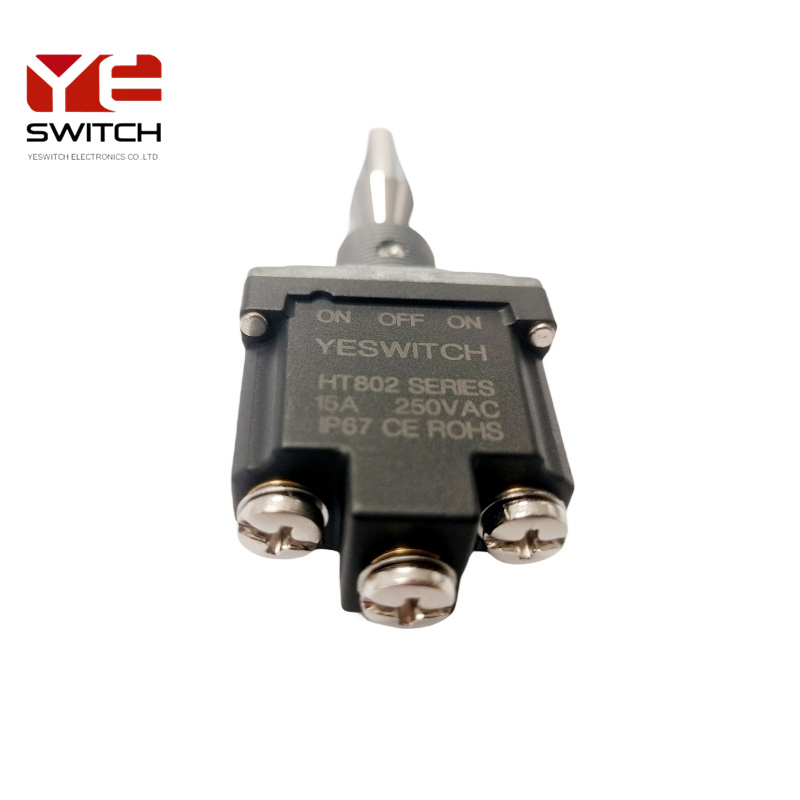

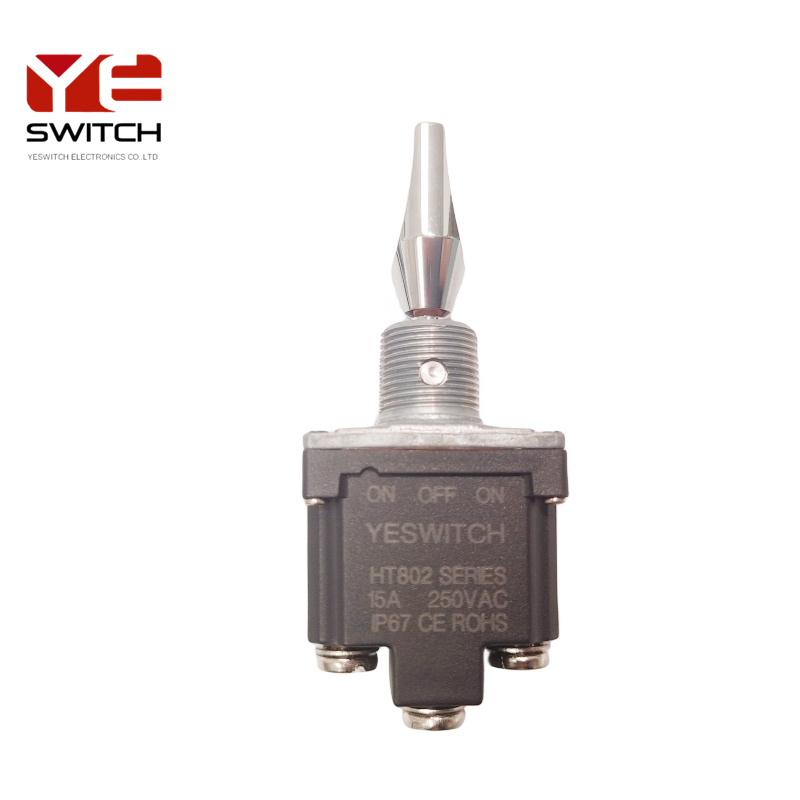

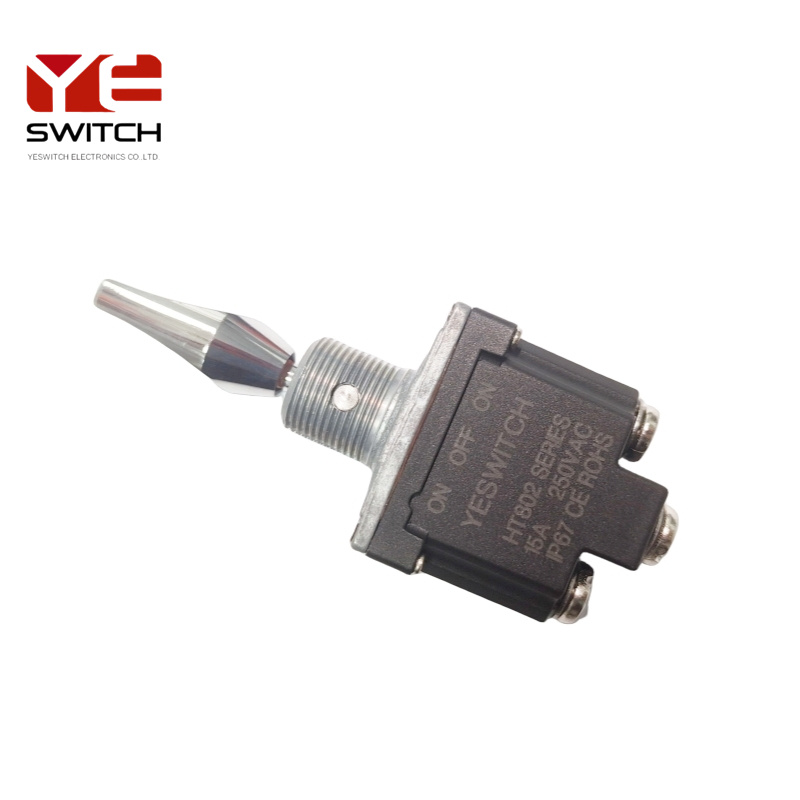

Toggle Switch ON-OFF-ON
2 year ago
This industrial toggle switch meets harsh environment applications toggle switch. Premium structural features include molded elastomer seals between elbow and bushing and between cover and housing. In addition, the toggle switches terminal plug-in is molded into a thermoplastic housing with high impact strength.
These high current toggle switches can be used where the panel is subject to periodic splattering and flushing, such as is common in construction equipment. The waterproof toggle switch can also withstand the large accumulation of early morning dew that can condense on the control panels of the cab of a vehicle that has spent the night outside.
Industrial Application:
Used in crane remote controls, aerial work vehicle controllers, joysticks, and industrial controllers.
SPECIFICATION:
CONTACT RESISTANCE: 20m0(Max)
INSULATION RESISTANCE: 100VDC-100MQ.(Min)
DIELECTRIC STRENGTH: 1500VAC-1MINUTE
MECHANICAL LIFE CYCLE: 100,000 CYCLES
OPERATING TEMPERATURE: -40 TO +85C
FRONT SEAL: IP 68.
RATING:
RESISTIVE LOAD: 15A 125/250VAC,15A 28VDC.
INDUCTIVE LOAD:15A 28VDC.
