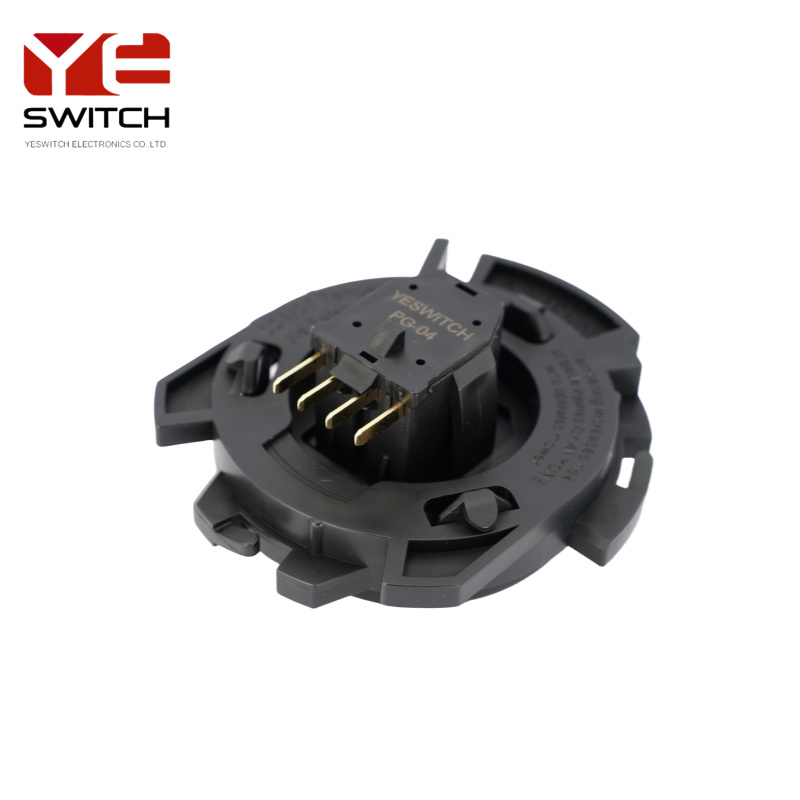

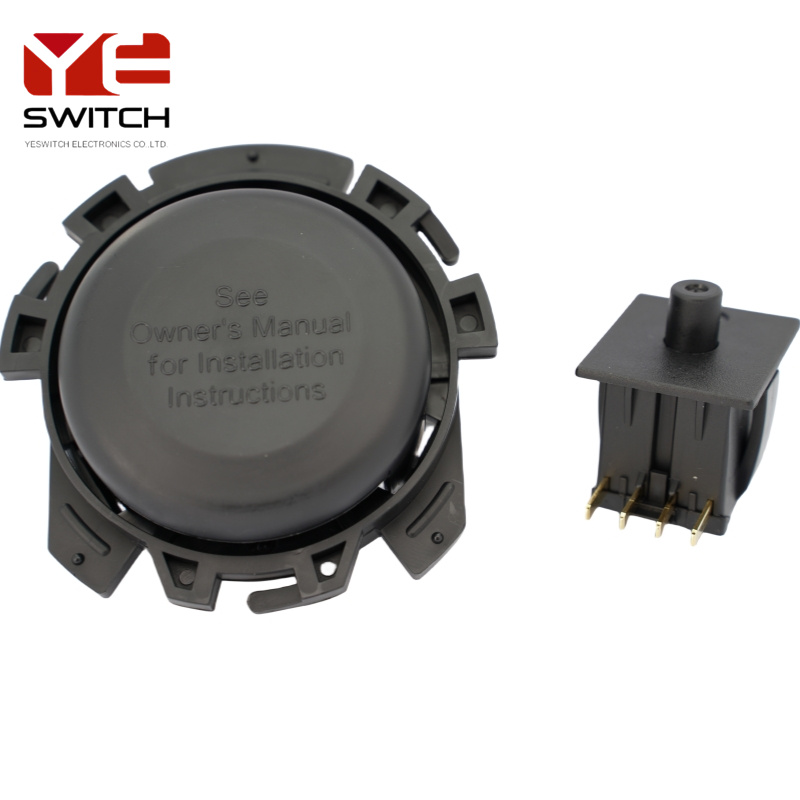

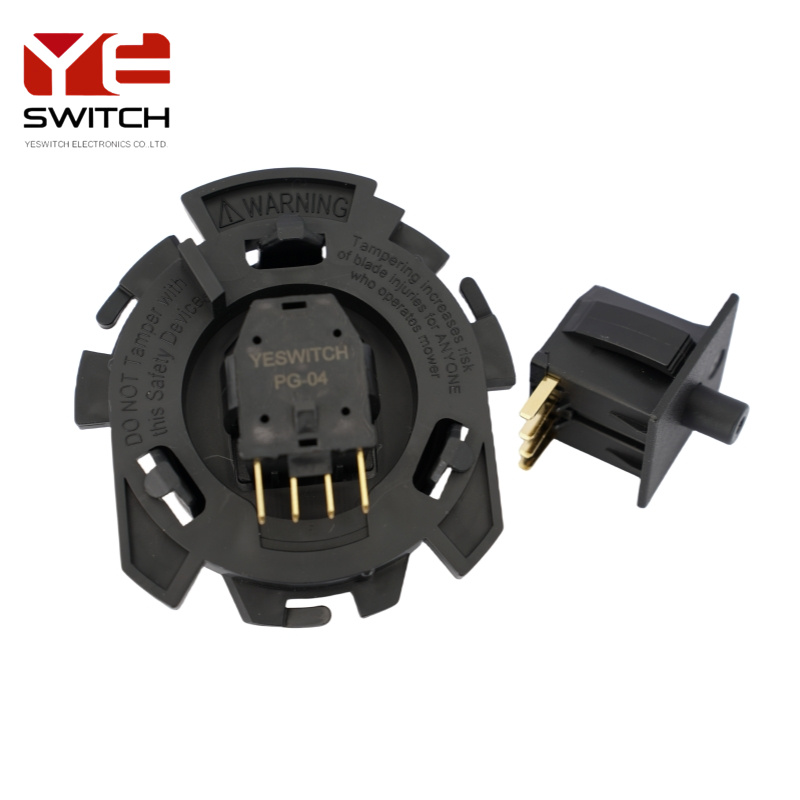

YESWITCH PG-04 Plunger Seat Safety Momentary Push Button Switch For Riding Mower

The most advanced Riding Mower Interlock Plunger Safety Switch, while working in the garden, you can also relax and bring fun in the work. YESWITCH PG-04 Series Plunger Seat Safety Switch not only ensures the safety of operation, but also Plunger Safety Switch excellent electrical performance makes the riding mower more stable and efficient in the work.

The blade uses the high-speed rotation output speed of the engine to greatly improve, saving the working time of weeding workers and reducing a lot of human resources. In the highly developed country of animal husbandry mechanization, the research of new mowers is developing in the direction of high speed and energy saving.

Specification:

• Operating Pressure：1600gf±300gf
• Operating Stroke:9.5mm±1.0
• Function：(ON)-OFF Momentary
• Body:PP,UL rated:94V-2 Black
• Plunger:PP,UL rated:94V-2 Gray
• Terminal:Brass,Gold plate
• Rating:3A 18V DC
• Contact Resistance:50mΩMAX
• Insulation Resistance:100mΩMIN
• Dielectric Strength:1500VAC 1 minute
• Electrical life:10,000 cycles
• Mechanical life:75,000 cycles
• Operating Temperature:-30℃∽80℃
• Relative Air Humidity:45%∽85%

PG-04 CAP MATERIAL:

• FRAME:PP Black ULrated:94V-2 min
• CAP:PP Black.UL rated:94V-2 min
• SWITCH:PP Black UL rated:94V-2 min
• PLUGER:PP Black UL rated:94V-2 min
• Terminal:Brass,Gold plated
• Function:(ON)-OFF
• Contact Resistance: 50mQ Max
• Insulation Resistance: DC 500V 100MQ Min
• Dielectric Strength: 1500VAC 10mA of 1minute
• Dlectrical life: 10,000 cvcles
• Mechanical life :75.000 cycles
• Operating Temperature: -30C~80C
