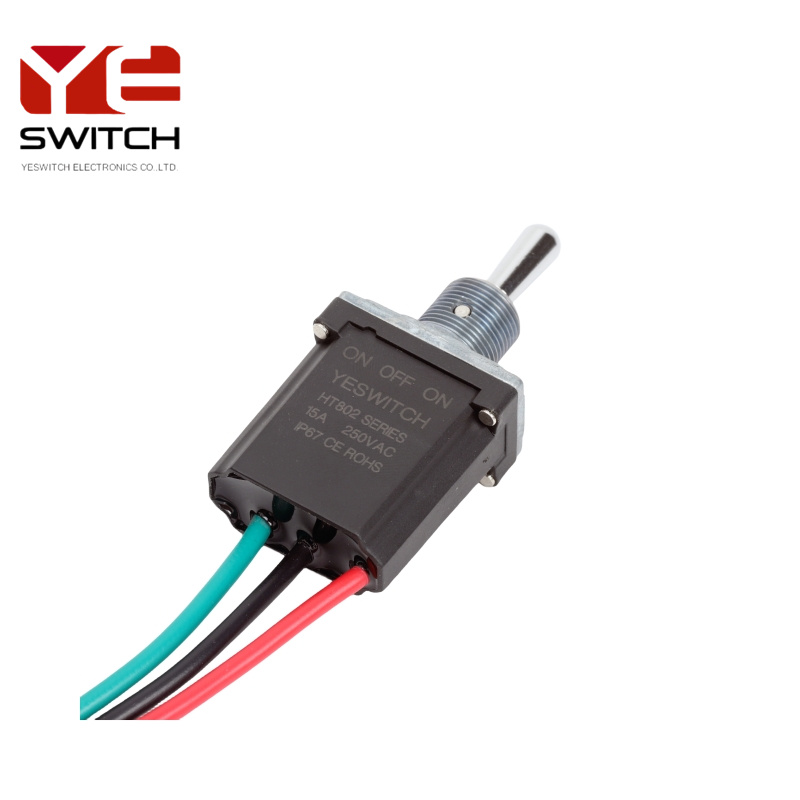

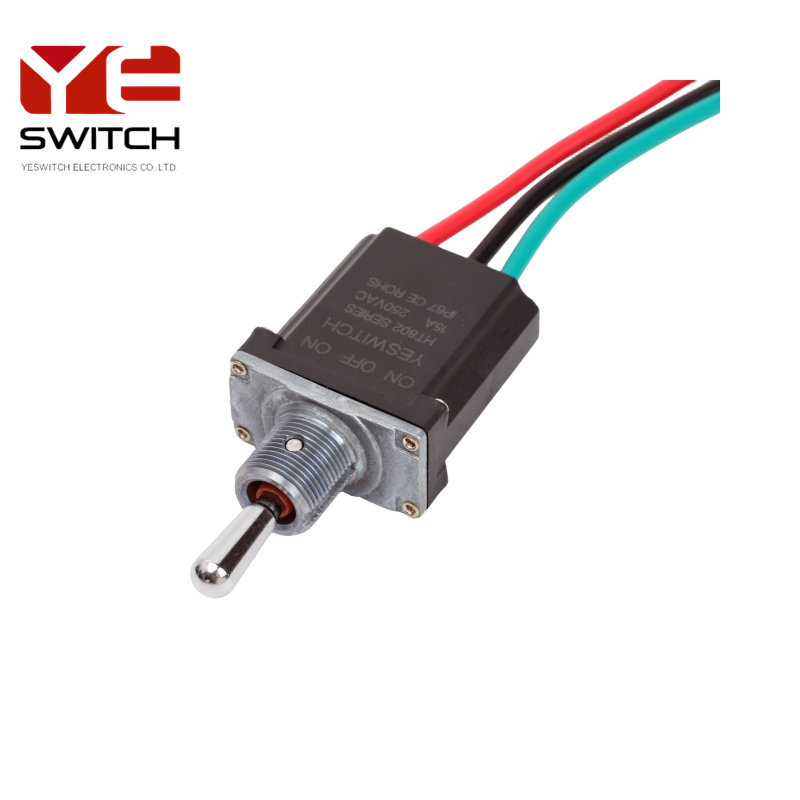

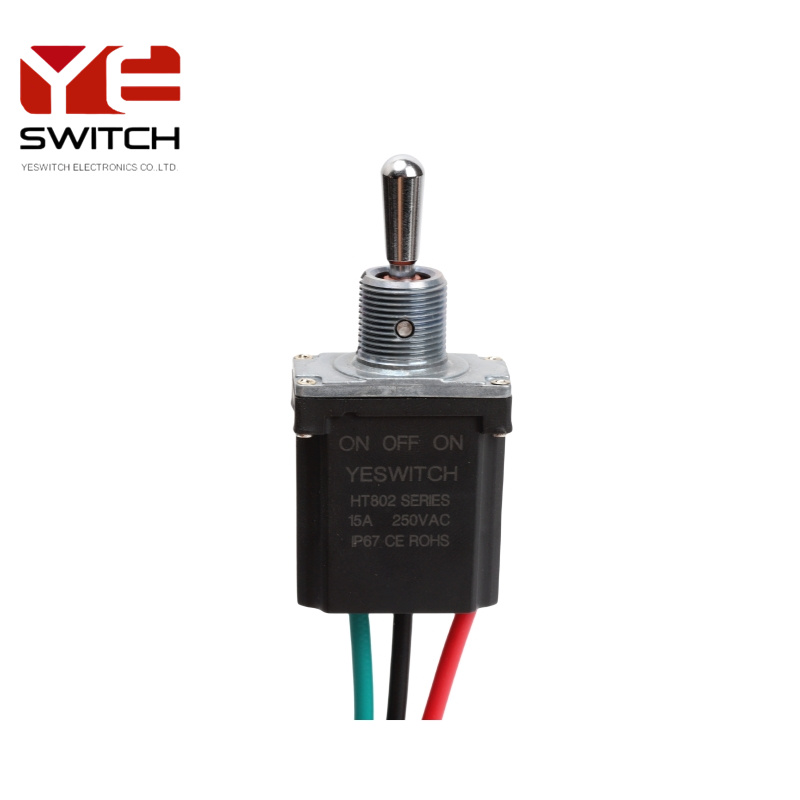

HT802 Series Joysticks Toggle Switch
2 year ago
Aerial work vehicle controllers Heavy machinery waterproof Industrial toggle switches
IP68 High Current toggle switch with increased contact capacity and 15A strong load strength. The vibrating handle with silicone molding achieves full waterproofing without the need for an additional waterproof cap. Mechanical life: 100,000 cycles.

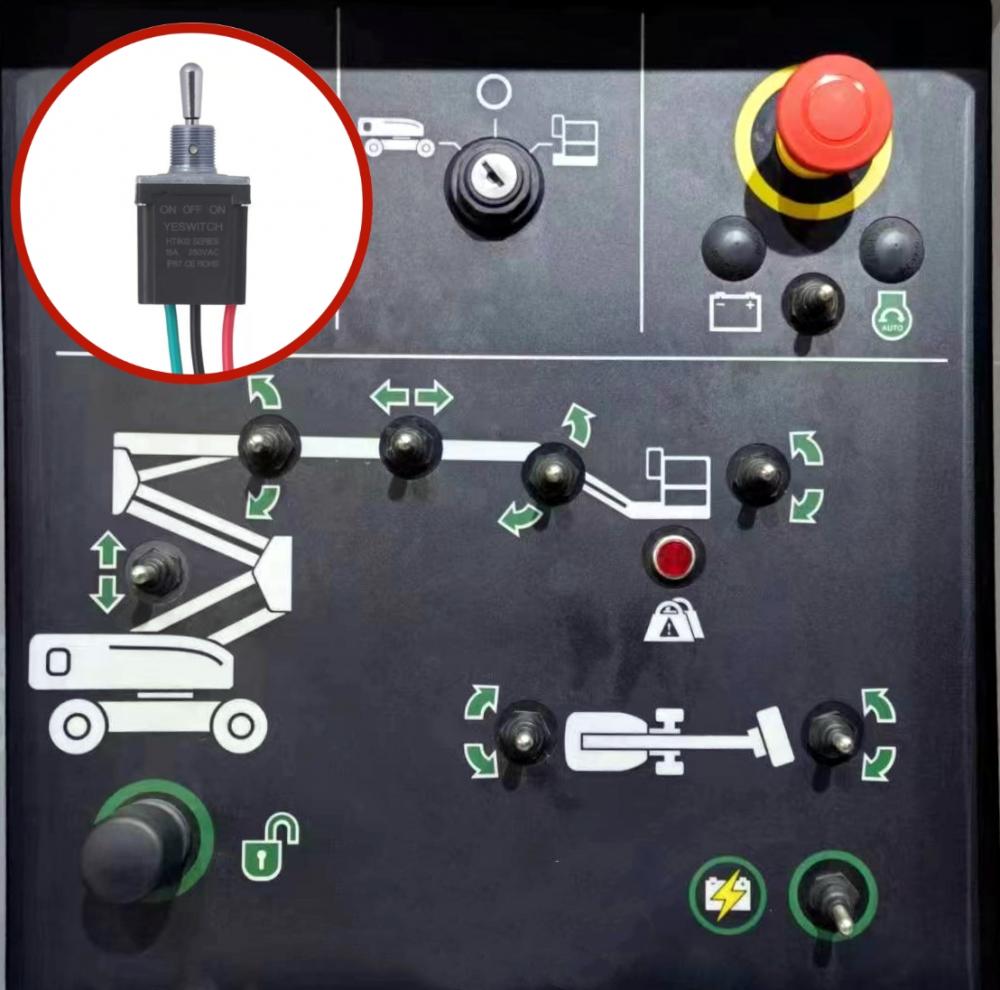

The IP68 toggle switch terminals are available with soldered wires and quick connections.The waterproof toggle switch is widely used in crane remote control, aerial work vehicle controllers, joysticks, industrial controllers.
SPECIFICATIONS：
CONTACT RESISTANCE: 20m0(Max)
INSULATION RESISTANCE: 100VDC-100MQ.(Min)
DIELECTRIC STRENGTH: 1500VAC-1MINUTE
MECHANICAL LIFE CYCLE: 100,000 CYCLES
OPERATING TEMPERATURE: -40 + 85 Degree
FRONT SEAL: IP 68.
RATING:
RESISTIVE LOAD: 15A 125/250VAC，15A 28VDC.
INDUCTIVE LOAD:15A 28VDC.
MATERIAL:
ACTUATOR: COPPER ALLOY
HOUSING:NYLON (UL94V-0)
BUSHING:ZINC ALLOY
TERMINAL:WIRE
O-RING:SILICONE RUBBER
SHEEL:STAINLESS STELL
Feature:
Copper Alloy contact for increased application flexibility
High strength for durability in tough conditions
Temperature resistant materials to enhance performance in challenging environments
APPLICATION：
Industrial machinery and equipment, military and commercial aviation, construction equipment, test instruments, agricultural machinery, process control, medical instrumentation
