G3.0 Modular Trailer Specification
Our G3.0 modular trailers all meet your needs. With an advanced modular design, our trailers offer outstanding flexibility and customizability, allowing them to be tailored to your specific requirements. Whether you're traveling long distances or transporting cargo, our G3.0 modular trailers provide you with superior performance and reliability. Browse our website to learn more about the specifications of the G3.0 modular trailer and let us help you find the trailer solution that best fits your needs. We have been in the heavy haul industry for over 18 years, and with regards to the windmill Blade Trailer, we have had a 100% repurchase rate this year from repeat customers purchasing this model.

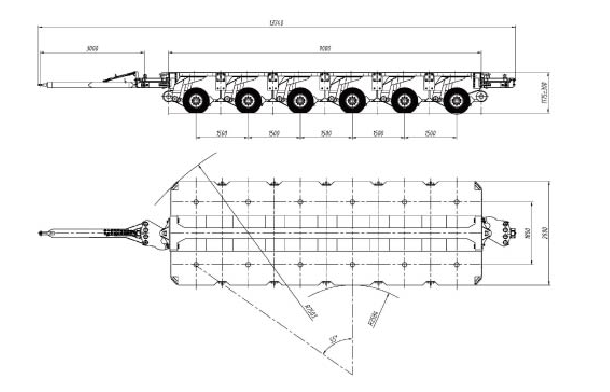

The design drawings are shown below:
|
Wheel base(mm) |
1500 |
|
Tread(mm) |
740/1800 |
|
Tyre quantity per axle line |
8 |
|
Tyre specification |
215/75R 17.5(7.50R15) |
|
Rim specification |
6.00-17.5(6.00G-15) |
|
Max. Total load per axle line (ton) |
36 |
|
Dead weight per axle line (Approx.)(ton) |
3.5 |
|
Approaching angle |
25° |
|
Departure angle |
28° |
|
Min. ground clearance |
148(when platform height 1175mm) |
|
Platform width(mm) |
2990(2files), 4890(3files), 6290(4files) |
|
Platform height(full load)(mm) |
1175±300 |
|
Platform min. height(mm) |
875 |
|
Towing rack height(mm) |
810(when platform height 1175mm) |
|
Steering mechanism |
Hydraulic towing or controlled steering |
|
Suspension |
Hydraulic suspension |
|
Support pattern |
3 or 4 point support |
|
Brake system |
Dual pipeline control, dual shoe brake |
|
Frame pattern |
Flatbed |
|
Module speed(empty load)(km/h) |
50 |
|
Platform lifting stroke(mm) |
600 |
|
Max. steering angle |
55° |
|
Axle line no./module |
2-7 |
|
Payload per axle line(ton)(approx.) |
30 22.5 15 |
|
Speed (km/h) |
5 18 40 |
|
Remark |
Slewing bearing, strengthened frame, compatible with German trailer.
|
