Toggle Switch

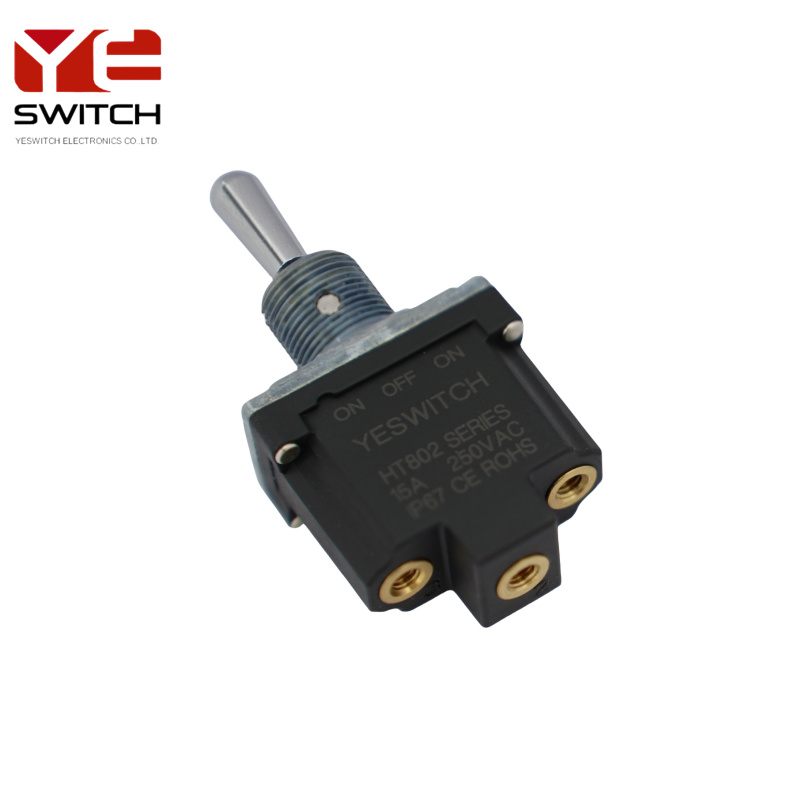

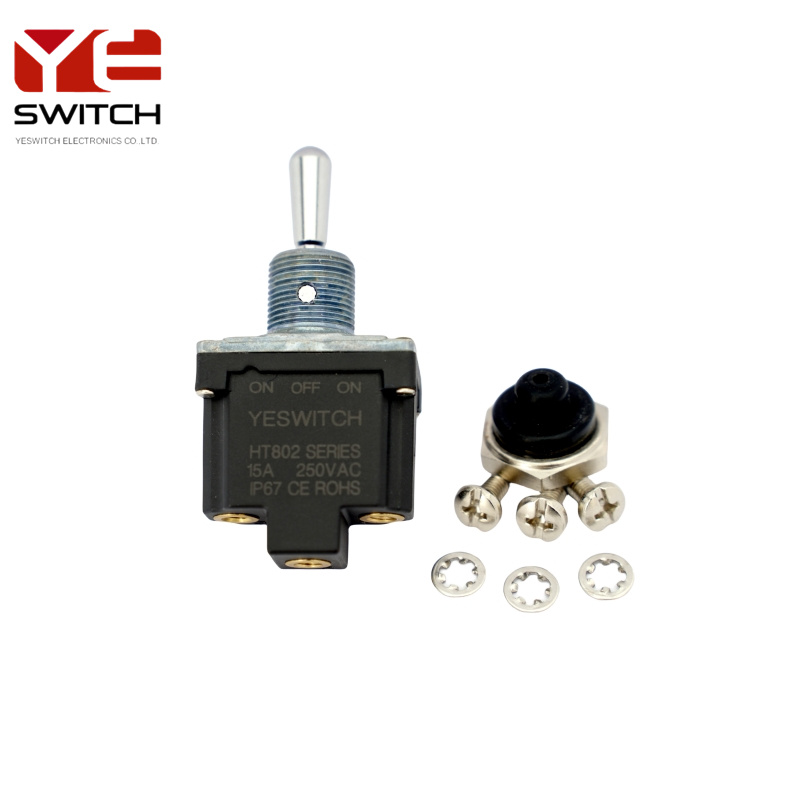

HT802 Series IP68 SPDT ON-OFF-ON Electric Lift Rocker Toggle Switch

In order to keep aerial lifts functioning properly, it is smart to upgrade the toggle switch, or simply replace damaged components with new ones. YESWITCH company offers an extensive selection of replacement toggle switches for all brands and types of lift equipment, including JLG. Additionally, all our waterproof toggle switch meet military specifications and are designed for the harshest of environments. The HT802 Series Toggle Switchees are fully sealed, waterproof, able to resist shocks and vibrations, and fully plated to resist corrosion. The HT802 Series IP68 toggle switch is also easy to install and ready for immediate use.

SPECIFICATIONS：

CONTACT RESISTANCE: 20m0(Max)

INSULATION RESISTANCE: 100VDC-100MQ.(Min)

DIELECTRIC STRENGTH: 1500VAC-1MINUTE

MECHANICAL LIFE CYCLE: 100,000 CYCLES

OPERATING TEMPERATURE: -40 + 85 Degree

FRONT SEAL: IP 68.

RATING:

RESISTIVE LOAD: 15A 125/250VAC，15A 28VDC.

INDUCTIVE LOAD:15A 28VDC.

MATERIAL:

ACTUATOR: COPPER ALLOY

HOUSING:NYLON (UL94V-0)

BUSHING:ZINC ALLOY

TERMINAL:COPPER ALLOY

CONTACT:COPPER ALLOY

O-RING:SILICONE RUBBER

SHEEL:STAINLESS STELL

Feature:

Copper Alloy contact for increased application flexibility

High strength for durability in tough conditions

Temperature resistant materials to enhance performance in challenging environments

APPLICATION：

Industrial machinery and equipment, military and commercial aviation, construction equipment, test instruments, agricultural machinery, process control, medical instrumentation
