Product details

Overview

Products Description

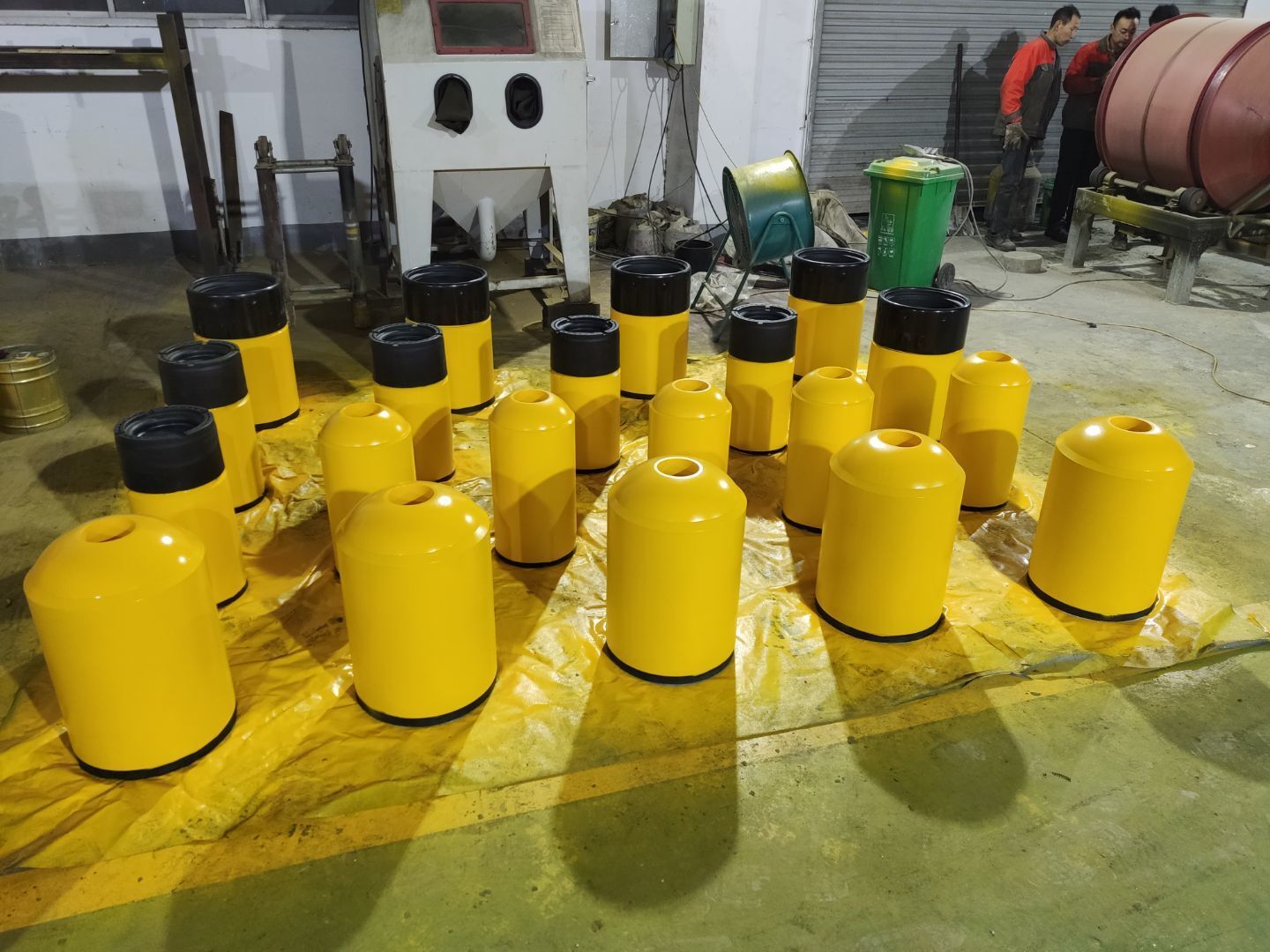

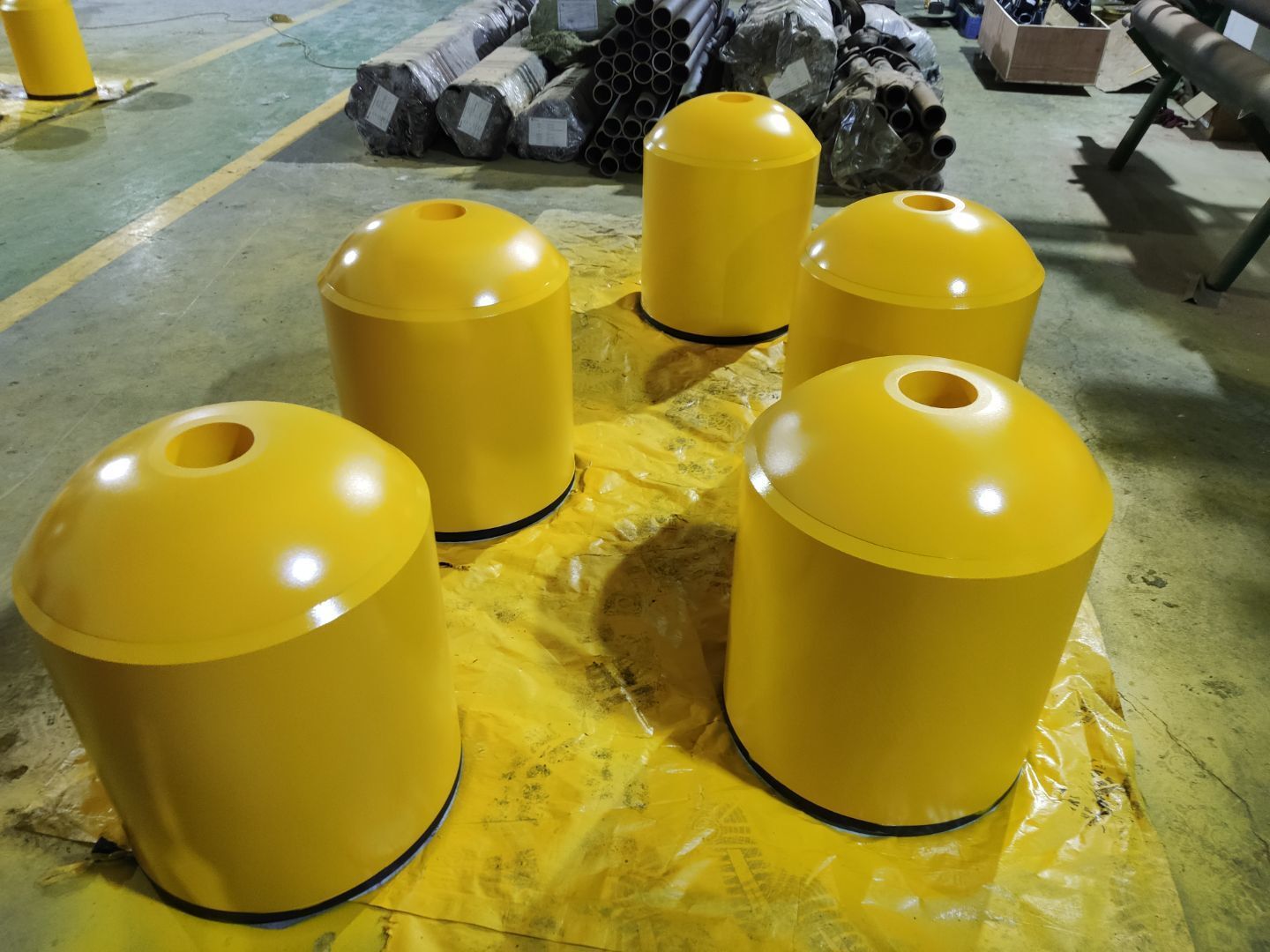

Float Collar & Float Shoe serves as the backbone of casing equipment used during primary cementing operations. It guides the casing to total depth and prevents contaminated mud from entering the casing. Also it provides a landing point for casing wiper plugs, reinforces the lower end of the casing string, and ensures greater accuracy of cement slurry displacement.

Main Features

Types Available: Single valve and double valve are available;

Spring structure valve and ball strucuture valve are available;

Insert type and normal type are available.

Non-rotating type and normal type are available.

Type: Stab-in Type Float Collar & Float Shoe

API and ISO certified

Specifications: 4''---20''. More special sizes or combination are available as requested.

Connections Type: LTC, STC, BTC

Specification

Size		Casing		Back pressure rating
in	mm	lb/ft	mm	MPa
4-1/2	114.3	9.50-15.10	5.21-8.56	35
5	127	13.00-21.40	6.43-11.10	35
5-1/2	139.7	14.00-26.80	6.20-12.70	35
6-5/8	168.3	20.00-32.00	7.32-12.06	35
7	177.8	20.00-38.00	6.91-13.72	35
7-5/8	193.7	26.40-47.10	8.33-15.68	35
8-5/8	219.1	24.00-49.00	6.71-14.15	35
9-5/8	244.5	32.30-58.40	7.92-15.11	35
10-3/4	273.1	32.75-73.2	7.09-17.07	35
11-3/4	298.5	42.00-71.00	8.46-14.78	35
13-3/8	339.7	48.00-72.00	8.38-13.06	28
16	406.4	65.00-109.00	9.52-16.66	21
18-5/8	473.1	87.5	11.05	14
20	508	94.00-133.00	11.13-16.13	14

Ensure Successful Well Construction with API Certified Float Shoes and Float Collars

Cementing Accessories, Casing Centralizer, Pressure Vessels, Cementing Tool, Pumping Units, Centralizers, Accessories, Sucker Rod
